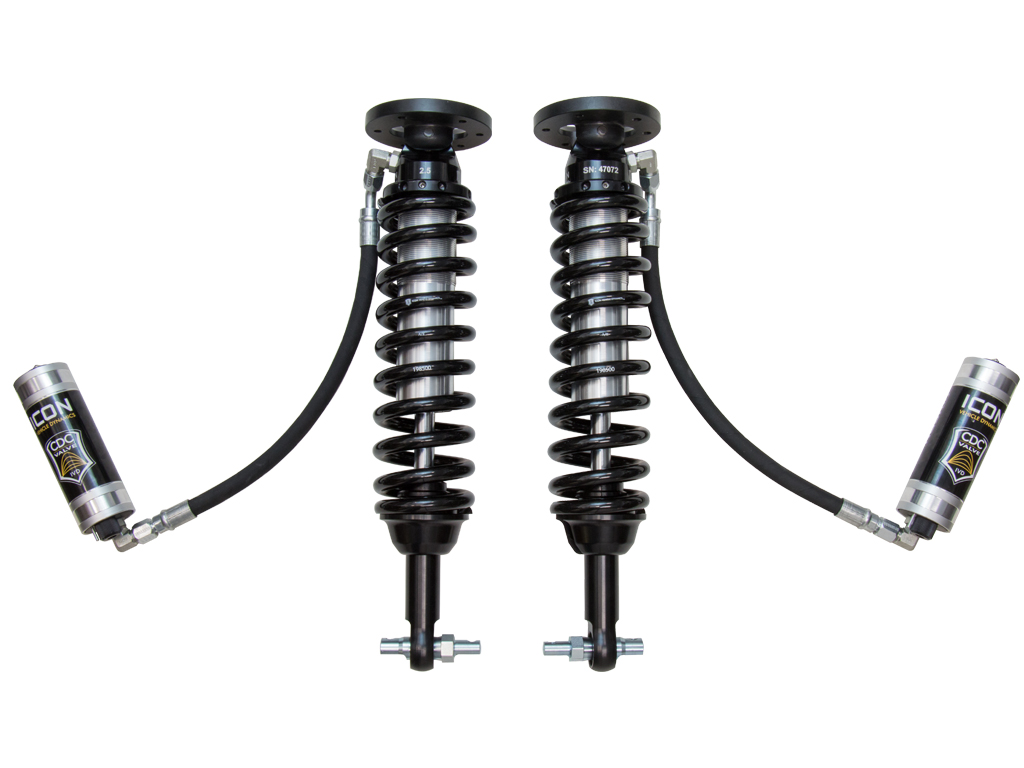

ICON Vehicle Dynamics 91811C 2015 F150 4wd 2-2.63" 2.5 Vs Rr Cdcv Coilover Kit

Manufacturer

Part Number

91811C

10 reviews

Sale Price

$2,299.95

3 left at this price

Usually delivered within 2 days

FREE SHIPPING

Select Your Vehicle:

Add To Cart

Check out with

No Hassle Returns

Live-in-stock inventory

Fitment guaranteed

Show details for ICON Vehicle Dynamics 91811C 2015 F150 4wd 2-2.63" 2.5 Vs Rr Cdcv Coilover Kit

Picture of ICON Vehicle Dynamics 91811C 2015 F150 4wd 2-2.63" 2.5 Vs Rr Cdcv Coilover Kit

Product Details

ICON Vehicle Dynamics 91811C 2015 F150 4wd 2-2.63" 2.5 Vs Rr Cdcv Coilover Kit

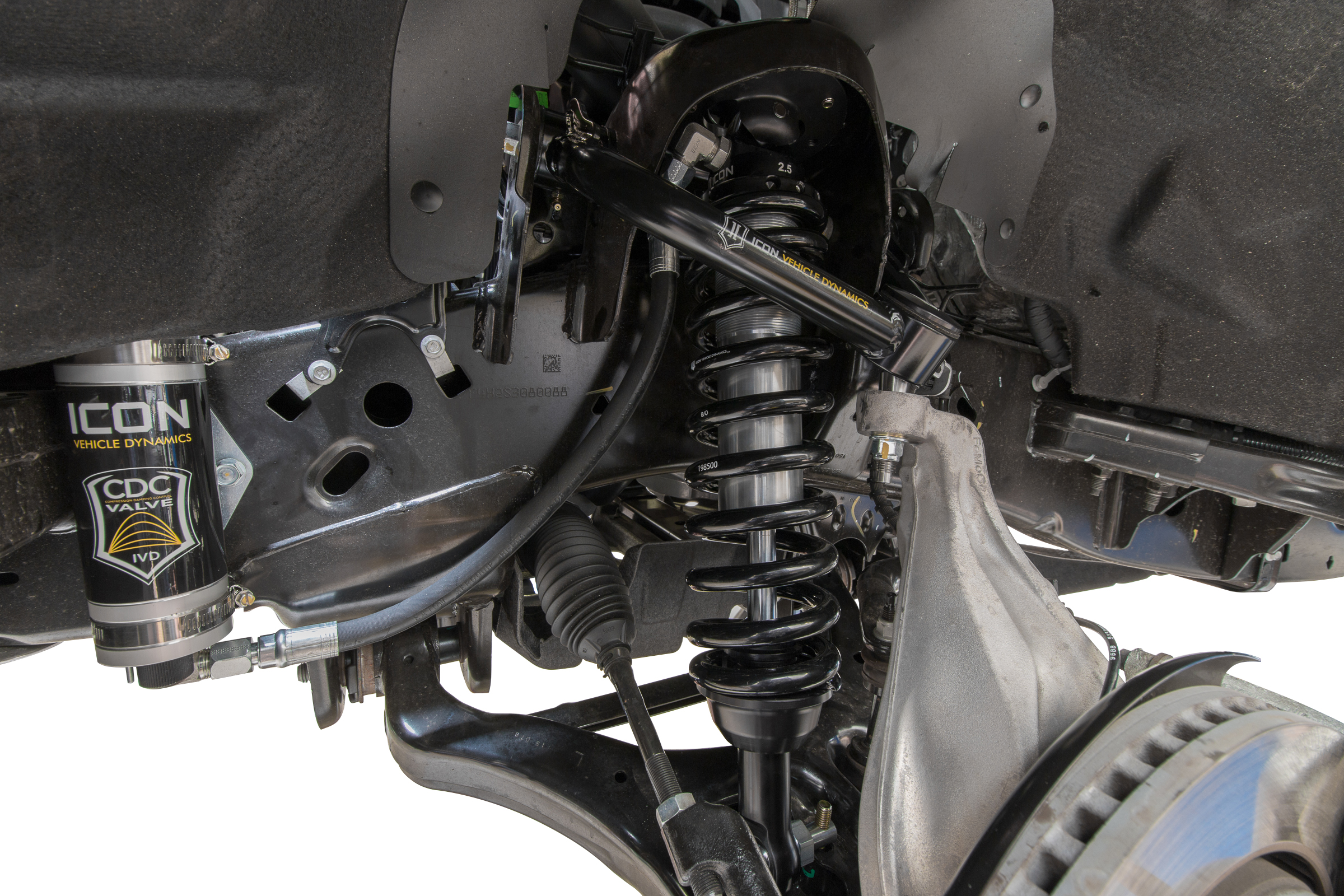

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2015-2020 Ford F-150 4WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 2-2.63” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2015-2020 F-150 4WD.

Products specifications

Spring Color

Black

Coil Over Springs Included

Yes

Adjustable Damping

Yes

Material

Aluminum

Dust Shield

Boot Included

Spring Material

Steel

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Shaft Diameter

2021-07-08

California Proposition 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Body Diameter

2.5

Lower Mount Type

Bar Pin

Shock Absorber Body End Measuring Point

Top of Upper Mount Plate

Shock Absorber Rod End Measuring Point

Flat on Bar Pin

Adjustable Height

yes

Remote Reservoir

Yes

Gas Charged

Yes

Damping Type

Oil

Upper Mount Type

Mounting Plate

Service Parts

254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL

Shaft Diameter

0.875

Service Parts

252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT

Add-On Part

191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)

Recommended Aftermarket Tires

33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

OEM Wheels & Tires Fitment

Yes

Service Parts

252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)

Service Parts

252003 - SEAL INSTALL TOOL 2.5/3.0

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset

Service Parts

257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset

Service Parts

191016 - 7.5" FINNED RESI UPGRADE KIT

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Service Parts

252001 - 2.5 FIXED SPANNER WRENCH

Add-On Part

252012 - -4 TO -10 HOSE SHIELD KIT

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset

Service Parts

611019 - COILOVER HARDWARE KIT PAIR
