ICON Vehicle Dynamics K93083 Stage Suspension System Lift Billet UCA - 3 2015-20 F150 4WD 0-2.63

The ICON Vehicle Dynamics Stage 3 Suspension System for 2015-2020 Ford F-150 4WD trucks delivers maximum performance through enhanced wheel travel and superior damping control. Engineered specifically for the lighter-weight aluminum-bodied F-150, this complete system provides exceptional ride quality both on and off-road while maintaining factory towing capacity.

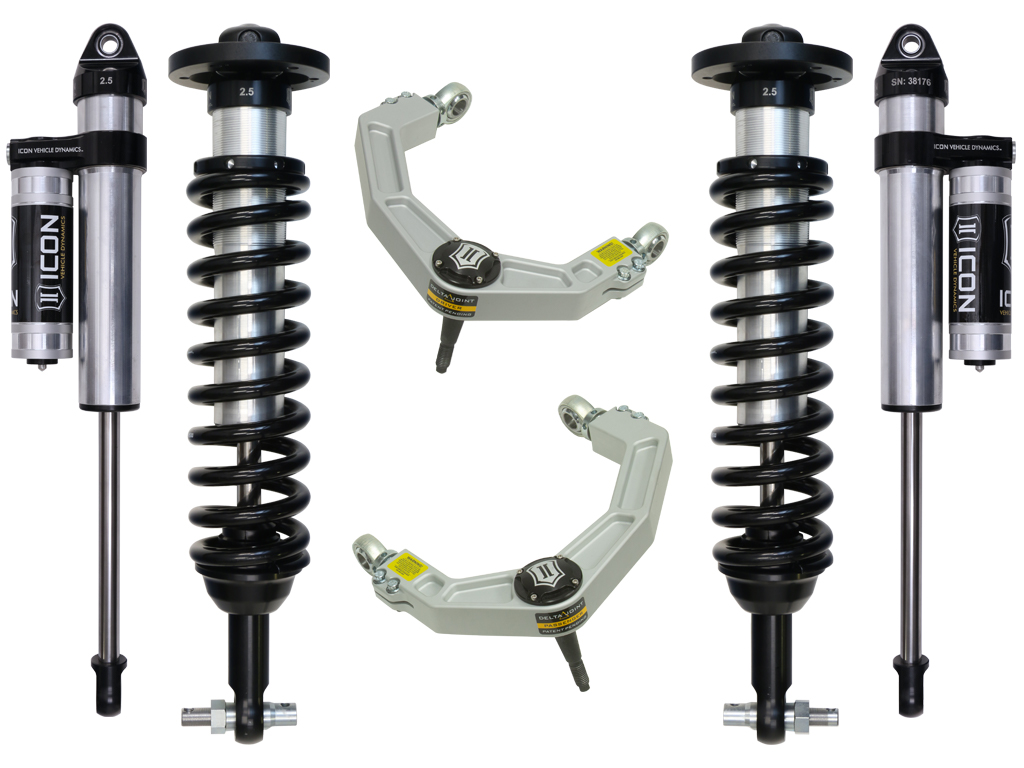

System Components:

• Vehicle-specific tuned 2.5" coilover shocks with internal reservoir for superior cooling
• ICON-engineered Eibach coil springs optimized for enhanced vehicle feel
• Height adjustable from 0-2.63" to accommodate aggressive wheel and tire combinations
• Billet aluminum upper control arms with patented Delta Joint technology
• 2.5 Aluminum Series piggyback reservoir rear shocks with balanced valving
• 6061 aircraft-grade aluminum CNC machined components throughout

Delta Joint Technology:

The included upper control arms feature ICON's patented Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a traditional ball joint with the articulation performance of a uniball. The Delta Joint features a zinc-plated housing for corrosion resistance, robust grease seals to keep contaminants out, and a greasable metal-on-metal design for noise-free operation and extended service life. This innovative design provides greater angularity than standard ball joints while offering superior weather protection compared to exposed uniballs.

Performance Benefits:

• Increased wheel travel and ride quality over stock suspension
• Maintains factory towing capacity with no compromise
• Enhanced caster angle while retaining factory alignment specification range
• Balanced front-to-rear damping with vehicle-specific valving
• Added strength and durability from billet aluminum construction

This Stage 3 system is the ideal choice for drivers seeking to maximize their F-150's capabilities on pavement and off-road terrain without sacrificing daily drivability or utility.
