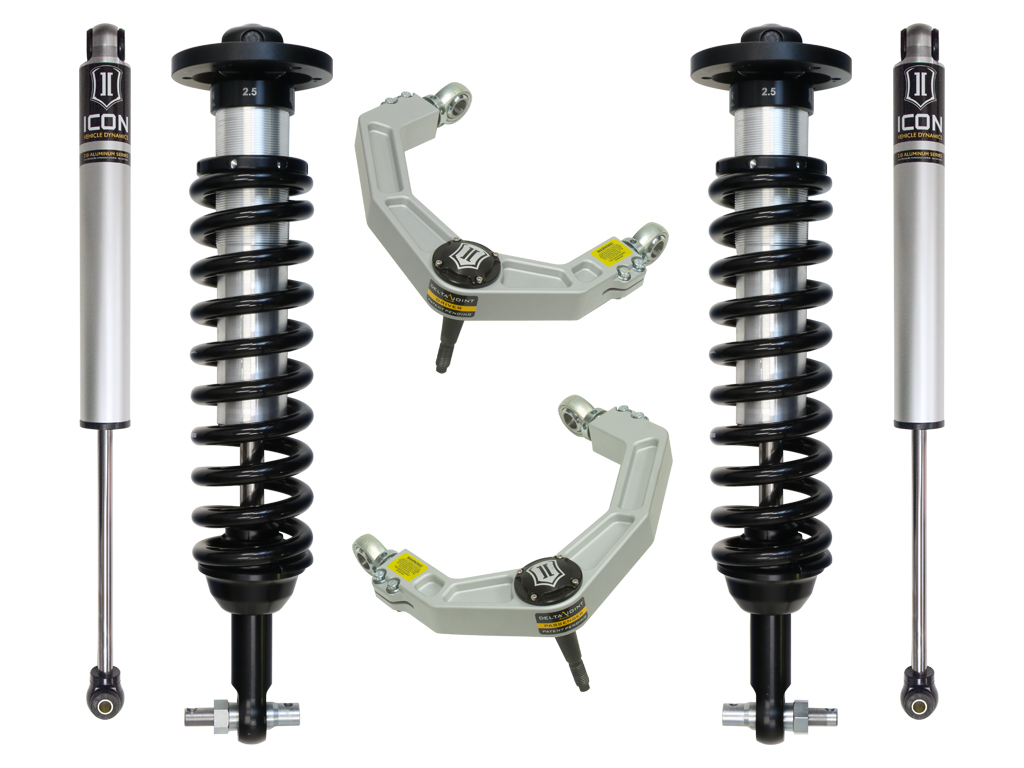

ICON Vehicle Dynamics K93082 Stage 2 Suspension System 0-2.63" Lift with Billet Upper Control Arms

The ICON Vehicle Dynamics K93082 Stage 2 Suspension System is a complete performance upgrade engineered specifically for 2015-2020 Ford F-150 4WD trucks. This comprehensive system delivers increased wheel travel, superior damping control, and enhanced ride quality both on-road and off-road, all while maintaining factory towing capacity.

2.5" Coilover Shocks with Internal Reservoir

At the heart of this system are vehicle-specific tuned 2.5" coilover shocks featuring an internal reservoir design that provides exceptional heat dissipation during demanding driving conditions. Paired with ICON-engineered Eibach coil springs, these height-adjustable coilovers offer 0-2.63" of lift adjustment, allowing you to accommodate larger, more aggressive wheel and tire combinations up to 33" x 11.5".

Billet Aluminum Upper Control Arms with Delta Joint Technology

The K93082 includes precision CNC-machined billet aluminum upper control arms constructed from 6061 aircraft-grade aluminum. These arms feature ICON's patented Delta Joint—a heavy-duty high-angle ball joint that combines the durability of a traditional ball joint with the performance characteristics of a uniball. The Delta Joint features a zinc-plated housing for corrosion resistance and a grease seal that protects against the elements while allowing for noise-free operation. This design retains factory alignment specifications while increasing caster over stock for improved steering response and stability.

2.0 Aluminum Series Rear Shocks

ICON 2.0 Aluminum Series monotube rear shocks utilize vehicle-specific valving developed specifically for the lighter weight of the 2015-2020 F-150 platform. This custom tuning balances front-to-rear performance, ensuring optimal damping and vehicle control across the entire chassis.

Key Features:

• Vehicle-specific tuned 2.5" front coilover shocks with internal reservoir
• ICON-engineered Eibach coil springs for superior ride quality
• Height adjustable from 0-2.63" lift
• Billet aluminum upper control arms with patented Delta Joint technology
• 6061 aircraft-grade aluminum CNC-machined components
• Vehicle-specific tuned 2.0 rear monotube shocks
• Increased wheel travel and damping ability
• Maintains factory towing capacity
• Retains factory alignment specification range with increased caster
• Greasable Delta Joint design for long-term durability
• Fully serviceable shock absorbers

The ICON K93082 Stage 2 Suspension System is an excellent choice for F-150 owners seeking to enhance their truck's capabilities on both paved roads and off-road terrain. Professional installation and mechanical expertise recommended.
