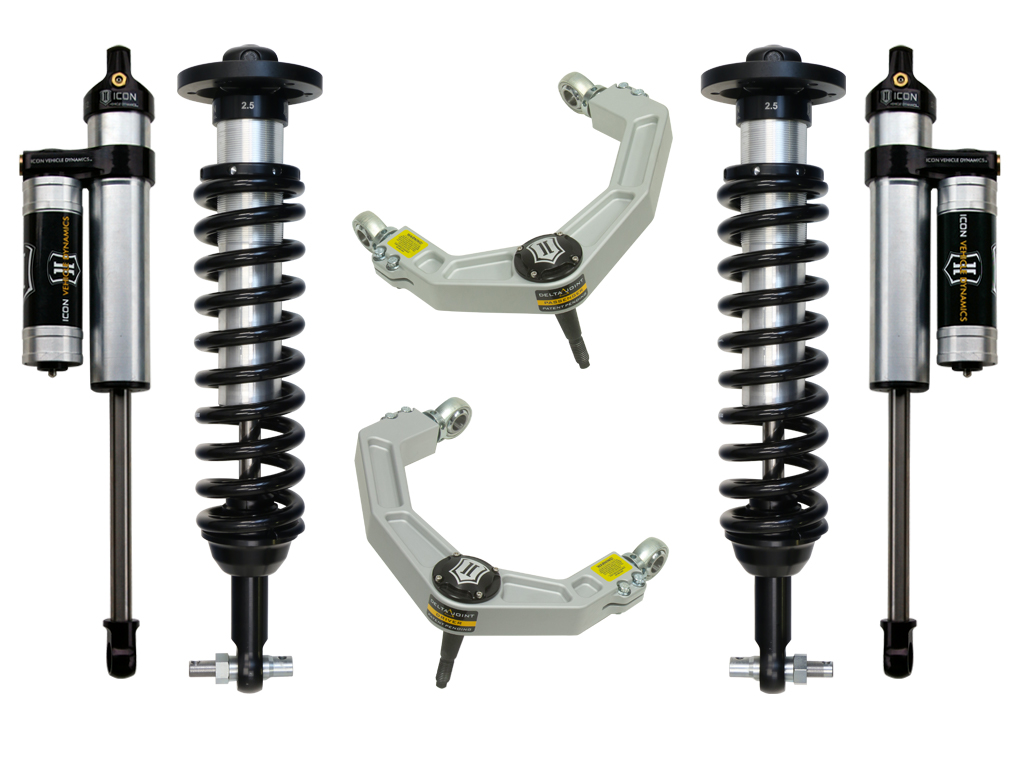

ICON Vehicle Dynamics K93063 Stage 3 Suspension System 0-2.63" Lift Billet Upper Control Arms 2014 Ford F150 4WD

The ICON Vehicle Dynamics K93063 Stage 3 Suspension System is engineered for 2014 Ford F150 4WD models seeking maximum performance and capability. This complete suspension upgrade delivers increased wheel travel and superior ride quality without compromising towing capacity, making it ideal for both daily driving and aggressive off-road use.

System Components and Features:

• Vehicle-specific tuned 2.5" coilover shocks with internal reservoir for exceptional heat dissipation and consistent damping performance
• ICON-engineered Eibach coil springs provide superior vehicle feel through the full range of travel
• Height adjustable from 0-2.63" of lift over stock, accommodating larger wheel and tire combinations
• CNC-machined 6061 aircraft-grade aluminum billet upper control arms increase strength and durability
• Corrosion-resistant CAD-plated coilover shock bodies with robust 7/8" shafts
• ICON 2.5 Aluminum Series piggyback reservoir rear shocks with vehicle-specific valving for balanced front-to-rear performance

Patented Delta Joint Technology:

The included billet upper control arms feature ICON's patented Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a traditional ball joint with the performance characteristics of a uniball. The Delta Joint features zinc-plated housing for corrosion resistance and a robust grease seal that protects internal components from the elements. This metal-on-metal, greasable design ensures noise-free operation and extended service life while allowing greater articulation than standard ball joints. The upper control arms help retain factory alignment specifications while increasing caster over stock for improved handling.

Performance Engineering:

The 2.5" reservoir shocks maintain optimal operating temperatures during demanding use, ensuring consistent damping performance regardless of terrain. This system is designed to maximize wheel travel and damping ability, translating to exceptional vehicle control on-road and off-road. The Stage 3 system represents a comprehensive solution for F150 owners seeking to enhance their truck's capabilities without sacrificing daily drivability.
