ICON Vehicle Dynamics K93055 RXT Rear Suspension System 2010-2014 Ford Raptor

The ICON Vehicle Dynamics RXT Rear Suspension System represents a complete rear suspension overhaul for the 2010-2014 Ford SVT Raptor, delivering a 20% increase in up-travel and 30% increase in down-travel over factory components. This comprehensive system combines three critical components to unlock the full off-road potential of the Raptor platform.

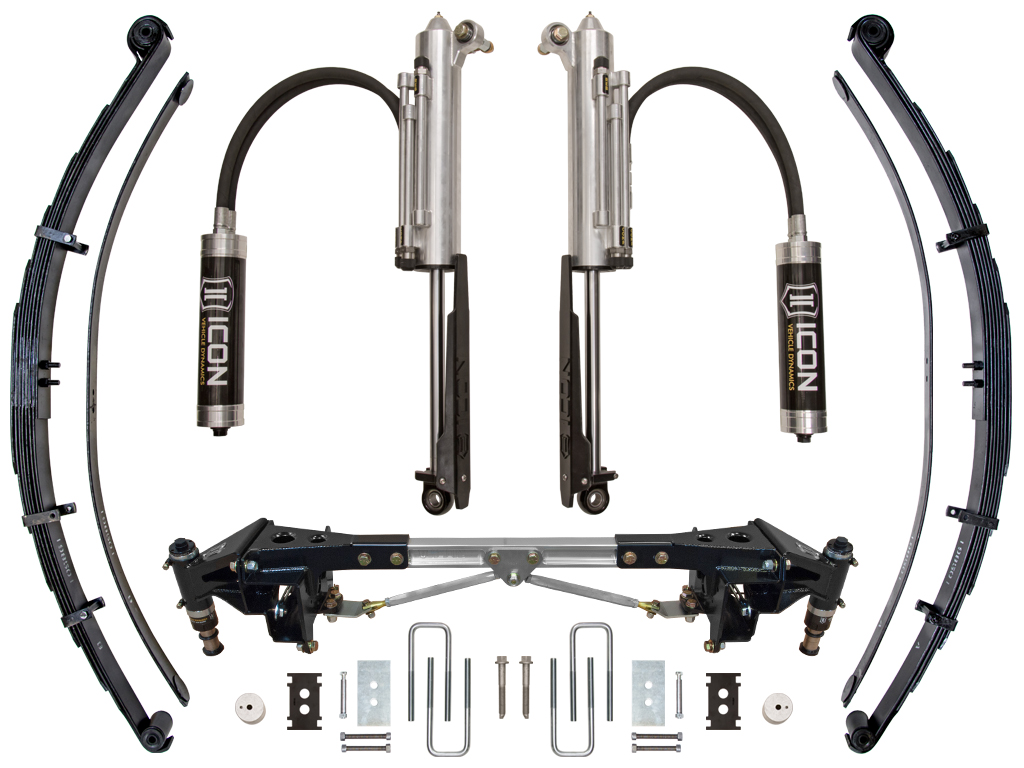

Complete System Includes:

• RXT 3.0 Rear Bypass Shock with unique side-mount eyelet design
• RXT Multi-Rate Leaf Spring with user-adjustable spring rates
• Hydraulic Bump Stop Kit with velocity-sensitive 2.0 hydraulic bump stops

RXT 3.0 Rear Bypass Shock Features:

• Dual Hose Recirculating Reservoir (Patent Pending) with check valve technology exchanges hot fluid with cooler reservoir fluid to prevent shock fade during extended hard use
• Side-mount eyelet design achieves shorter collapsed length and longer extension while maintaining factory mounting compatibility
• Three-way adjustable bypass tuning for precise control throughout extended travel range
• Built to withstand extreme off-road abuse with commercial-grade construction

RXT Multi-Rate Leaf Spring Features:

• User-adjustable spring rate with included additional leaf allows 10% or 20% rate increase for heavier vehicle configurations
• Triple military wrapped front and rear half wrapped eyelet for maximum durability
• Rebound leaf reduces axle wrap under acceleration
• Tip inserts and leaf separators enhance ride comfort
• Slightly lowered base spring rate improves ride quality and increases droop travel

Hydraulic Bump Stop Kit Features:

• Velocity-sensitive 2.0 hydraulic bump stops absorb exponentially more energy than factory foam rubber stops
• Designed for increased leaf spring clearance without sacrificing up-travel
• Removable spacer allows tuning for maximum travel when combined with RXT components
• Bolt-on installation without truck bed removal
• 6061 solid billet crossbar with polished and anodized finish

Developed through extensive testing in desert, snow, and trail environments, the RXT Rear Suspension System addresses limiting factors in OE components identified through in-house R&D and collaboration with Raptor enthusiast communities. This system completely redefines rear suspension capability for street, trail, and high-speed desert applications.
