ICON Vehicle Dynamics K93054 Stage Suspension System Ford Raptor - 4 2010-2014

(2010-2014 Ford F-150; 1998-2003 Toyota Sienna CE/LE; 1999, 2001, 2003 Toyota Sienna XLE; 2008-2015 Scion xB Base)

Manufacturer

Part Number

K93054
Black Friday Price

$11,692.38

$13,755.74 Save 15%

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

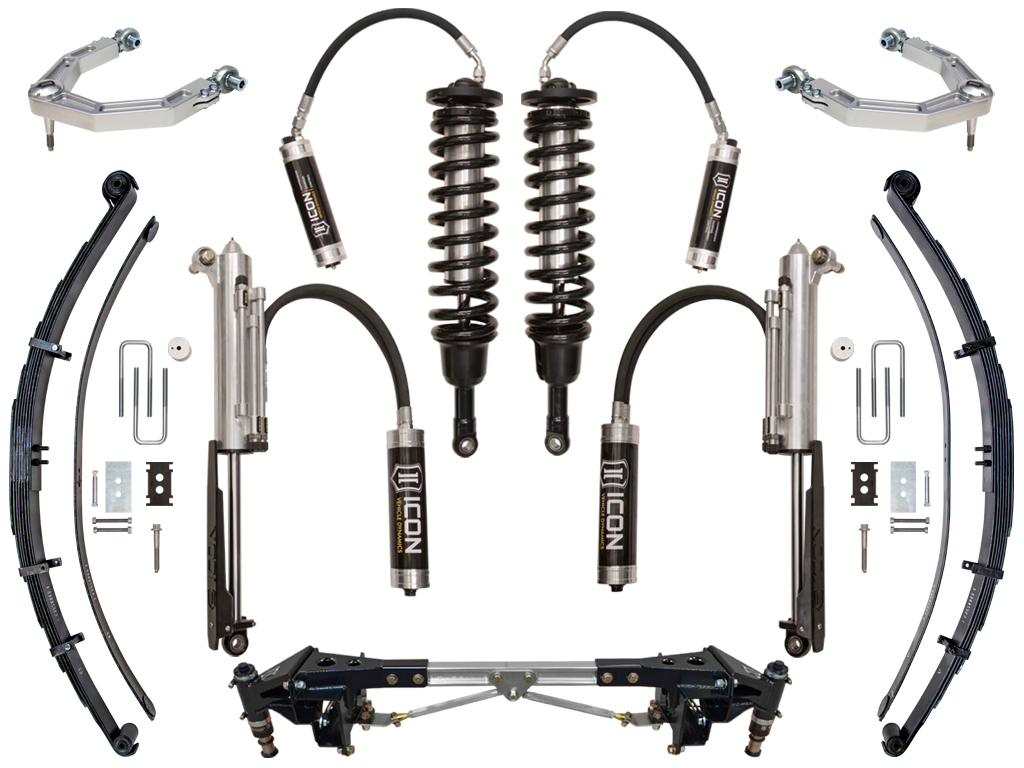

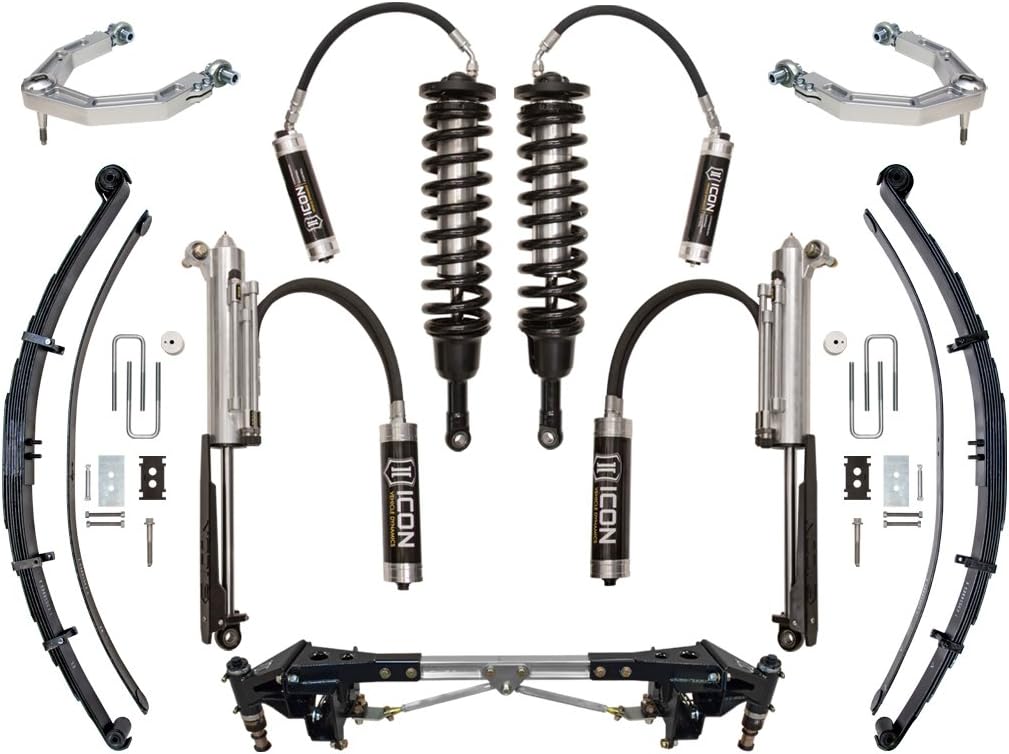

The ICON Vehicle Dynamics Stage 4 Suspension System represents the ultimate suspension upgrade for 2010-2014 Ford SVT Raptor owners seeking maximum off-road performance. This comprehensive system combines ICON's acclaimed 3.0 Front Coilover Shocks with Billet Delta Joint Upper Control Arms and the complete RXT Rear Suspension System, delivering a transformed driving experience both on and off-road.

3.0 Front Coilover Shock System:

  • 3.0-inch OEM replacement remote reservoir compression adjustable front coilover shocks with direct bolt-in installation
  • Internal hydraulic bump zone engineered for maximum G-out control in the last 40% of travel
  • Nitrogen charged 6063-T832 aluminum 10-inch remote reservoirs with optimum positioning for superior heat dissipation
  • External easy-adjust compression damping control valve with 10 high-resolution settings
  • Digressive rebound and flutter stack compression for outstanding control and response

Billet Delta Joint Upper Control Arms:

  • On-vehicle adjustable rod ends allow for quick alignment changes without removing arms
  • ICON's patented Delta Joint combines ball joint durability with uniball performance characteristics
  • Zinc-plated housing with grease seal provides superior corrosion resistance and longevity
  • Greaseable metal-on-metal construction ensures noise-free operation
  • Adjustability maintains factory track width while improving tire clearance

RXT Rear Suspension System:

The RXT system completely reimagines Raptor rear suspension with a user-adjustable multi-rate leaf pack that addresses OEM limitations. Tip inserts and leaf separators reduce friction for improved ride comfort, while triple military wrapped front and rebound leaf design increases durability and reduces axle wrap.

RXT Multi-Rate Leaf Spring Features:

  • User-adjustable spring rate with additional leaf included for 10% or 20% rate increase
  • Designed to accommodate heavy accessory loads including chase racks and spare tires
  • Slightly lower standard spring rate increases ride quality and droop travel
  • Enhanced durability through triple military wrapped construction

RXT 3.0 Rear Bypass Shock:

  • Unique side-mount eyelet design allows shorter collapsed length and longer extension while maintaining factory mounting locations
  • Dual Hose Recirculating Reservoir (Patent Pending) with check valve exchanges hot fluid with cooler reservoir fluid
  • Prevents shock fade during extended high-performance driving
  • Tuned to control suspension throughout the expanded range of travel

Raptor Rear Hydraulic Bump Stop Kit:

  • Velocity-sensitive 2.0 hydraulic bump stop absorbs more energy at higher impact speeds
  • Robust clamshell bracket design with triangulated cross braces reinforces frame weak points
  • Removable spacer allows for dramatic up-travel increase when used with RXT components
  • Replaces limiting OEM foam rubber bump stops

This Stage 4 System has been extensively tested across diverse terrain from Southwestern deserts to Michigan snow and East Coast trails. The result is a complete bolt-on suspension transformation that maximizes the potential of the Ford SVT Raptor for serious off-road enthusiasts.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2010-2014 Ford F-150; 1998-2003 Toyota Sienna CE/LE; 1999, 2001, 2003 Toyota Sienna XLE; 2008-2015 Scion xB Base

Bushings Included

No

Mounting Hardware Included

Yes

Grade Type

Performance

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Maximum Lift

3

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Spring Material

Steel

Recommended Aftermarket Tires

35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset

OEM Wheels & Tires Fitment

Yes
