ICON Vehicle Dynamics K93053 Stage Suspension System Ford Raptor - 3 2010-2014

(2010-2014 Ford F-150; 1984-1988 Toyota Pickup; 2005 Saab 9-2X Linear; 2005-2006 Saab 9-2X Aero; 2006 Saab 9-2X 2.5i)

Manufacturer

Part Number

K93053
Black Friday Price

$9,067.51

$10,667.66 Save 15%

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

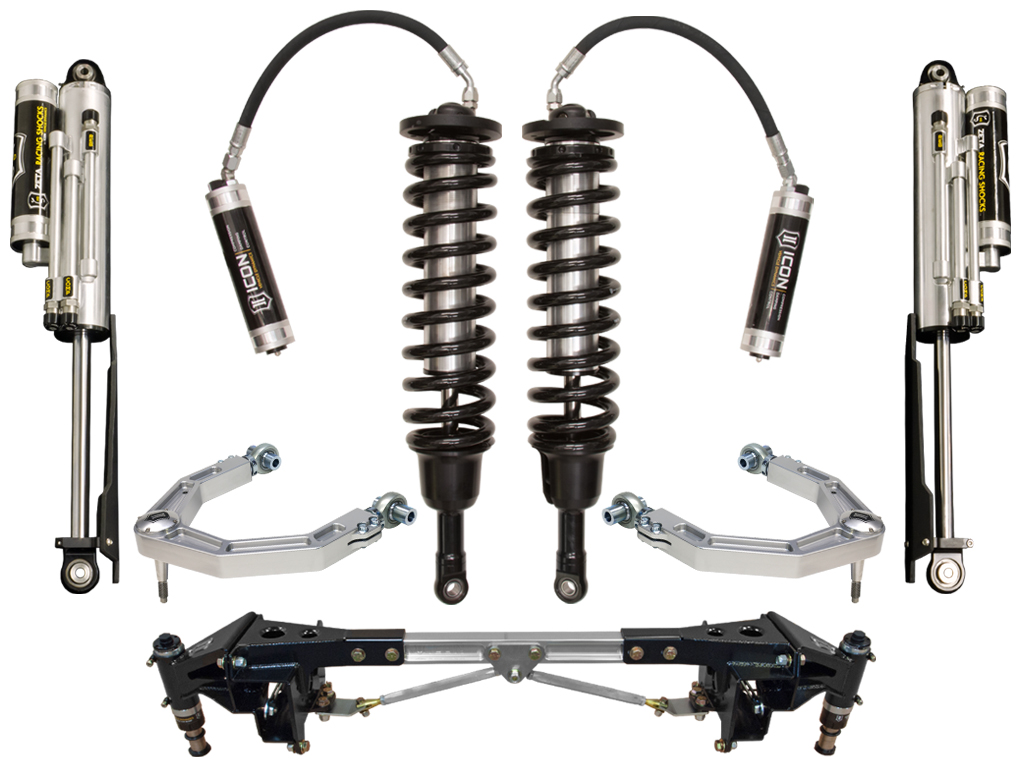

The ICON Vehicle Dynamics Stage 3 Suspension System represents the ultimate performance upgrade for 2010-2014 Ford SVT Raptor trucks, combining advanced coilover technology, external bypass rear shocks, hydraulic bump stops, and billet Delta Joint upper control arms into one comprehensive package designed to maximize both on-road comfort and extreme off-road capability.

3.0 Performance Front Coilover Shocks:

  • True 3.0-inch main piston with digressive rebound and flutter stack compression for outstanding control and response
  • Internal hydraulic bump zone engineered for maximum G-out control during the last 40% of travel
  • 10-inch nitrogen-charged 6063-T832 aluminum remote reservoirs, precision CNC honed and hard anodized for superior heat dissipation
  • External compression damping adjustment with 10 high-resolution settings from soft to firm
  • Direct bolt-in installation to OEM mounting locations with optimized reservoir positioning for protection and cooling

3.0 Zeta Rear External Bypass Shocks:

  • True 3.0-inch three-tube external bypass design with zone-specific tuning for each bypass valve
  • Dampened valve stops eliminate clicking noises during compression and rebound
  • Tool-free external adjustment knobs allow quick tuning from plush off-road to firm towing performance
  • Replaceable bypass tubes reduce rebuild costs compared to traditional bypass shocks
  • Each bypass valve features unique port design and spring rate for precise control throughout travel

2.5-Inch Travel Hydraulic Bump Stop System:

  • Hydro-pneumatic design uses oil and nitrogen to provide spring force and damping control
  • Adjustable system delivers low impact forces at initial contact, ramping to maximum control at full compression
  • Internal damping piston reduces kick and controls energy return to suspension
  • Speed-sensitive performance remains compliant at low speeds while resisting bottoming at high impact velocities
  • Clamshell bracket with triangulated cross braces provides rigid mounting and reinforces weak frame areas
  • 2.5 inches of additional travel allows progressive control without interfering with normal suspension operation

Billet Delta Joint Upper Control Arms:

  • ICON's patented Delta Joint combines ball joint durability with uniball performance characteristics
  • On-vehicle adjustable rod ends enable alignment changes in minutes without arm removal
  • Zinc-plated housing with grease seal provides corrosion resistance and protection from elements
  • Greaseable metal-on-metal construction ensures long service life and noise-free operation
  • Greater angularity than traditional ball joints with more weather resistance than uniballs
  • Adjustability maintains factory track width while improving tire-to-fender clearance

This complete Stage 3 system addresses every weakness in the factory Ford Raptor suspension through extensive research and development. The multi-stage compression and rebound tuning has been independently calibrated to work together as an integrated system, delivering unparalleled performance whether navigating technical off-road terrain, high-speed desert running, mountain driving, or towing applications. Each component is precision-engineered to handle the extreme suspension loads generated by modified Raptors operating beyond Ford's original design parameters.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2010-2014 Ford F-150; 1984-1988 Toyota Pickup; 2005 Saab 9-2X Linear; 2005-2006 Saab 9-2X Aero; 2006 Saab 9-2X 2.5i

Bushings Included

No

Mounting Hardware Included

Yes

Grade Type

Performance

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Maximum Lift

3

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Spring Material

Steel

Recommended Aftermarket Tires

35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
