ICON Vehicle Dynamics K93051 Stage Suspension System Ford Raptor - 1 2010-2014

(2010-2014 Ford F-150; 1999-2001 Saab 9-5; 1992-1995 Toyota Paseo Base)

Manufacturer

Part Number

K93051
Black Friday Price

$5,780.44

$6,800.52 Save 15%

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

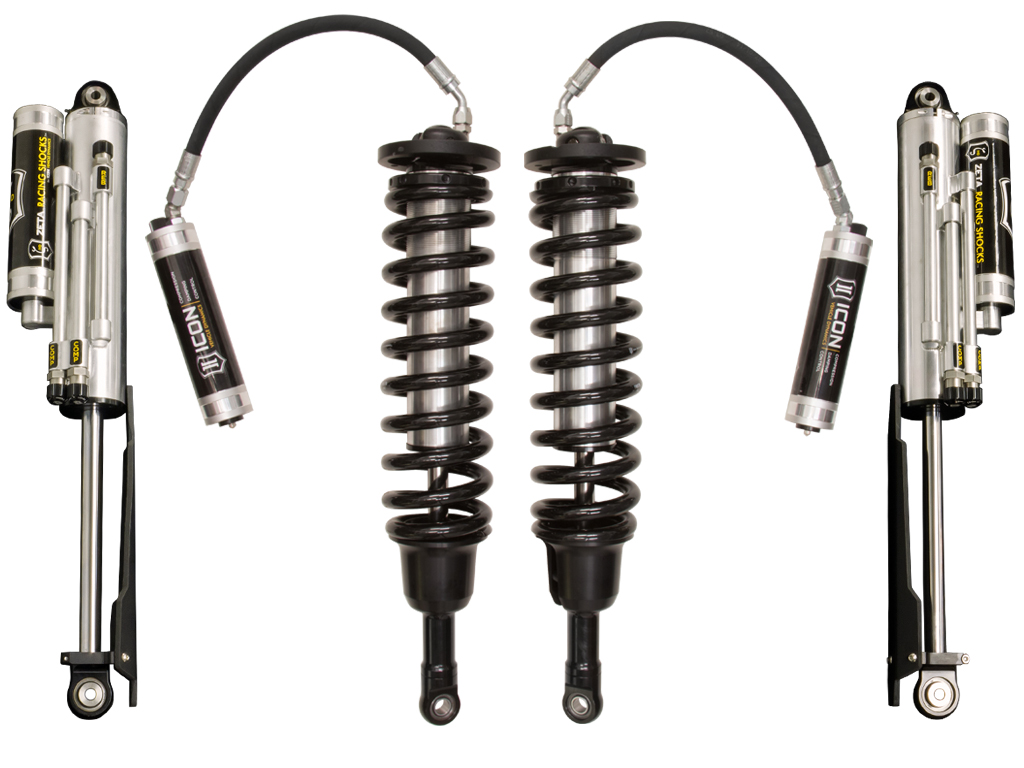

The ICON Vehicle Dynamics Stage 1 Suspension System represents a complete performance upgrade for 2010-2014 Ford SVT Raptor trucks, featuring advanced 3.0" coil-over shocks front and rear designed to bridge the gap between street capability and serious off-road performance.

Front 3.0" Coil-Over Shock Features:

  • OEM replacement remote reservoir compression adjustable coil-over shocks with direct bolt-in installation
  • True 3.0" main piston with digressive rebound and flutter stack compression for outstanding control and response
  • Internal hydraulic bump zone engineered for maximum G-out control during the last 40% of travel
  • External easy-to-adjust compression damping control valve with 10 high-resolution settings
  • Nitrogen-charged 6063-T832 aluminum 10" remote reservoirs, precision CNC honed and hard anodized
  • Optimized reservoir positioning for superior heat dissipation and protection

Rear 3.0" External Bypass Shock Features:

  • True three-tube external bypass design with individually tuned bypass valves
  • Each bypass valve features specific port design and custom spring rate for precise zone control
  • Dampened valve stops eliminate clicking noises during operation
  • Tool-free easy-to-adjust high-resolution clicker knobs for quick tuning
  • Replaceable bypass tubes reduce rebuild costs compared to traditional bypass shocks
  • Adjustable from plush off-road performance to firm on-road control for towing and mountain driving

This complete suspension system underwent rigorous on-road and off-road testing to deliver unparalleled ride quality, exceptional bottoming control, and superior cornering performance. The system allows owners to fine-tune compression settings to match their specific driving style and conditions.

Includes: Front coil-over shocks with remote reservoirs and rear external bypass shocks. Backed by a 1-year warranty.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2010-2014 Ford F-150; 1999-2001 Saab 9-5; 1992-1995 Toyota Paseo Base

Bushings Included

No

Mounting Hardware Included

Yes

Grade Type

Performance

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Maximum Lift

3

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Spring Material

Steel

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset

Recommended Aftermarket Tires

35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset

Add-On Part

198001 - BILLET SPANNER WRENCH KIT
