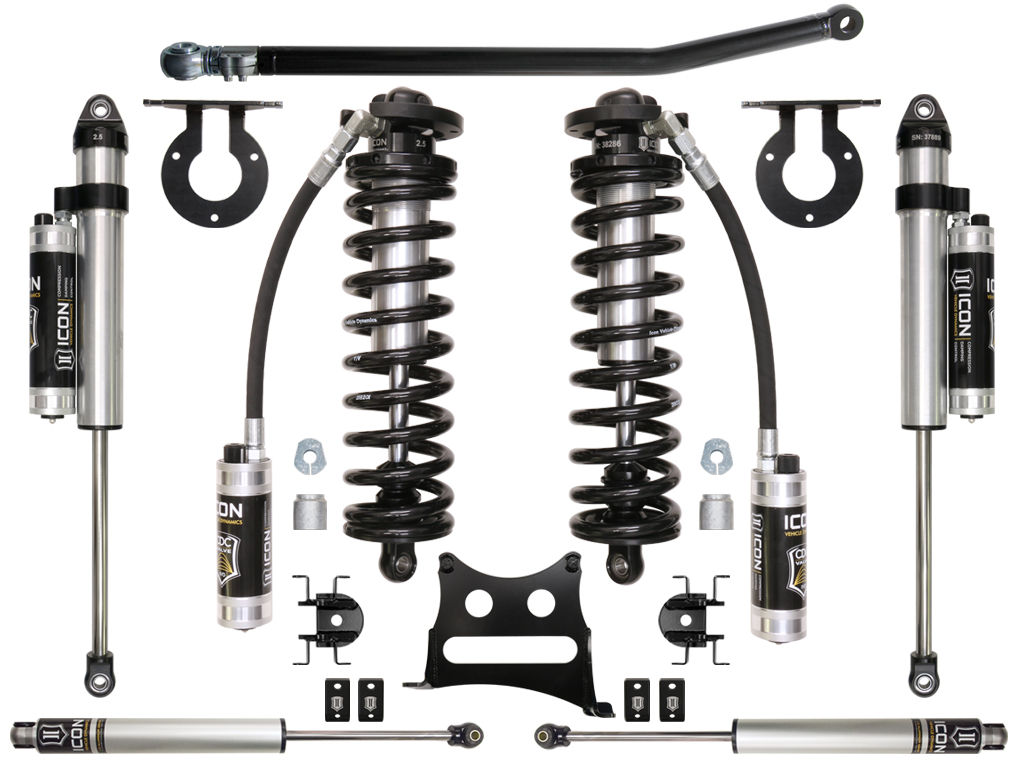

ICON Vehicle Dynamics K63104 Stage 4 Coilover Conversion System 2.5-3 Inch Lift

(2005-2016 Ford F-250 Super Duty; 2005-2016 Ford F-350 Super Duty; 1999-2004 Volvo C70 Base; 2000-2005 Toyota Echo Base)

Manufacturer

Part Number

K63104
Sale Price

$4,607.75

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics K63104 Stage 4 Coilover Conversion System transforms the suspension performance of 2005-2016 Ford F-250 and F-350 Super Duty trucks with 2.5 Series remote reservoir coilovers that deliver superior damping control and user-adjustable ride height from 2.5 to 3 inches of lift. This bolt-in system installs directly into the factory coil bucket location, making it a straightforward upgrade that dramatically improves both on-road comfort and off-road capability.

Key Features:

  • 2.5 Series remote reservoir coilovers with vehicle-specific valving for optimized performance
  • Adjustable ride height from 2.5 to 3 inches of front lift over stock
  • Premium Eibach coil springs engineered for this application
  • FK Rod End bearings for extended service life and minimal deflection
  • Corrosion-resistant CAD plated shock bodies with 7/8-inch diameter shafts
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • Fully rebuildable and revalveable shock design for long-term serviceability
  • Coilover conversion allows space for addition of secondary shock if desired
  • Decreased body roll and improved suspension articulation
  • Bolt-in installation with no cutting, drilling, or welding required

The remote reservoir design significantly increases shock oil volume and heat dissipation surface area, preventing damper fade during hard use or extended off-road driving. Quality CNC-machined components and precision engineering ensure this system will deliver reliable performance for years to come. Springs are specifically rated for diesel engine weight. Accommodates up to 35-inch x 12.50-inch aftermarket tires, though larger sizes may require fender trimming. Note that installation requires removal of the factory coil centering cup in the coil bucket. Rear lift blocks and U-bolts sold separately for leveling.

California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Products specifications

Fits

2005-2016 Ford F-250 Super Duty; 2005-2016 Ford F-350 Super Duty; 1999-2004 Volvo C70 Base; 2000-2005 Toyota Echo Base

Bushings Included

No

Mounting Hardware Included

Yes

Grade Type

Performance

Add-On Part

64039 - 08-UP FSD TRACK BAR BUMP STEER BRACKET KIT

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Maximum Lift

3

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Spring Material

Steel

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Recommended Aftermarket Tires

35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset

OEM Wheels & Tires Fitment

Yes
