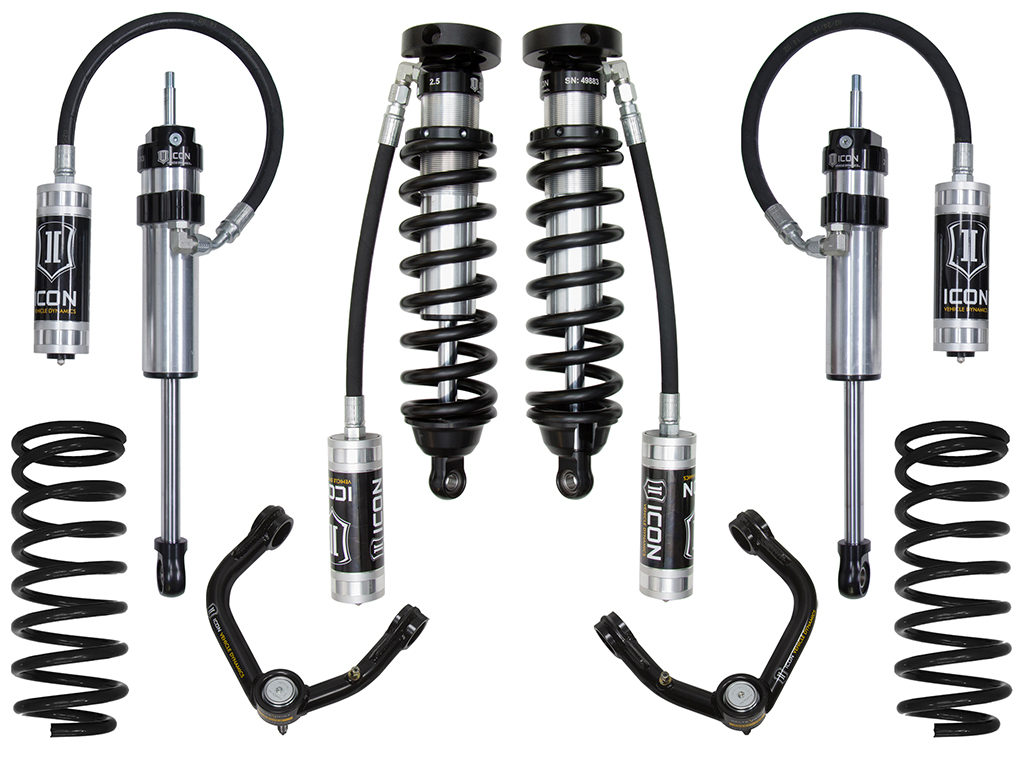

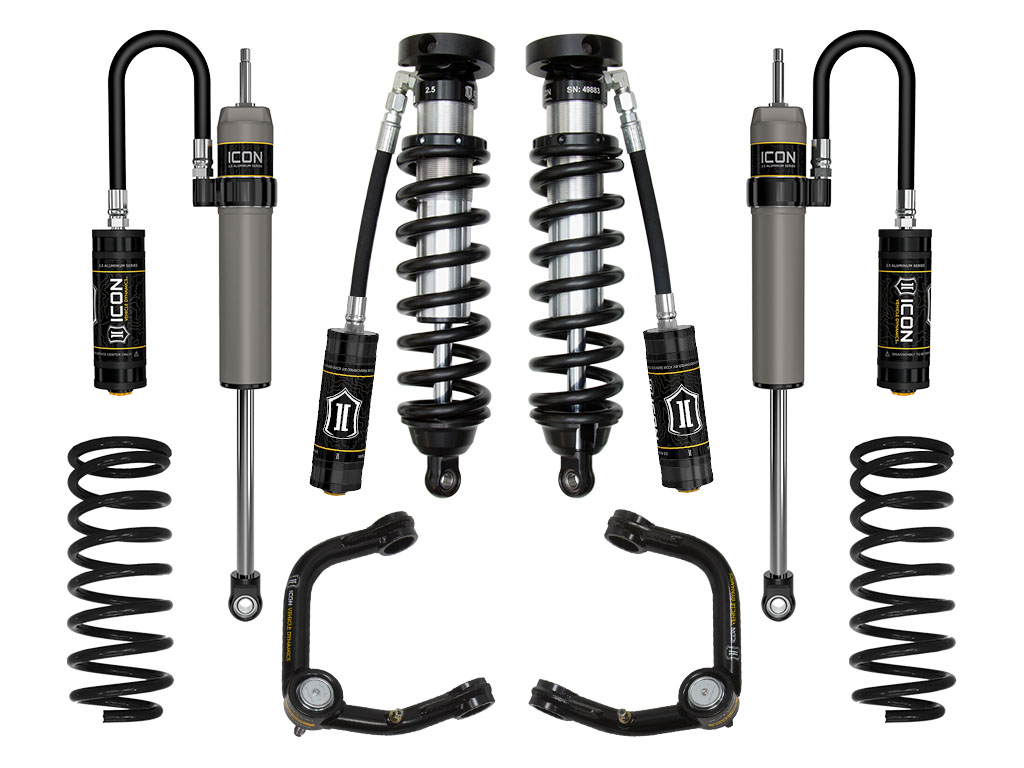

ICON Vehicle Dynamics K53134 Stage 4 Suspension System 0-3" Lift 2.5 Coilovers

(1996-2002 Toyota 4Runner; 2010-2012 Subaru Legacy; 2012-2016 Porsche Boxster)

Manufacturer

Part Number

K53134
Black Friday Price

$3,576.34

$4,207.46 Save 15%

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 4 Suspension System transforms the 1996-2002 Toyota 4Runner's on and off-road performance with a comprehensive upgrade featuring 2.5 Series Extended Travel Remote Reservoir Coilovers and 2.5 Aluminum Series Remote Reservoir Rear Shocks. This complete suspension system is engineered specifically for the 3rd Gen 4Runner platform, combining ICON's proprietary components to extract maximum performance from the vehicle.

Key Features:

  • 2.5 VS Series coilovers with height adjustability from 0-3" of lift over stock
  • ICON engineered coil springs with vehicle-specific shock valving
  • 2.5 Aluminum Series Remote Reservoir rear shocks for superior damping
  • Tubular steel upper control arms with patented Delta Joint technology
  • FK Rod End bearings and high-quality CNC-machined components
  • ICON engineered rear coil springs providing 1" of rear lift
  • Fully rebuildable and revalveable shock absorbers for long service life
  • Bolt-on design for straightforward installation

Performance Benefits:

  • Increased wheel travel and ride quality compared to stock suspension
  • Decreased body roll for improved handling characteristics
  • Alignment correction through upper control arm geometry
  • Accommodation for larger, more aggressive wheel and tire combinations
  • Customizable ride quality through revalving capability

Delta Joint Technology:

The upper control arms feature ICON's patented Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a traditional ball joint with the performance characteristics of a uniball. The Delta Joint features a zinc-plated housing for corrosion resistance and a tough grease seal that protects against harmful elements. Its metal-on-metal construction and greaseable design provide noise-free operation and extended longevity, offering greater angularity than typical ball joints while being more robust than standard uniballs for daily driving conditions.

This Stage 4 system is ideal for drivers seeking dramatic improvements in both on-road handling and off-road capability for their 3rd Gen 4Runner.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

1996-2002 Toyota 4Runner; 2010-2012 Subaru Legacy; 2012-2016 Porsche Boxster

Bushings Included

Yes

Mounting Hardware Included

Yes

Grade Type

Performance

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Maximum Lift

3

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Add-On Part

252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)

Spring Rate

650

Add-On Part

191011 - TUBULAR UCA BILLET CAP SET

Coils Quantity Rear

2

Spring Material

Steel

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset

Add-On Part

252012 - -4 TO -10 HOSE SHIELD KIT

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset

Recommended Aftermarket Tires

33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
