ICON Vehicle Dynamics K53064T Stage 4 Suspension System 0-3.5" Lift with Tubular UCA

(2010-2021 Toyota 4Runner; 2010-2014 Toyota FJ Cruiser; 2019-2023 Volkswagen Jetta; 2012-2016 Porsche Boxster)

Manufacturer

Part Number

K53064T
Black Friday Price

$3,801.06

$4,471.83 Save 15%

In Stock (7)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 4 Suspension System transforms your Toyota 4Runner or FJ Cruiser into a capable on-road and off-road performer. Engineered for serious drivers who demand maximum performance, this complete bolt-on system dramatically increases wheel travel and damping ability for outstanding vehicle control and ride quality in any terrain.

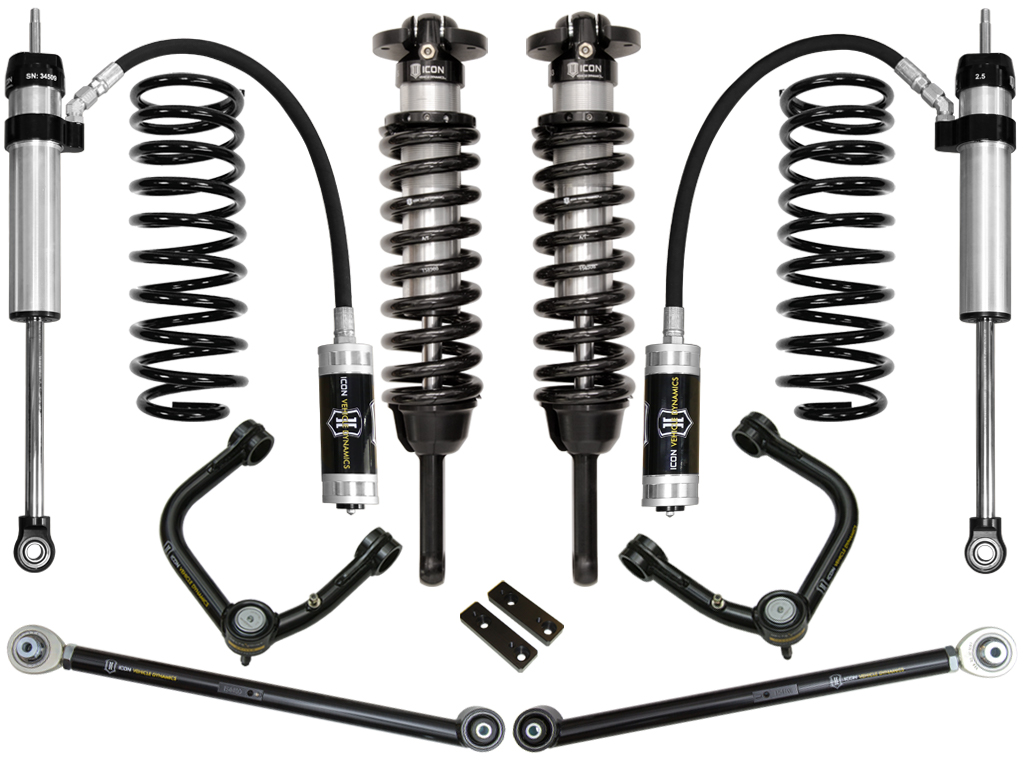

Complete Stage 4 System Includes:

  • Vehicle-specific tuned 2.5" extended travel coilover shocks with internal reservoir for exceptional cooling
  • ICON-engineered coil springs for superior vehicle feel through the full range of travel
  • Height adjustable coilovers providing 0-3.5" of front lift for larger wheel and tire combinations
  • Tubular Delta Joint upper control arms for increased strength, durability, and improved alignment geometry
  • Tubular steel lower links with low maintenance multi-durometer bushings and adjustable pinion angle
  • ICON rear coil springs delivering 2" of rear lift for a level front-to-rear stance
  • 2.5" Aluminum Series rear shocks with remote reservoirs for consistent damping and cooler operation

Delta Joint Technology:

The upper control arms feature ICON's patented Delta Joint, a revolutionary heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball. The zinc-plated housing provides corrosion resistance while a tough grease seal protects against the elements. This greaseable, metal-on-metal design delivers noise-free operation with greater angularity than typical ball joints and more durability than industry-standard uniballs.

Key Performance Features:

  • Increased wheel travel and ride quality over stock suspension
  • Bolt-on installation with no cutting or welding required
  • Extended travel coilovers matched with ICON UCA for increased front droop travel
  • Improved caster angle and proper wheel alignment at lifted heights
  • Rear shock internal Bump Zone creates additional 20% damping force to control hard bottom outs
  • Remote reservoirs increase duration of consistent damping during heavy use

This complete Stage 4 system is the ultimate choice for drivers looking to maximize both on-road comfort and off-road capability while maintaining the reliability needed for daily driving.

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2010-2021 Toyota 4Runner; 2010-2014 Toyota FJ Cruiser; 2019-2023 Volkswagen Jetta; 2012-2016 Porsche Boxster

Spring Color

Black

Maximum Lift

3.5

Coils Quantity Rear

2

Spring Rate

650

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Bushings Included

Yes

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Mounting Hardware Included

Yes

Spring Material

Steel

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Grade Type

Performance

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset

Add-On Part

191011 - TUBULAR UCA BILLET CAP SET

OEM Wheels & Tires Fitment

Yes

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Shocks Included

Yes
