ICON Vehicle Dynamics K53064 Stage 4 Suspension System 0-3.5" Lift with Billet UCA

(2010-2021 Toyota 4Runner; 2010-2014 Toyota FJ Cruiser; 1990-1993 Toyota Celica GTS/ST; 1992 Toyota Celica GT; 1982-1986 Pontiac Bonneville)

Manufacturer

Part Number

K53064
Black Friday Price

$4,649.83

$5,470.39 Save 15%

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 4 Suspension System is engineered for serious drivers seeking maximum performance both on and off-road. This comprehensive bolt-on system dramatically increases wheel travel and damping ability, delivering exceptional vehicle control and ride quality without requiring any cutting or welding for installation.

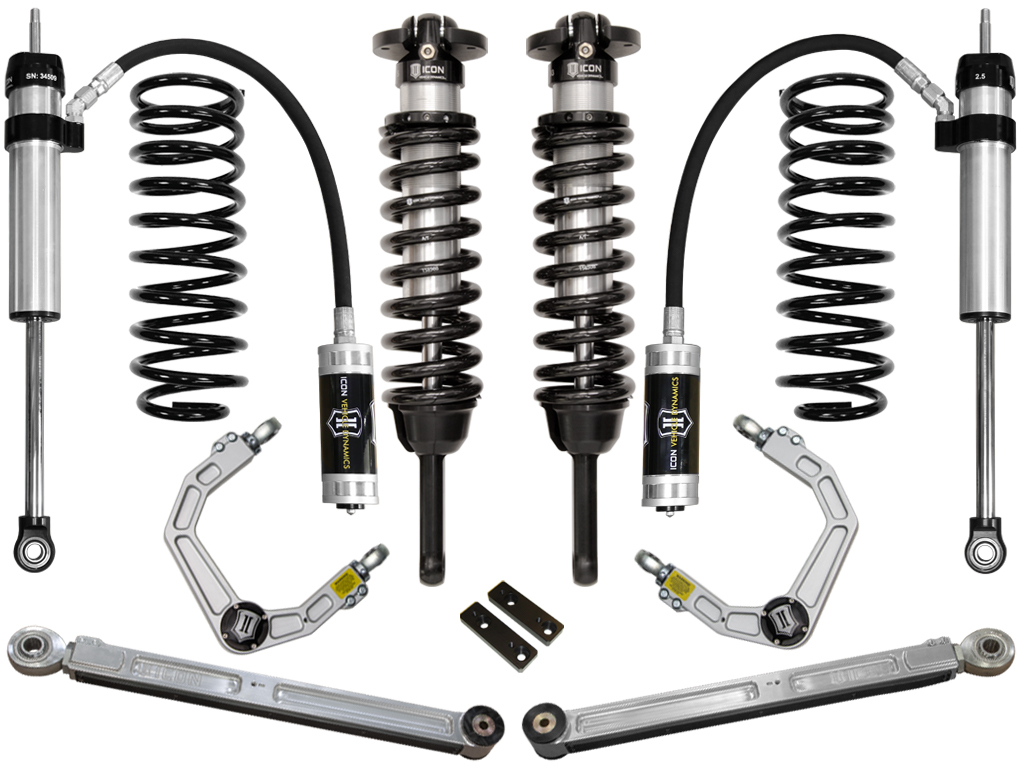

System Components:

  • Vehicle-specific tuned 2.5" extended travel coilover shocks with internal reservoir for superior cooling and damping performance
  • Height-adjustable coilovers providing 0-3.5" of front lift to accommodate larger, more aggressive wheel and tire combinations
  • Billet aluminum Delta Joint upper control arms with on-vehicle caster/camber adjustment for proper alignment at lifted heights
  • CNC machined 6061 anodized aluminum adjustable rear lower links with PTFE-lined FK rod ends and greaseable polyurethane bushings
  • ICON-engineered coil springs delivering 2" of rear lift for a level stance with superior on-road comfort and off-road capability
  • 2.5" Aluminum Series rear shocks with remote reservoirs for consistent damping and cooler operating temperatures

Delta Joint Technology:

This system features ICON's patented Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a traditional ball joint with the articulation performance of a uniball. The zinc-plated housing and tough grease seal provide superior corrosion resistance and protection from the elements. The metal-on-metal, greaseable design ensures longevity and noise-free operation while delivering greater angularity than typical ball joints and more robustness than standard uniballs.

Performance Features:

  • Extended travel coilovers matched with Delta Joint UCAs provide increased front droop travel for improved suspension articulation
  • Rear shock remote reservoirs with unique internal Bump Zone create an additional 20% damping force to control hard bottom outs
  • Double adjuster system on rear links allows precise on-vehicle length adjustment
  • Reduced deflection and increased articulation from premium FK rod ends and polyurethane bushings

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2010-2021 Toyota 4Runner; 2010-2014 Toyota FJ Cruiser; 1990-1993 Toyota Celica GTS/ST; 1992 Toyota Celica GT; 1982-1986 Pontiac Bonneville

Spring Color

Black

Maximum Lift

3.5

Coils Quantity Rear

2

Spring Rate

650

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Bushings Included

Yes

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

OEM Wheels & Tires Fitment

Yes

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Grade Type

Performance

Spring Material

Steel

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset

Shocks Included

Yes

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Mounting Hardware Included

Yes

Coils Quantity Front

2
