ICON Vehicle Dynamics K53055T Stage 5 Suspension System 0-3.5" Lift with Tubular UCA

(2003-2009 Toyota 4Runner; 2007-2009 Toyota FJ Cruiser; 1999-2005 Suzuki Grand Vitara; 1999-2004 Suzuki Vitara; 1990-1992 Volkswagen Corrado G60 + 1 more model)

Manufacturer

Part Number

K53055T
Black Friday Price

$4,103.83

$4,828.03 Save 15%

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 5 Suspension System delivers a comprehensive suspension upgrade for 2003-2009 Toyota 4Runner and 2007-2009 FJ Cruiser vehicles, providing significant improvements to both on-road comfort and off-road capability. This complete bolt-on system accommodates 0-3.5" of lift without requiring cutting or welding during installation.

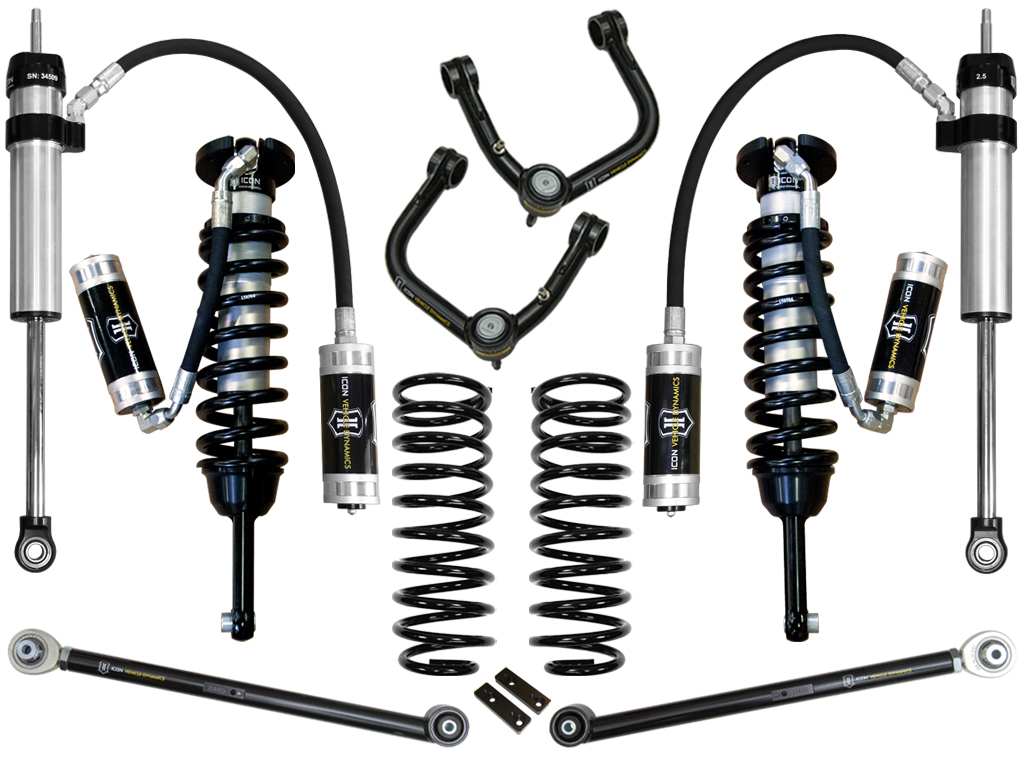

Complete System Components:

  • Extended travel 2.5 Series Remote Reservoir coilover shocks with vehicle-specific tuning
  • ICON tubular Delta Joint upper control arm kit for increased front droop travel
  • 2.5 Aluminum Series Remote Reservoir rear shocks with integrated remote reservoirs
  • 2" rear coil springs for proper lift and load support
  • Tubular rear lower link arm kit with pinion angle adjustment

Advanced Shock Technology:

The remote reservoir design increases shock oil volume and enhances cooling capacity, allowing sustained performance during extended off-road use without fade. ICON's proprietary "Bump Zone" technology increases damping force in the final 2" of compression travel, eliminating harsh bottom-out sensations and delivering controlled ride quality across varying terrain. The front coilovers work in harmony with the rear shocks to provide balanced damping characteristics throughout the vehicle.

Patented Delta Joint Upper Control Arms:

The system features ICON's innovative Delta Joint technology, which combines the durability of a heavy-duty ball joint with the articulation performance of a uniball. Unlike traditional uniballs that suffer from exposure to the elements, the Delta Joint features a zinc-plated housing for corrosion resistance and a robust grease seal to protect internal components. The metal-on-metal construction with greaseable design ensures longevity and noise-free operation while providing greater articulation angle than conventional ball joints.

Enhanced Rear Link System:

The tubular steel lower links significantly outperform OE units in strength and feature low-maintenance multi-durometer bushings. These links are adjustable to optimize pinion angle and are engineered to provide correct roll steer geometry for superior handling both on pavement and off-road.

Key Benefits:

  • Increased wheel travel and ride quality compared to stock suspension
  • Vehicle-specific tuned damping for superior shock control
  • Extended droop travel at the front axle for improved articulation
  • Enhanced strength and adjustability throughout the suspension system
  • Complete bolt-on installation with no fabrication required

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2003-2009 Toyota 4Runner; 2007-2009 Toyota FJ Cruiser; 1999-2005 Suzuki Grand Vitara; 1999-2004 Suzuki Vitara; 1990-1992 Volkswagen Corrado G60; 1992-1994 Volkswagen Corrado SLC

Bushings Included

Yes

Mounting Hardware Included

Yes

Grade Type

Performance

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Coil Spring End 2 Type

Open

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Add-On Part

252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)

Coil Spring End 1 Type

Square

Spring Rate

650

Add-On Part

191011 - TUBULAR UCA BILLET CAP SET

Maximum Lift

3.5

Coils Quantity Rear

2

Spring Material

Steel

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
