ICON Vehicle Dynamics K53055 Stage Suspension System Lift Billet UCA - 5 0-3.5

(2003-2009 Toyota 4Runner; 2007-2009 Toyota FJ Cruiser; 1982-1985 Toyota Celica GT/ST; 1983-1985 Toyota Celica GTS; 1977-1978 + 2 more models)

Manufacturer

Part Number

K53055
Black Friday Price

$4,952.60

$5,826.59 Save 15%

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

ICON Vehicle Dynamics Stage 5 Suspension System delivers a comprehensive performance upgrade for 2003-2009 Toyota 4Runner and 2007-2009 FJ Cruiser vehicles, providing 0-3.5" of lift with dramatically improved on and off-road capability. This complete bolt-on system requires no cutting or welding and features vehicle-specific tuned components for superior ride quality and control.

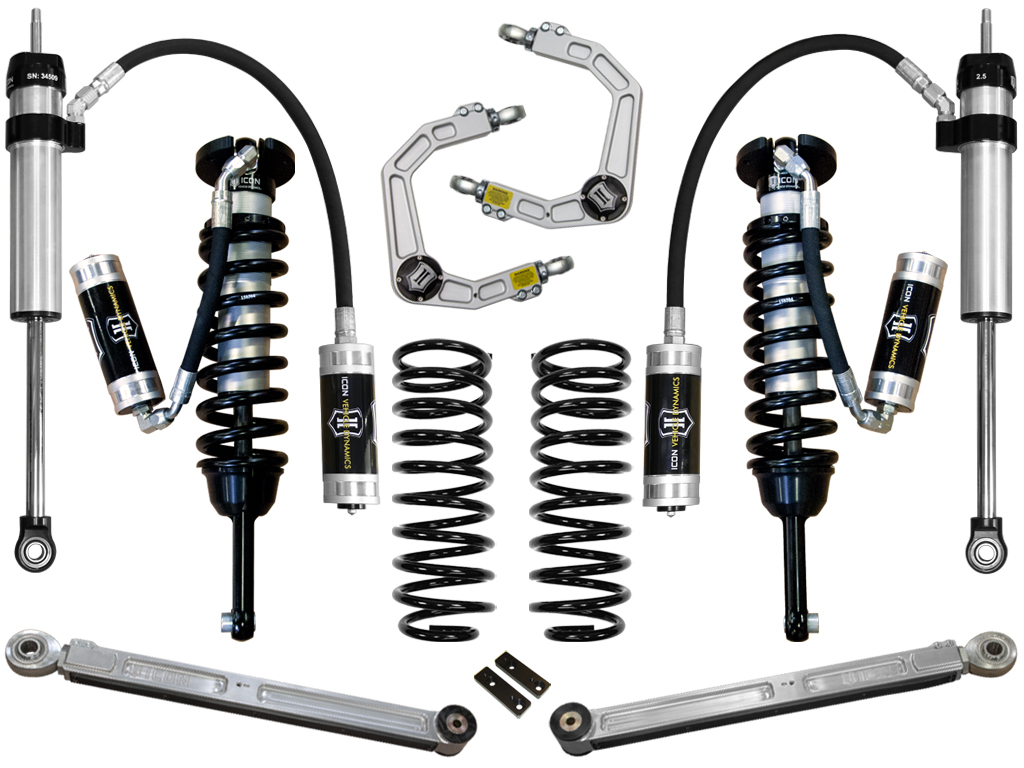

System Components:

  • Extended travel 2.5 Series Remote Reservoir coilover shocks with balanced front-to-rear damping
  • ICON billet aluminum Delta Joint upper control arm kit for increased front droop travel
  • 2.5 Aluminum Series Remote Reservoir rear shocks with "Bump Zone" technology
  • 2" rear coil springs for optimized lift height
  • Tubular billet aluminum rear lower link arm kit with on-vehicle pinion angle adjustment

Advanced Shock Technology:

  • Remote reservoir design increases shock oil volume and enhances cooling for extended hard use without fade
  • "Bump Zone" technology significantly increases damping in the last 2" of compression travel
  • Prevents harsh bottom-out sensation over varying terrain
  • Vehicle-specific tuning provides superior shock damping and control

Patented Delta Joint Upper Control Arms:

  • Combines durability of a ball joint with performance characteristics of a traditional uniball
  • Zinc plated housing with tough grease seal for corrosion resistance and element protection
  • Metal-on-metal greaseable design for longevity and noise-free operation
  • Greater angularity than typical ball joints while being more robust than uniballs
  • Ideal for daily driven applications with superior all-weather durability

Upgraded Rear Lower Links:

  • Billet aluminum construction significantly stronger than OE units
  • Greaseable dual stage bushing for smooth operation
  • Double adjuster allows fine-tuning of pinion angle while installed on vehicle
  • Engineered to provide correct roll steer geometry for optimal handling

Performance Benefits:

  • Increased wheel travel and ride quality compared to stock suspension
  • Balanced damping characteristics front to rear for controlled, predictable handling
  • Extended front droop travel when coilovers are paired with ICON upper control arms
  • Complete bolt-on installation with no permanent vehicle modifications

The Stage 5 system represents ICON's most comprehensive suspension upgrade for these platforms, building on the Stage 4 setup with the addition of extended travel front coilovers for a completely balanced suspension system. Whether tackling challenging off-road terrain or improving daily driving comfort, this system delivers measurable performance improvements across all driving conditions.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2003-2009 Toyota 4Runner; 2007-2009 Toyota FJ Cruiser; 1982-1985 Toyota Celica GT/ST; 1983-1985 Toyota Celica GTS; 1977-1978, 1980-1981 Pontiac Catalina Safari; 1977-1981 Pontiac Catalina Base

Bushings Included

Yes

Mounting Hardware Included

Yes

Grade Type

Performance

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Add-On Part

252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)

Spring Rate

650

Add-On Part

191011 - TUBULAR UCA BILLET CAP SET

Maximum Lift

3.5

Coils Quantity Rear

2

Spring Material

Steel

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
