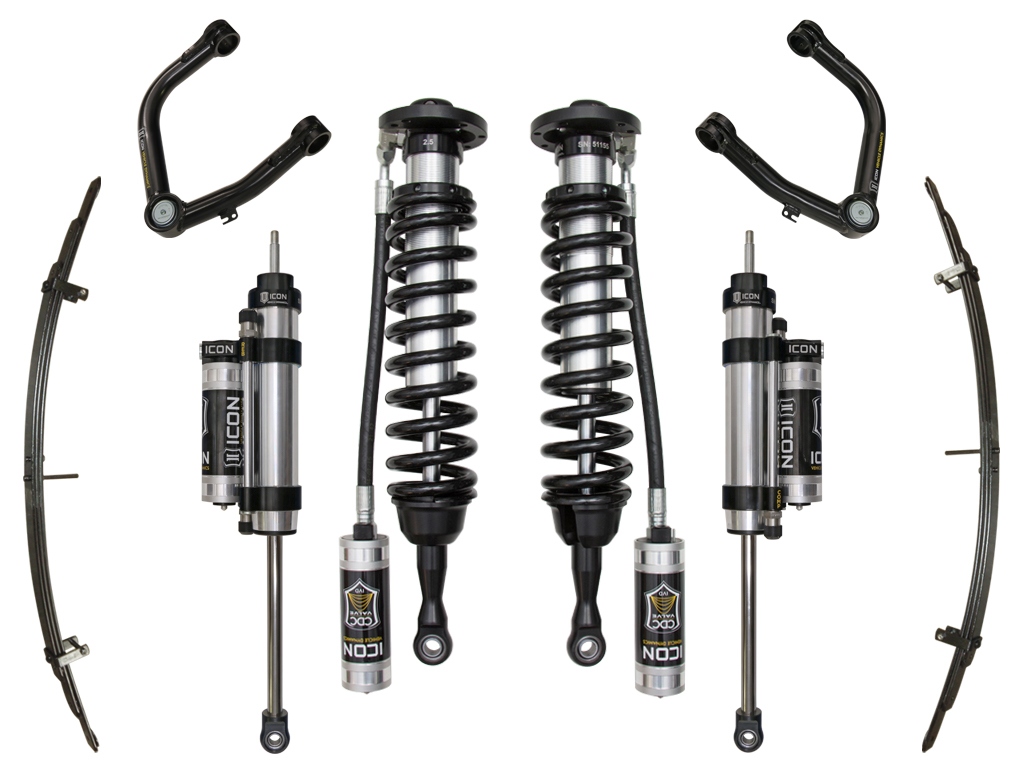

ICON Vehicle Dynamics K53027T Stage Suspension System Lift Tubular UCA Toyota Tundra - 7 1-3

(2007-2021 Toyota Tundra; 2012-2017 Toyota Camry; 2009-2012 Suzuki Equator)

Manufacturer

Part Number

K53027T
Black Friday Price

$4,708.33

$5,539.21 Save 15%

2 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 7 Suspension System is engineered for maximum performance on the 2007-2021 Toyota Tundra. This complete suspension upgrade delivers increased wheel travel and ride quality over stock while maintaining factory towing capacity, making it ideal for drivers who demand exceptional control both on-road and off-road.

Key Features:

  • Vehicle-specific tuned 2.5" coilover shocks with remote reservoirs for superior cooling performance
  • CDCV 10-way adjustable compression valve for custom tuning capability
  • Height adjustable from 1-3" of lift to accommodate larger, more aggressive wheel and tire combinations
  • Corrosion-resistant CAD plated coilover shock bodies with robust 7/8" shafts
  • ICON 2.5 VS Omega Series rear shocks with adjustable compression and rebound tuning
  • FK rod end bearings for extended service life and minimal deflection

Tubular Upper Control Arms with Patented Delta Joint Technology:

This system includes tubular upper control arms featuring ICON's innovative Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a traditional ball joint with the performance characteristics of a uniball. The Delta Joint features a zinc-plated housing for corrosion resistance and a robust grease seal that protects internal components from the elements. The metal-on-metal construction and greaseable design ensure long-term reliability and noise-free operation, delivering greater angularity than standard ball joints while being more robust than traditional uniballs.

The Stage 7 system is engineered for serious drivers seeking to maximize their Tundra's capabilities on pavement and in challenging off-road conditions, with comprehensive adjustability to fine-tune performance for any driving scenario.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2007-2021 Toyota Tundra; 2012-2017 Toyota Camry; 2009-2012 Suzuki Equator

Bushings Included

Yes

Mounting Hardware Included

Yes

Grade Type

Performance

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Leaf Spring Leaf Quantity

3

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Maximum Lift

3.5

Spring Material

Steel

Add-On Part

252012 - -4 TO -10 HOSE SHIELD KIT

Recommended Aftermarket Tires

35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5.625” Backspace / 16mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset

Add-On Part

56108 - 07-UP TUNDRA REAR HYD BUMP STOP KIT

OEM Wheels & Tires Fitment

Yes

Add-On Part

191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 6” Backspace / 25mm Offset

Add-On Part

191011 - TUBULAR UCA BILLET CAP SET
