ICON Vehicle Dynamics K53007T Stage 7 Tubular UCA Suspension System for Toyota Tacoma

(2005-2021 Toyota Tacoma; 2011 Toyota Avalon XLS; 2011-2012 Toyota Avalon Base; 2012 Toyota Avalon Limited; 2004-2008 Suzuki Forenza)

Manufacturer

Part Number

K53007T
Black Friday Price

$4,648.22

$5,468.49 Save 15%

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

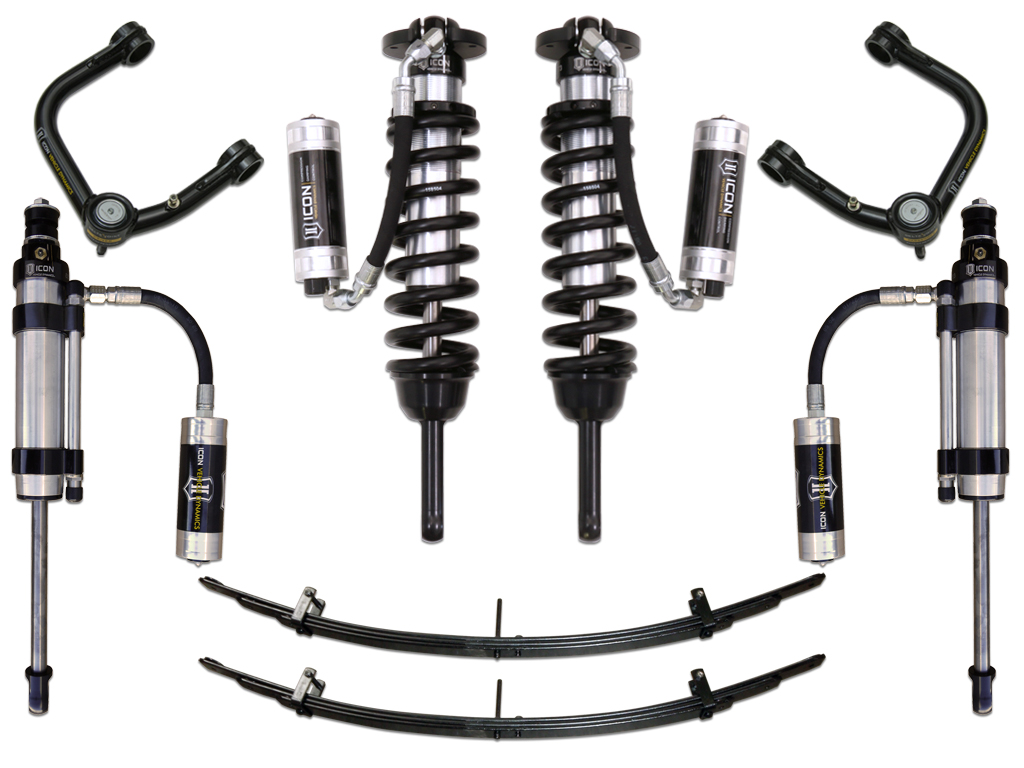

The ICON Vehicle Dynamics K53007T Stage 7 Suspension System is a comprehensive, performance-engineered lift kit designed for the Toyota Tacoma, offering 0–3.5" of front lift on 2005–2015 models and 0–2.75" of front lift on 2016–2023 models. Built with serious off-road drivers in mind, this system dramatically improves wheel travel, damping control, and overall ride quality both on and off the trail.

2.5" Extended Travel Front Coilovers with Remote Reservoirs

The front of the system is anchored by ICON's 2.5 Series Extended Travel coilover shocks, which feature remote reservoirs for improved shock cooling and consistent performance under hard use. Each coilover is equipped with an ICON CDC (Compression Damping Control) Valve—an externally adjustable valve that restricts oil flow into the reservoir, delivering 10 levels of compression damping adjustment from soft to firm. ICON-engineered coil springs complement the shocks for superior vehicle feel throughout the full range of travel. Ride height is fully adjustable within the lift range, accommodating larger and more aggressive wheel and tire combinations.

Tubular Upper Control Arms with ICON Delta Joint

The included ICON Tubular Upper Control Arm (UCA) kit corrects front-end geometry, adds built-in additional caster, and improves suspension component clearance. These control arms feature ICON's patented Delta Joint—a heavy-duty, high-angle ball joint that combines the durability of a traditional ball joint with the articulation performance of a uniball. Key Delta Joint features include:

  • Zinc-plated housing for corrosion resistance
  • Grease seal to keep contaminants out of the joint internals
  • Metal-on-metal construction with a greaseable design for extended longevity
  • Noise-free operation under daily driving and off-road conditions
  • Greater angularity than a standard ball joint, with more robustness than a traditional uniball

Rear Add-A-Leaf Kit

The included rear Add-A-Leaf Kit installs in place of the factory overload leaves, reducing the rear spring rate by approximately 10% for a more compliant, comfortable ride while also delivering 1.5" of rear lift over stock height.

2.5 Series Omega Bypass Rear Shocks

The rear suspension is completed with ICON 2.5 Series Omega Bypass shocks, featuring vehicle-specific valving, multiple shock damping zones, and 28 settings of compression and rebound adjustment. This gives drivers precise, tunable control over rear ride quality and performance in any driving condition.

Key Features:

  • Front lift range: 0–3.5" (2005–2015 Tacoma) / 0–2.75" (2016–2023 Tacoma)
  • 2.5 Series Extended Travel front coilovers with remote reservoirs
  • CDCV (Compression Damping Control Valve) — 10 external adjustment settings
  • Tubular upper control arms with patented Delta Joint technology
  • Corrected front-end geometry with added caster
  • Rear Add-A-Leaf kit — 1.5" rear lift, ~10% spring rate reduction
  • 2.5 Series Omega Bypass rear shocks — 28 compression and rebound settings
  • Increased wheel travel over factory suspension
  • Compatible with larger, more aggressive aftermarket wheel and tire fitments

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Products specifications

Fits

2005-2021 Toyota Tacoma; 2011 Toyota Avalon XLS; 2011-2012 Toyota Avalon Base; 2012 Toyota Avalon Limited; 2004-2008 Suzuki Forenza

Bushings Included

Yes

Mounting Hardware Included

Yes

Grade Type

Performance

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Spring Rate

650

Maximum Lift

3.5

Spring Material

Steel

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 20x9 with 5” Backspace / 0mm Offset

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Add-On Part

252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)

OEM Wheels & Tires Fitment

Yes

Add-On Part

252012 - -4 TO -10 HOSE SHIELD KIT

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Add-On Part

191011 - TUBULAR UCA BILLET CAP SET

Recommended Aftermarket Wheels

ICON Alloys | 18x9 with 5” Backspace / 0mm Offset

Add-On Part

56103 - 05-UP TACOMA REAR HYD BUMP STOP KIT
