ICON Vehicle Dynamics K53006 Stage Suspension System Toyota Tacoma Lift Billet UCA - 6 0-3.5

(2005-2021 Toyota Tacoma; 1987-1991 Toyota Camry; 1992-1994 Plymouth Sundance Duster)

Manufacturer

Part Number

K53006
Black Friday Price

$4,668.70

$5,492.59 Save 15%

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

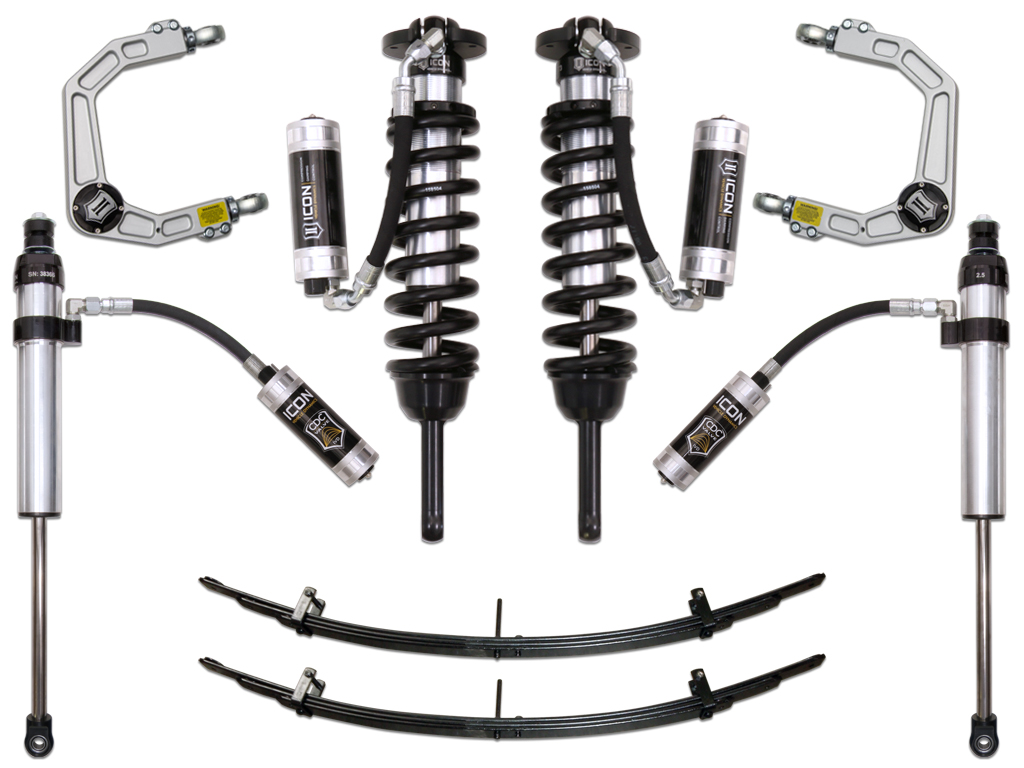

The ICON Vehicle Dynamics Stage 6 Suspension System is a premium performance upgrade designed for 2005-2015 Toyota Tacoma (0-3.5" lift) and 2016-2023 Tacoma (0-2.75" lift) models. Engineered for serious drivers who demand maximum capability both on-road and off-road, this comprehensive system delivers exceptional wheel travel, superior ride quality, and precise vehicle control through advanced damping technology and corrected suspension geometry.

Front Suspension Components:

  • 2.5" Extended Travel coilover shocks with remote reservoirs for maximum wheel travel and improved heat dissipation
  • Vehicle-specific tuned coil springs engineered for superior feel through the entire range of travel
  • Height adjustable from 0-3.5" lift (2005-2015) or 0-2.75" lift (2016-2023) to accommodate aggressive wheel and tire combinations
  • CDC Valves (Compression Damping Control Valves) provide 10 settings of externally adjustable compression damping
  • Billet aluminum upper control arms with corrected geometry for improved camber and caster adjustment
  • ICON Delta Joint replaces OE ball joint, eliminating bind while allowing full bump and droop travel

Rear Suspension Components:

  • 2.5" Aluminum Series Remote Reservoir shocks with CDCV and vehicle-specific valving
  • Add-A-Leaf kit replaces factory overload leaves, lowering spring rate by approximately 10% for improved compliance
  • Provides 1.5" of rear lift over stock height

Delta Joint Technology:

The patented ICON Delta Joint combines the durability of a heavy-duty ball joint with the performance characteristics of a traditional uniball. Featuring a zinc-plated housing for corrosion resistance, robust grease seals to protect against contaminants, and a greaseable metal-on-metal design, the Delta Joint delivers greater angularity than conventional ball joints while offering superior weather resistance compared to exposed uniballs. This innovative design ensures noise-free operation and extended service life in daily-driven applications.

Performance Benefits:

  • Dramatically increased wheel travel and damping ability compared to stock suspension
  • Remote reservoirs provide exceptional cooling properties and consistent performance under hard use
  • 10-position compression damping adjustment allows fine-tuning from soft to firm settings
  • Improved suspension component clearance and corrected front-end geometry
  • Balanced front-to-rear performance through matched valving

The Stage 6 system represents ICON's most comprehensive suspension upgrade for the Toyota Tacoma platform, ideal for enthusiasts seeking professional-grade performance, adjustability, and durability for both daily driving and demanding off-road use.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2005-2021 Toyota Tacoma; 1987-1991 Toyota Camry; 1992-1994 Plymouth Sundance Duster

Bushings Included

Yes

Mounting Hardware Included

Yes

Grade Type

Performance

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Leaf Spring Leaf Quantity

3

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Spring Rate

650

Maximum Lift

3.5

Spring Material

Steel

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Recommended Aftermarket Wheels

ICON Alloys | 20x9 with 5” Backspace / 0mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Wheels

ICON Alloys | 18x9 with 5” Backspace / 0mm Offset

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH
