ICON Vehicle Dynamics K53004 Stage 4 Suspension System for Toyota Tacoma with Billet Upper Control Arms

(2005-2021 Toyota Tacoma; 2018-2021 Toyota Land Cruiser Base; 2020-2021 Toyota Land Cruiser Heritage Edition; 1992-1994 Pontiac Bonneville)

Manufacturer

Part Number

K53004
Black Friday Price

$3,672.29

$4,320.34 Save 15%

In Stock (10)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 4 Suspension System is engineered for maximum performance and the serious Toyota Tacoma driver. This comprehensive system increases wheel travel and damping ability, delivering outstanding vehicle control and ride quality both on and off-road. The system is height adjustable from 0-3.5" of lift on 2005-2015 models or 0-2.75" on 2016-2023 models, allowing for larger, more aggressive wheel and tire combinations.

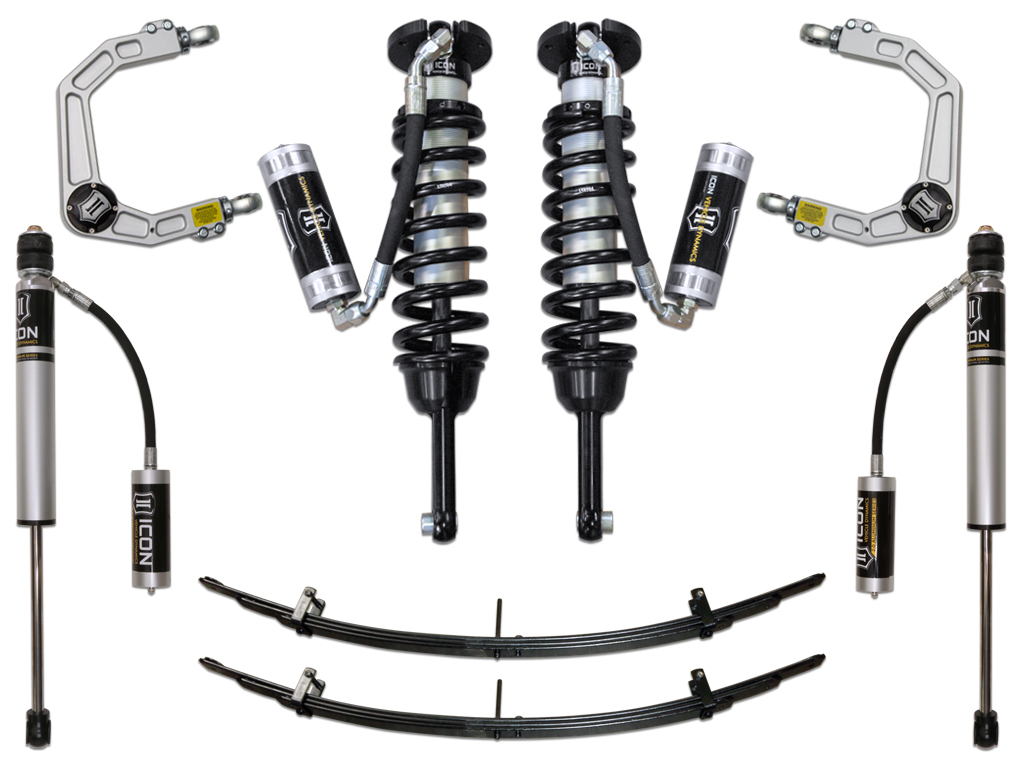

System Components:

  • Vehicle-specific tuned 2.5" Extended Travel coilover shocks with remote reservoirs for exceptional cooling and consistent performance under hard use
  • ICON-engineered coil springs for superior vehicle feel through the full range of travel
  • Billet aluminum upper control arm kit with patented Delta Joint technology
  • Rear Add-A-Leaf kit that lowers spring rate by approximately 10% for improved compliance and provides 1.5" of rear lift
  • ICON 2.0 Aluminum Series Remote Reservoir rear shocks with vehicle-specific valving

Delta Joint Technology:

The included upper control arms feature ICON's patented Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. The Delta Joint features a zinc-plated housing for corrosion resistance and a tough grease seal that keeps harmful elements out. The greaseable, metal-on-metal construction provides superior longevity and noise-free operation while allowing for greater angularity than typical ball joints and more weather resistance than standard uniballs.

Key Benefits:

  • Increased wheel travel and ride quality over stock suspension
  • Corrected front-end geometry with increased camber and caster adjustment
  • Improved suspension component clearance
  • Eliminates suspension bind through full bump and droop travel
  • 6061 aircraft-grade aluminum CNC machined components
  • Balanced front-to-rear performance for enhanced on-road and off-road capability

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2005-2021 Toyota Tacoma; 2018-2021 Toyota Land Cruiser Base; 2020-2021 Toyota Land Cruiser Heritage Edition; 1992-1994 Pontiac Bonneville

Aftermarket Wheels

8" Wide Wheel with 5" Backspace

Bushings Included

Yes

Mounting Hardware Included

Yes

Grade Type

Performance

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Leaf Spring Leaf Quantity

3

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Spring Rate

650

Maximum Lift

3.5

Spring Material

Steel

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Wheels

ICON Alloys | 20x9 with 5” Backspace / 0mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 18x9 with 5” Backspace / 0mm Offset

Add-On Part

198001 - BILLET SPANNER WRENCH KIT
