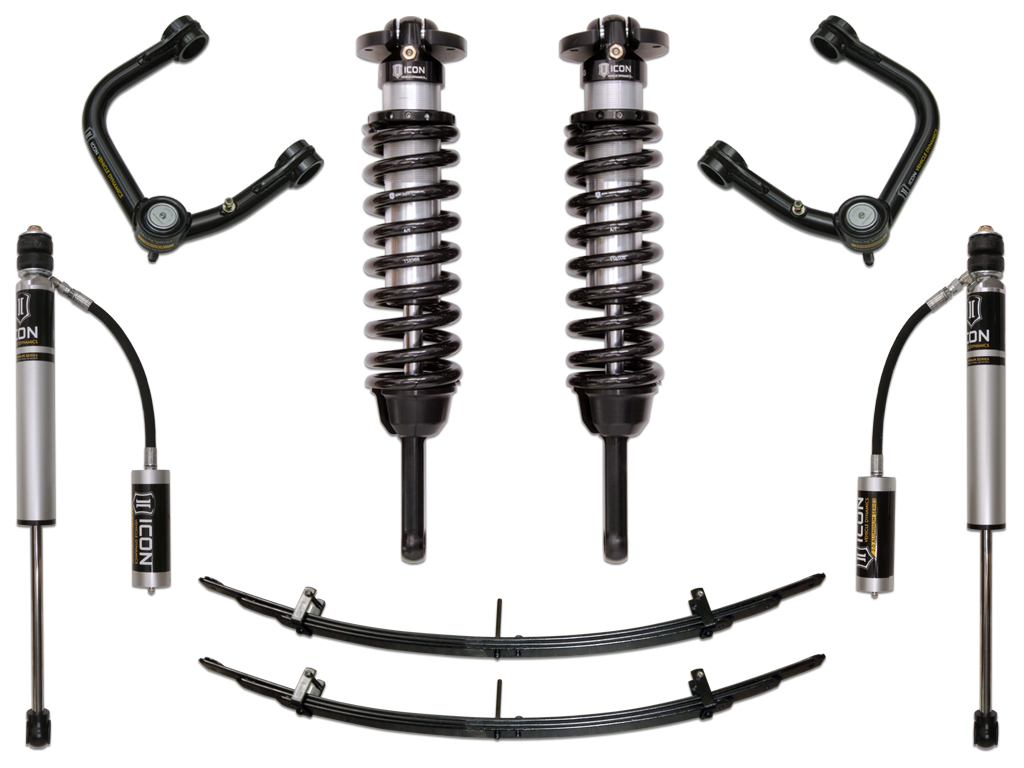

ICON Vehicle Dynamics K53003T Stage Suspension System for Toyota Tacoma with Tubular UCA - 3

(2005-2021 Toyota Tacoma; 1987-1988 Toyota Corolla FX16/FX16 GTS; 1964-1972 Volkswagen Beetle Base; 1971-1972 Volkswagen Super Beetle Base)

Manufacturer

Part Number

K53003T
Sale Price

$3,256.74

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 3 Suspension System transforms your Toyota Tacoma's performance both on and off-road with a complete front and rear upgrade engineered for serious drivers. This comprehensive system delivers increased wheel travel, superior damping control, and adjustable ride height to accommodate aggressive wheel and tire combinations.

Front Suspension Components:

  • Vehicle-specific tuned 2.5" Extended Travel coilover shocks with internal reservoir for exceptional heat dissipation
  • Height adjustable from 0-3.5" of lift (2005-2015 models) or 0-2.75" (2016-2023 models)
  • ICON-engineered coil springs optimized for superior vehicle feel throughout the travel range
  • Corrosion-resistant CAD plated shock bodies with robust 7/8" shafts
  • 6061 aircraft-grade aluminum CNC machined components
  • Tubular upper control arms with corrected geometry and built-in additional caster
  • ICON Delta Joint replaces OE ball joint for full bump and droop travel without bind

Rear Suspension Components:

  • ICON 2.0 Aluminum Series Remote Reservoir shocks with vehicle-specific valving
  • Add-A-Leaf kit that replaces factory overload leaves
  • Approximately 10% lower rear spring rate for improved compliance
  • 1.5" of rear lift over stock height

Delta Joint Technology:

The included upper control arms feature ICON's patented Delta Joint, a heavy-duty high-angle ball joint that combines durability with superior articulation. Unlike traditional uniballs that suffer from exposure to elements, the Delta Joint features a zinc-plated housing and tough grease seal for corrosion resistance. The greaseable metal-on-metal design ensures longevity and noise-free operation while delivering greater angularity than typical ball joints and more durability than uniballs.

This Stage 3 system is the ideal choice for Tacoma owners seeking to maximize their truck's capabilities on pavement and trails while maintaining daily drivability. The balanced front-to-rear performance and extended travel characteristics provide exceptional vehicle control and ride quality in all conditions.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2005-2021 Toyota Tacoma; 1987-1988 Toyota Corolla FX16/FX16 GTS; 1964-1972 Volkswagen Beetle Base; 1971-1972 Volkswagen Super Beetle Base

Bushings Included

Yes

Mounting Hardware Included

Yes

Grade Type

Performance

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Leaf Spring Leaf Quantity

3

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Spring Rate

650

Maximum Lift

3.5

Spring Material

Steel

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Wheels

ICON Alloys | 18x9 with 5” Backspace / 0mm Offset

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 20x9 with 5” Backspace / 0mm Offset

Add-On Part

198001 - BILLET SPANNER WRENCH KIT
