ICON Vehicle Dynamics 95120 Rear Hydraulic Air Bump Stop Kit 2010-2014 Ford Raptor

(2010-2014 Ford F-150; 2007-2010 Saturn Sky Base/Red Line; 1997-1998 Oldsmobile Regency Base)

Manufacturer

Part Number

95120
Black Friday Price

$1,876.12

$2,207.20 Save 15%

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Rear Hydraulic Bumpstop System delivers comprehensive suspension control for 2010-2014 Ford Raptor owners pushing their trucks beyond factory limits. This sophisticated hydro-pneumatic system replaces the inadequate factory foam rubber bumpstops with a fully engineered solution that prevents frame damage while maximizing suspension performance.

How It Works:

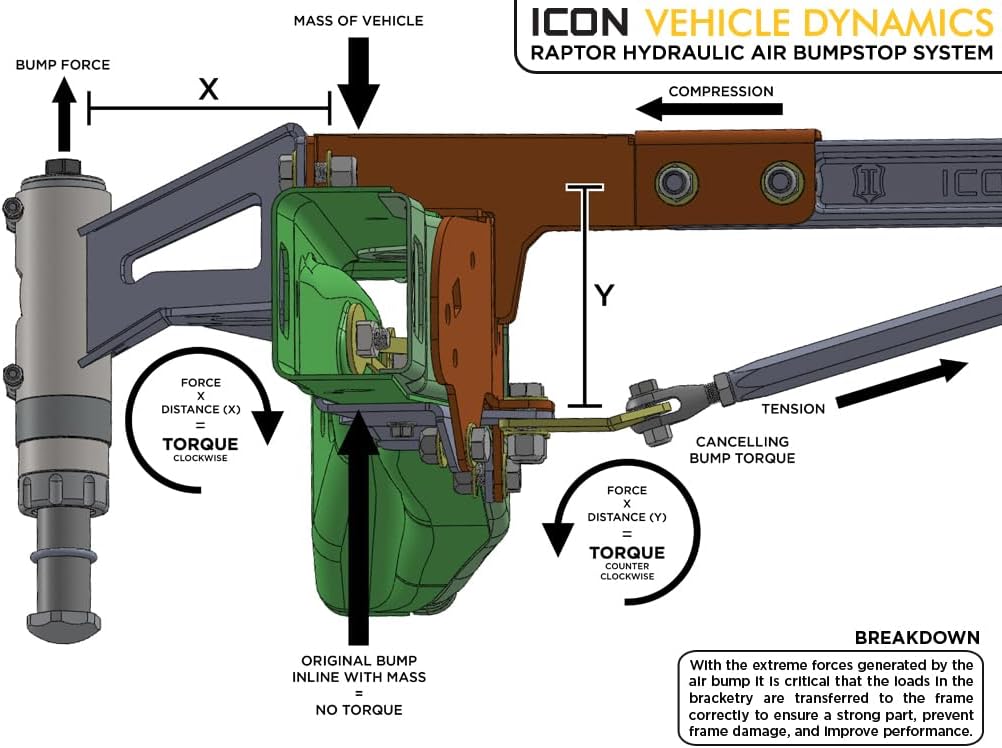

Unlike factory bumpstops that can squish out and allow damaging metal-to-metal contact, ICON's hydraulic air bumps use nitrogen and oil to perform dual functions. The internal nitrogen charge compresses to act as a progressive spring with adjustable impact forces—soft at initial contact, ramping to maximum resistance at full compression. The oil-damped piston controls energy return to reduce vehicle kick and manages compression speed, critical for high-speed off-road impacts.

Key Features:

  • 2.5-inch travel hydro-pneumatic air bump provides extended energy control distance
  • 6061 billet aluminum crossbar with polished and anodized finish

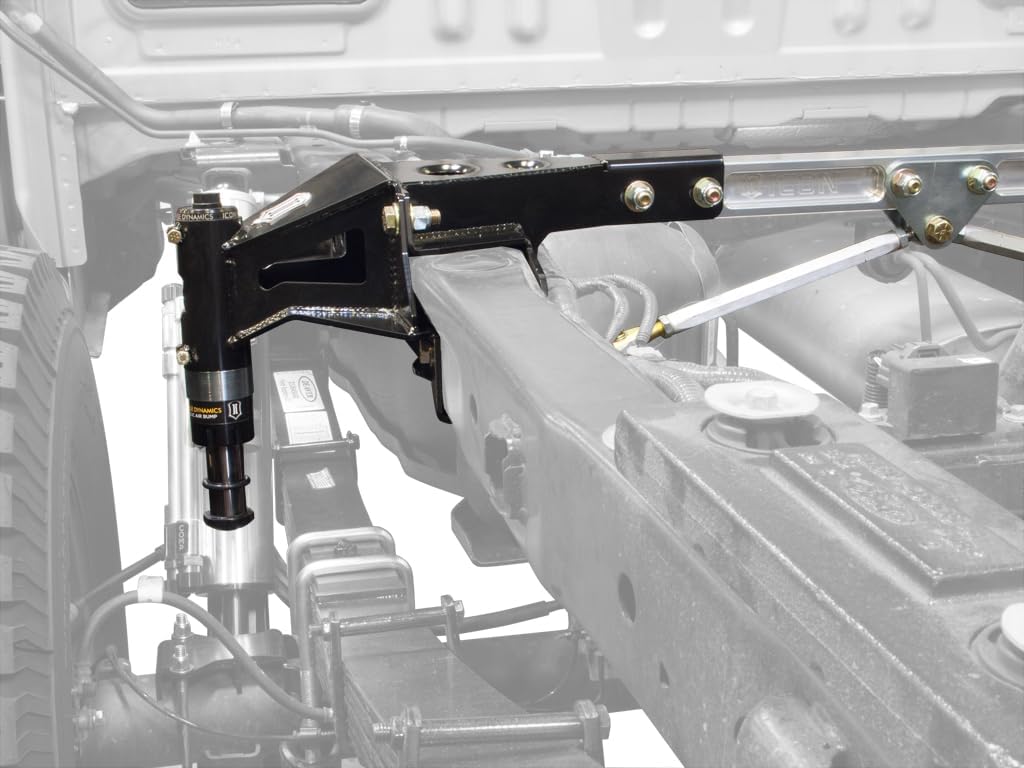

  • Clamshell bracket design with triangulated cross braces reinforces weak factory frame areas
  • Designed for increased leaf spring clearance with no loss of up-travel on stock or aftermarket springs
  • Bolt-on installation without bed removal required
  • Tunable system: soft and compliant at slow speeds, high resistance at extreme speeds
  • Maintains comfortable on-road manners while providing extreme load damping capability

The result is a dynamic suspension control system that allows full travel under normal driving conditions while preventing bottoming out during aggressive off-road use. Extensively tested and tuned by ICON Vehicle Dynamics to protect your frame and maximize your Raptor's capability.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2010-2014 Ford F-150; 2007-2010 Saturn Sky Base/Red Line; 1997-1998 Oldsmobile Regency Base

Diameter

2

Length

2.5

Attachment Type

Bolt On

Grade Type

Performance

Mounting Hardware Included

Yes

Color

Black

Bumper Type

Hydraulic

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Bumper Material

Hydraulic

Service Parts

202004 - 2.0 AIR BUMP REBUILD KIT
