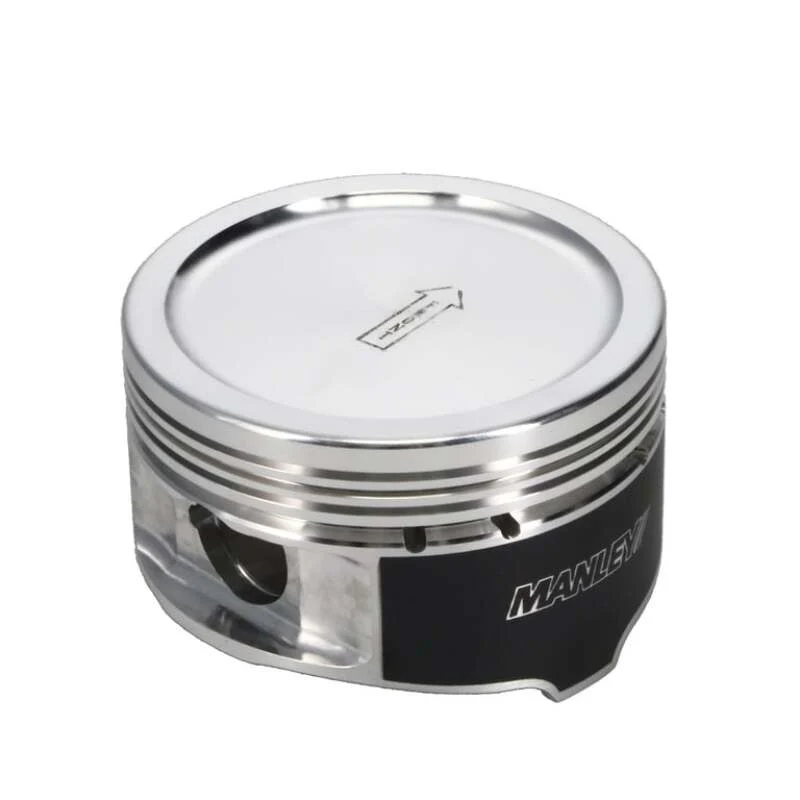

Manley 595670C-8 Forged Pistons 3.700" Bore 1.200" Compression Height Coated

The Manley 595670C-8 is a Platinum Series forged piston set engineered for Ford 4.6L Modular stroker applications. This 8-piston set features a 3.700" bore diameter, 1.200" compression height, and a -28cc dished design for optimized compression ratios in forced induction and high-performance naturally aspirated builds.

Premium Construction and Features:

• 2618 Alloy Forgings: Manufactured from domestic 2618 alloy for superior strength and durability under extreme conditions
• Moly Coated Skirts: Factory-applied molybdenum coating reduces friction and protects cylinder walls
• Premium Chrome Moly Wrist Pins: Includes tool steel wrist pins and round wire locks standard with every set
• Cam and Barrel Skirt Profiles: Proven piston skirt geometry generates substantial power while minimizing cylinder wall wear
• Perfect Ring Groove Squareness: Unique one-operation fixturing process ensures precise ring groove to skirt alignment for maximum ring seal and horsepower
• Exacting Ring Lands and Grooves: Strict manufacturing tolerances result in enhanced ring seal and increased power output
• Pressure Balance Grooves: Included to equalize pressures and improve piston stability
• Lateral Gas Ports: Optimizes combustion chamber sealing and ring performance

Designed for professional engine builders and performance enthusiasts, these pistons are ideal for stroker combinations and provide the strength needed for turbocharged, supercharged, and high-horsepower naturally aspirated Ford Modular engines. Each piston set includes all necessary hardware for installation.
