Wiseco 6398RX3903 Professional Series Chevy LS Forged Piston 3.903 in. Bore Flat Top Single

(1998-2002 Chevrolet Camaro SS/Z28; 1997-2004 Chevrolet Corvette Base; 2004 Pontiac GTO; 1998-2002 Pontiac Firebird Formula)

Manufacturer

Part Number

6398RX3903
Black Friday Price

$145.99

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

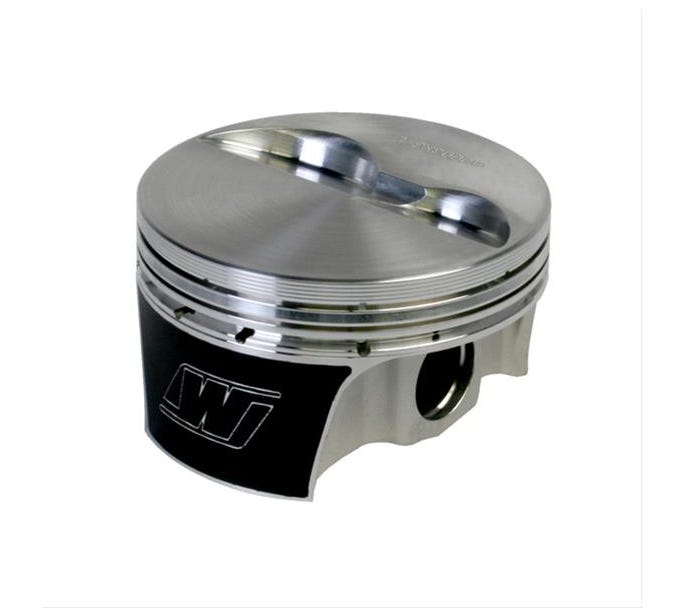

The Wiseco 6398RX3903 is a Professional Series shelf-stock, right-side forged piston engineered for Chevrolet LS platform engines. Featuring a 3.903-inch bore and a -3.2cc flat-top crown with valve reliefs, this piston is purpose-built for high-performance street and race applications demanding maximum strength and reliability. Sold individually as a right-side (RX) replacement unit.

Key Features:

  • 2618 forged aluminum construction — high-strength alloy delivers superior tensile strength and fatigue resistance for power-adder and boosted builds
  • Strutted forging design — dedicated LS-specific forging optimizes strength-to-weight ratio
  • ArmorGlide® skirt coating — reduces operating friction, minimizes wear, and allows tighter piston-to-wall clearances for quieter operation
  • -3.2cc flat-top crown with valve pockets — precision-machined crown features for optimized combustion efficiency
  • Precision ring grooves — top and second compression ring thickness of 0.047 in.; oil ring groove accepts 3.0mm oil ring
  • Floating wrist pin design — 0.927-inch pin diameter; wrist pin included (5115 steel)
  • Reluctor ring clearance — accommodates reluctor ring on stroker cranks without notching pin bosses
  • Engineered and machined in the USA — manufactured at Wiseco's Mentor, Ohio facility

Specifications:

  • Bore Diameter: 3.903 in.
  • Compression Height: 1.304 in.
  • Wrist Pin Diameter: 0.927 in.
  • Piston Volume: -3.20 cc (Flat Top)
  • Stroke: 3.622 in.
  • Rod Length: 6.125 in.
  • Top Compression Ring Thickness: 0.047 in.
  • Second Compression Ring Thickness: 0.047 in.
  • Oil Ring Thickness: 3.0mm
  • Piston Material: 2618 Aluminum
  • Wrist Pin Material: 5115 Steel
  • Sold: Individually (Right Side)

Wiseco's Professional Series pistons are the no-compromise choice for serious engine builders and racers. Whether the application calls for forced induction, nitrous, or naturally aspirated high-revving builds, the 6398RX3903 delivers the durability and precision needed to support extreme power levels on the Chevrolet LS platform.

Products specifications

Fits

1998-2002 Chevrolet Camaro SS/Z28; 1997-2004 Chevrolet Corvette Base; 2004 Pontiac GTO; 1998-2002 Pontiac Firebird Formula

Bore

3.895

Comp Ratio @ 65CC

10.6:1

Comp Ratio @ 67CC

10.4:1

Comp Ratio @ 68CC

10.2:1

Comp Ratio @ 70CC

10:1

Dome Volume

-3.2

Gram Weight

423

Rod

6.098 / 6.125

Stroke

3.622

Piston Quantity

1

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Engine

LS

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Industry

Automotive

Product Market

Domestic

Engine Type

ICE

Bore Diameter

3.903

Oil Ring Thickness

3.0

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Second Compression Ring Thickness

0.047

Top Compression Ring Thickness

0.047

EBAY Category ID

33623

Engine - Web

LS

Make - Web

Chevrolet

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Piston Volume

-3.20

Title

Wiseco - Chevrolet, LS, 3.903 in. Bore, Piston

Compression Height

1.3045

Title - Web

Professional Chevy LS Piston - 3.903 in. Bore - 1.3045 .in CH, -3.20 CC
