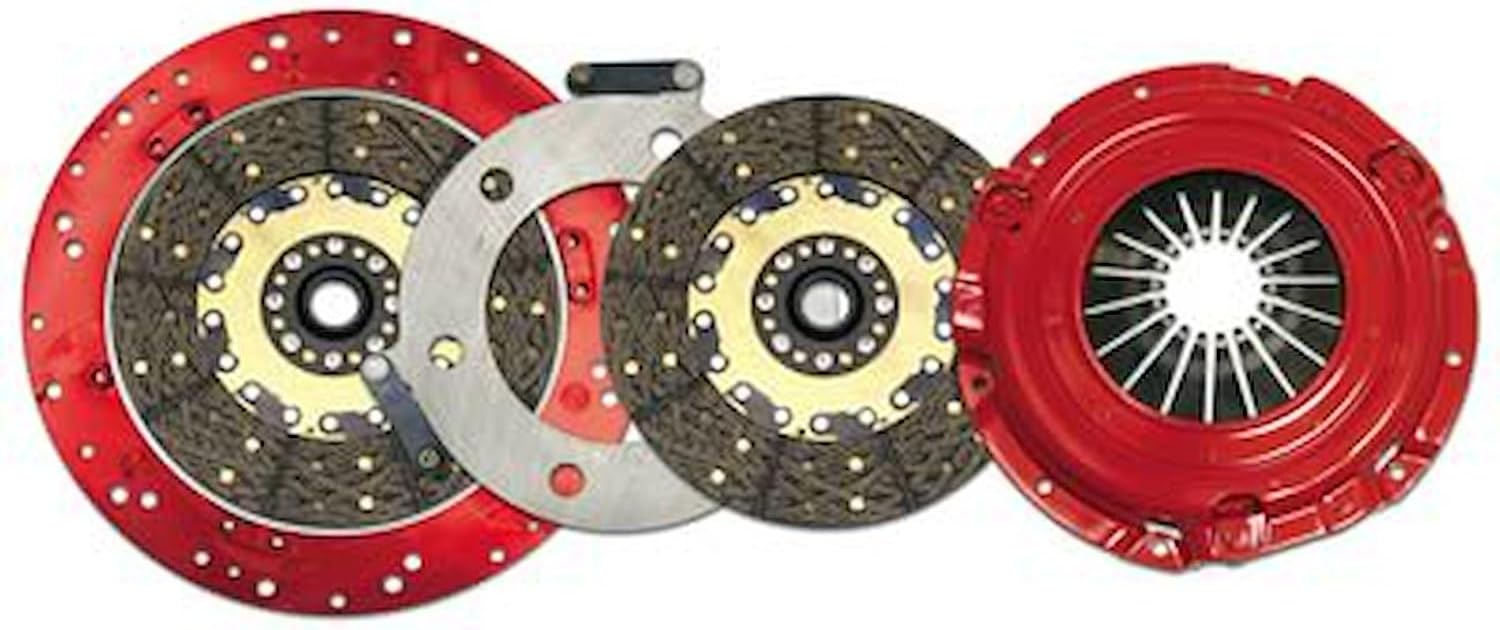

McLeod 6911-04 RST Twin Disc Clutch Kit Diameter Spline - 9.687 1-1/8x10

(Chevrolet Camaro 1967-85, 1987-90, Corvette 1955-82, 1984-90, Impala 1958-85, Malibu 1964-67, 1973-83, C1500 1988-90, Chevelle 1964-77 + 205 more models)

Part of: McLeod RST Twin Disc Clutch Kit Diameter Spline

Other options in this family: McLeod 6913-07 McLeod 6913-03 McLeod 6911-07 McLeod 6913-04 McLeod 6911-03

Manufacturer

Picture for manufacturer McLeod

Part Number

6911-04
5 reviews
Sale Price

$795.54

1 left at this price

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The McLeod RST twin disc clutch kit is engineered for high-horsepower street applications, delivering an economical solution for drivers seeking serious performance without sacrificing drivability. With a power handling capacity of up to 800 horsepower, this clutch system provides the strength and reliability needed for aggressive street builds while maintaining excellent street manners.

Key Features:

  • 9.687-inch diameter clutch discs for large diameter flywheel applications
  • 1-1/8 inch diameter spline with 10 splines for secure shaft engagement

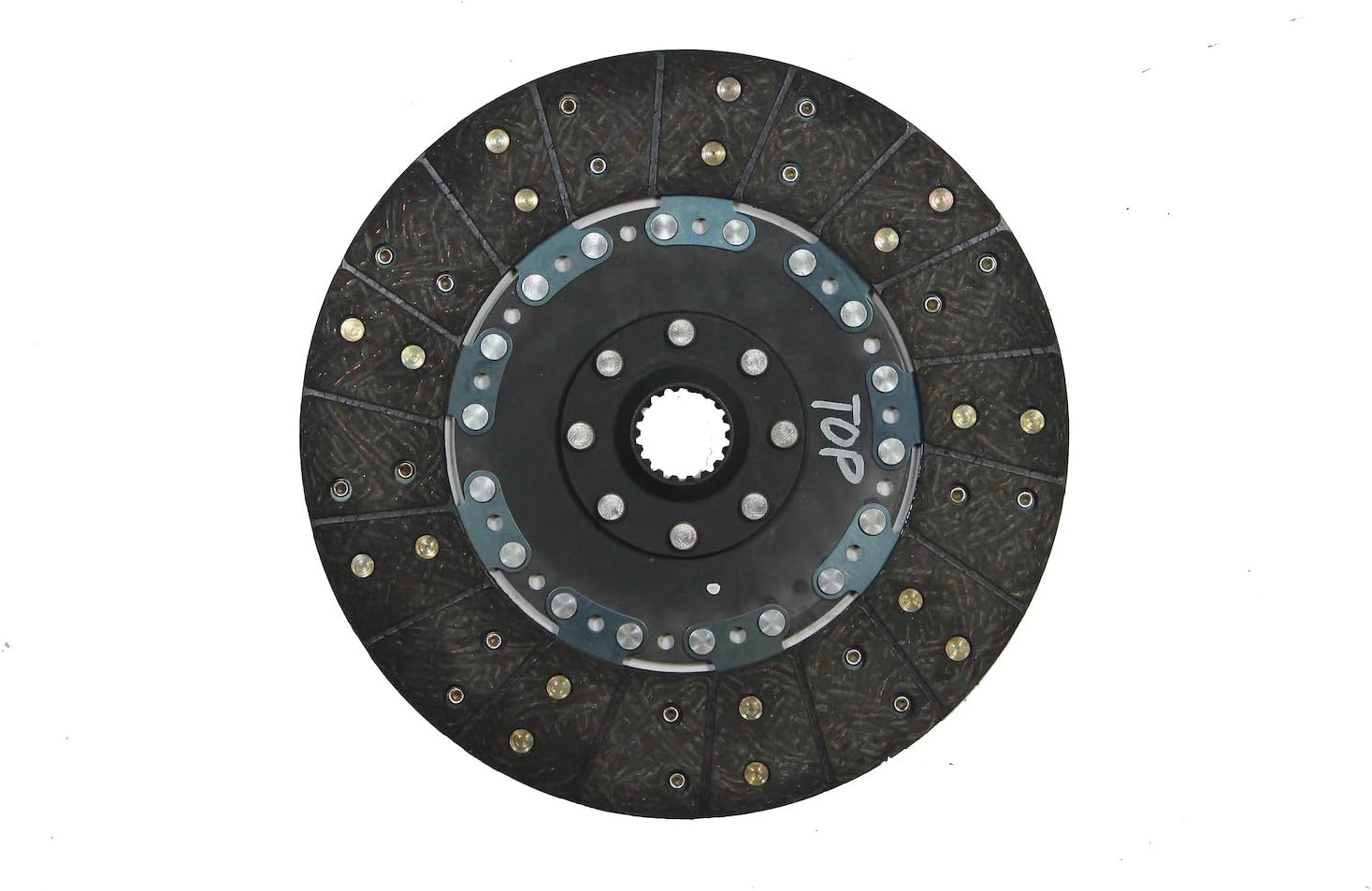

  • Organic-lined clutch discs provide smooth, progressive engagement
  • Soft pedal effort for comfortable street driving
  • Rated for up to 800 horsepower
  • Twin disc design for increased clamping force and heat dissipation
  • Adapter ring configuration allows installation on supplied flywheel

Applications:

This RST series clutch is specifically designed for street-only performance applications. The organic disc material and twin disc configuration strike an ideal balance between holding power and daily drivability. The adapter ring version utilizes McLeod's patented-approved adapter ring design, allowing the twin disc assembly to bolt directly to your existing large diameter flywheel.

Important Note:

This clutch kit is intended for street use only and is not designed for competition applications. For racing applications requiring higher power handling or more aggressive engagement characteristics, McLeod recommends their RXT or RXT 1200 series clutches.

McLeod Racing designs their RST series in multiple configurations to suit different installation requirements, including adapter ring versions for custom flywheel applications and complete dedicated units with matched flywheels available in billet steel or billet aluminum construction.

Products specifications

Fits

Chevrolet Camaro 1967-85, 1987-90, Corvette 1955-82, 1984-90, Impala 1958-85, Malibu 1964-67, 1973-83, C1500 1988-90, Chevelle 1964-77, Blazer 1969-90, K1500 1988-90, C10 Pickup 1960-85, Caprice 1966-85, C10 1975-86 + 200 more models

Disc Diameter (in)

9.688 in.

Disc Diameter (mm)

246mm

Disc Style

Sprung hub

Input Shaft Diameter (in)

1.125 in.

Notes

Designed to fit 166 or 168-tooth flywheels.

Pressure Plate Style

Long

Quantity

Sold as a kit.

Disc Diameter

9-11/16"

Clutch Patterns

10",10.5" & 10.95" B-B & Diaphragm

Flywheel Fitment

Fits 143 Tooth Flywheel

Horsepower Rating

800

Hub Style

Solid

magento _type

simple

Magento category

Clutch Kits

magento status

1

magento tax_class_id

2

magento visibility

3

magento_atrribute_set

Clutch Kits

magento_product_web

base

magento_store

default

Make

Buick

Number of Discs

Double

OE Flywheel Size

Large

Spline

1 1/8" x 10

Hardware Included

No

Clutch Patterns 4

11In. Ford Truck Even Pattern

Throwout Bearing Style

Standard

Clutch Patterns 2

11.5In.,12In. Ford Long

Throwout Bearing Included

No

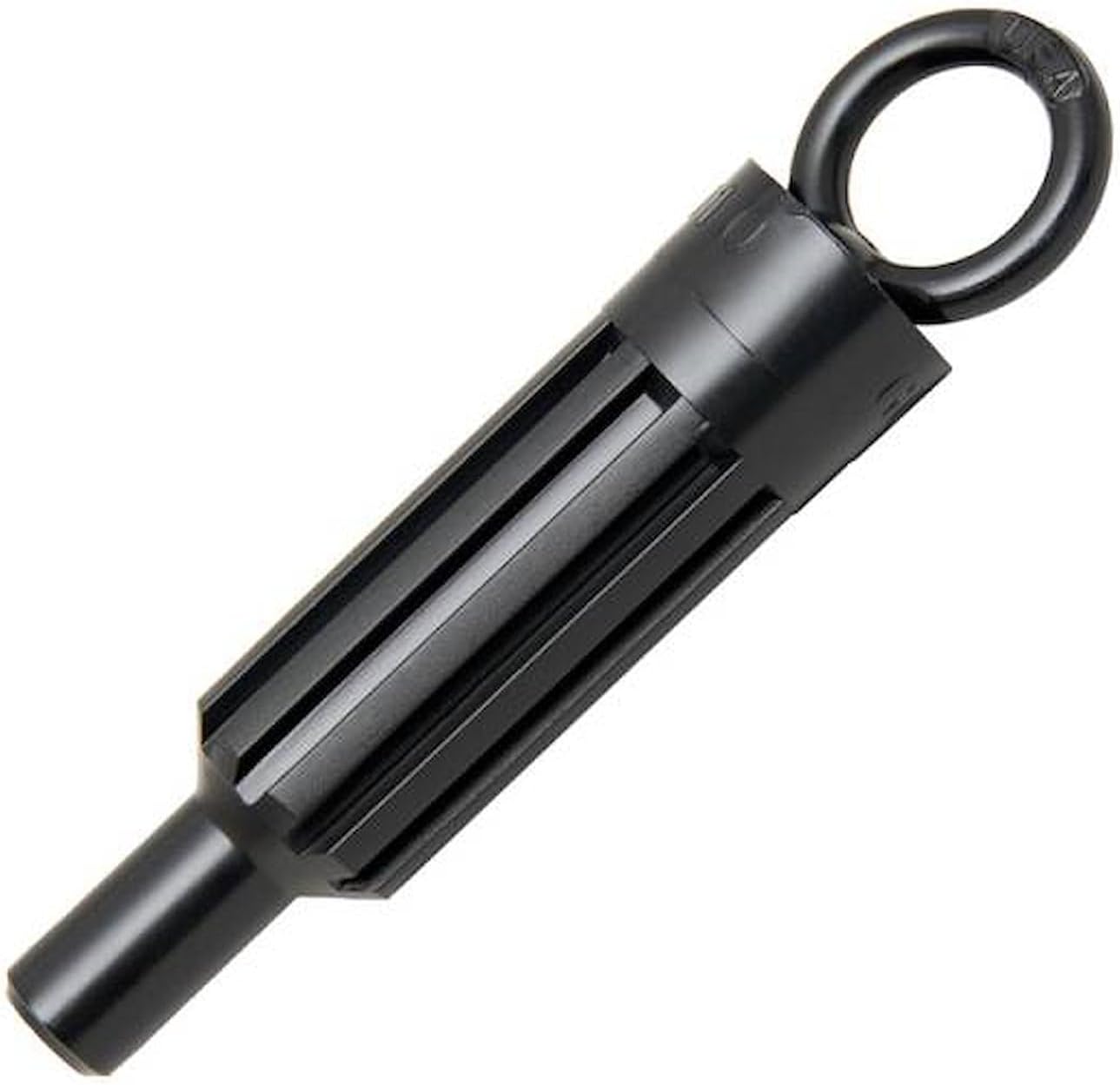

Alignment Tool Included

Yes

Pilot Bushing Included

No

Clutch Usage

Street

Clutch Patterns

11In. Ford Long

Pressure Plate Style

Diaphragm

Disc Diameter

9-11/16In.

Disc Material

Organic

NOTE:

Adapter Ring fits flywheels with the following Ring Gears, Ford 164T, 176T, 180T, 184T. Chevy 168T, Chrysler 143T, 172T. Buick, Olds, Pontiac 160T, 166T

Flywheel Included

No

Clutch Patterns 3

11In.,12In. Borg & Beck

Make

GM

Disc Style

Solid Hub

Clutch Usage

Performance

Disc Style

Full Face

Input Spline Quantity

10

Hardware Included

Yes
