Weld Racing Wheels 90-514422 15x14 Drag Racing Wheel 5x5 Bolt Pattern 6.55 BS

Part of: Weld Racing Wheels Draglite Polished Aluminum Wheel

Other options in this family: Weld Racing Wheels 90-58350 Weld Racing Wheels 90-510348 Weld Racing Wheels 90-510350 Weld Racing Wheels 90-57348 Weld Racing Wheels 90-510354

Manufacturer

Picture for manufacturer Weld Racing Wheels

Part Number

90-514422
6 reviews
Sale Price

$565.00

Estimated ship date Tuesday, November 24

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Show details for Weld Racing Wheels 90-514422 15x14 Drag Racing Wheel 5x5 Bolt Pattern 6.55 BS

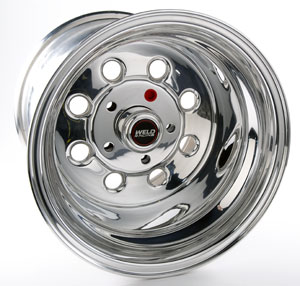

Picture of Weld Racing Wheels 90-514422 15x14 Drag Racing Wheel 5x5 Bolt Pattern 6.55 BS

Wheels and Tires sold separately

Weld Racing Wheels 90-514422 15x14 Drag Racing Wheel 5x5 Bolt Pattern 6.55 BS — image 1
Weld Racing Wheels 90-514422 15x14 Drag Racing Wheel 5x5 Bolt Pattern 6.55 BS — image 2
Product Details

The Weld Racing 90-514422 is a purpose-built drag racing wheel designed for maximum performance on the strip. Measuring 15 inches in diameter and 14 inches wide, this wheel is engineered to accommodate wide drag slicks and provide the optimal contact patch for hard launches and consistent 60-foot times.

Weld Racing is a trusted name in motorsports, and this wheel is manufactured in the USA using premium aluminum alloy for an exceptional strength-to-weight ratio. The bead-lock-compatible construction and race-proven design make it a favorite among bracket racers, street/strip enthusiasts, and serious drag competitors.

Key Specifications:

  • Diameter: 15 inches
  • Width: 14 inches
  • Bolt Pattern: 5x5 (5-lug, 5.00" bolt circle)
  • Backspacing: 6.55 inches
  • Construction: Aluminum alloy
  • Intended Use: Drag racing / strip performance

Weld Racing wheels meet the demands of high-horsepower applications where reliability, consistency, and light weight are critical. The 90-514422 is a direct-fit solution for racers seeking proven performance in a wide-rim drag wheel configuration.

Products specifications

Application Notes

For Drag Race use only.

Backspacing (in)

6.500 in.

Beadlock Functional

No

Beadlock Included

No

Center Bore Diameter (in)

3.180 in.

Center Cap Included

Yes

Hub Centric

No

Lug Nut Seat Style

Shank

Lug Nut Shank Diameter (in)

0.679-0.687 in.

Lug Nut Shank Length (in)

1.300-1.380 in.

Manufacturers Wheel Series

Weld Racing Draglite Series

Notes

Will not fit applications with 14mm studs. The factory warranty will become void if used on any type of sports racing, road race, solo, 4WD, off-road, towing, vehicles exceeding 4,800 GVW, or the use of 31 in. or taller tires.

Offset

-25.00mm

Primary Wheel Color

Polished

Quantity

Sold individually.

Valve Stems Included

Yes

Washer Outside Diameter (in)

1.250 in.

Wheel Bolt Pattern

5 x 5 in.

Wheel Construction

2-piece

Wheel Diameter

15 in.

Wheel Finish

Polished

Wheel Material

Aluminum

Wheel Width (in)

14.000 in.
