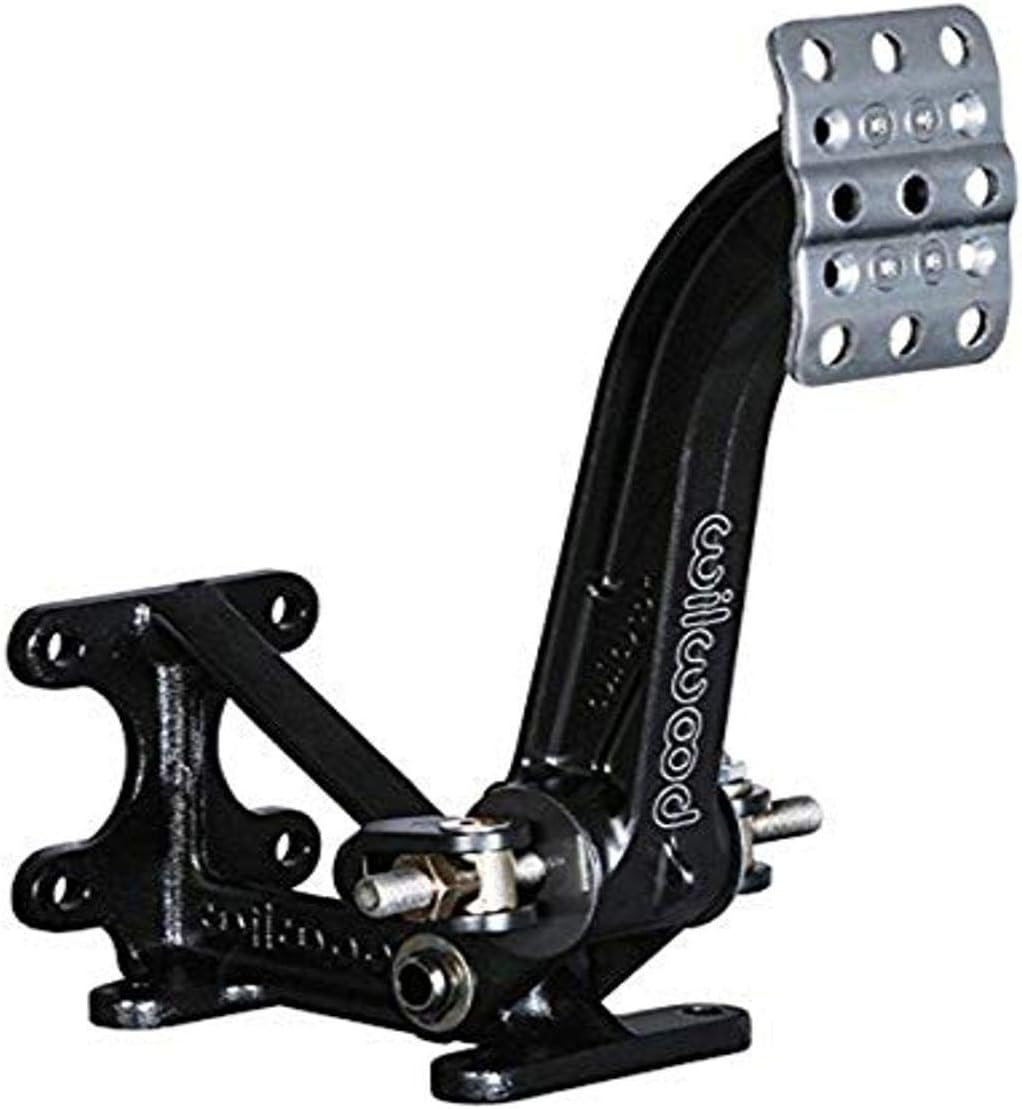

Wilwood 340-13831 Dual Master Cylinder Floor Mount Brake and Clutch Pedal Assembly

The Wilwood 340-13831 is a forward-mounted floor pedal assembly designed to mount two single outlet brake master cylinders in a forward position outside the firewall. This high-performance pedal system is ideal for race cars and high-performance street vehicles requiring independent brake circuit control and clutch operation.

Key Features:

• Lightweight aluminum frame construction for reduced weight and increased strength
• High-strength forged I-beam style pedal arm with 6:1 leverage ratio for optimal brake feel and modulation
• Non-skid waffled pedal pad with lateral adjustment for driver preference and clearance requirements
• Precision balance bar with positive detent stops every full turn to maintain adjustment position and provide driver feedback
• Pin and clevis pushrod attachment system allows maximum misalignment angle for bind-free operation throughout full pedal travel
• Balance bar can be locked with included jam nut or adjusted on-the-fly with optional remote cable adjustment
• Forward mount design places master cylinders outside firewall for improved access and heat management
• Compatible with any Wilwood vertical mount flange single outlet master cylinders (sold separately)

This pedal assembly provides the precision control and adjustability demanded by serious racers and performance enthusiasts. The forged construction and engineered geometry deliver consistent pedal feel and reliable operation under extreme conditions. Master cylinders are ordered separately by style and bore size to match your specific braking requirements.
