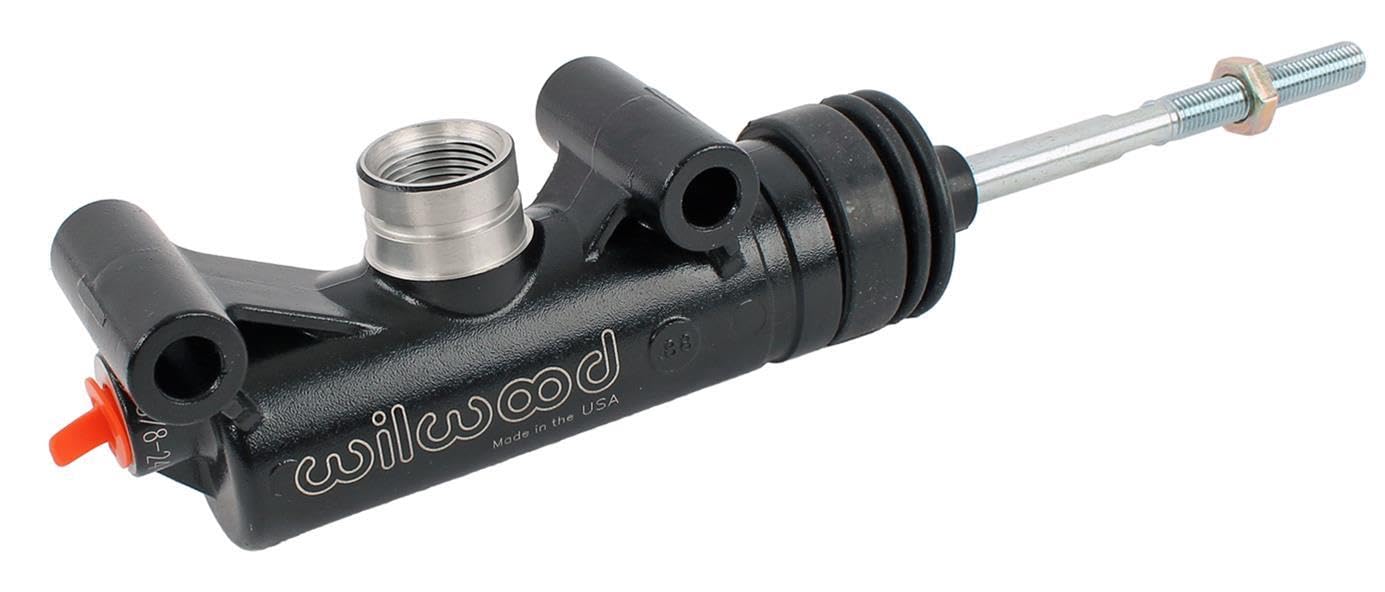

Wilwood 260-13616 Compact Remote Side Mount Master Cylinder 7/8in. Bore with Banjo Outlet

The Wilwood 260-13616 is a Compact Remote Side Mount Master Cylinder precision-machined from a high-pressure die-cast premium aluminum alloy. Engineered for performance street, racing, and custom builds where under-hood or chassis space is at a premium, this master cylinder delivers the full output capacity of a traditional full-size unit in a dramatically smaller package.

The ultra-short 3.37-inch compact body provides 2.16 inches of additional clearance between the mounting boss and the fluid outlet — a critical advantage in tight engine bays and custom fabrications. Unlike flange-mount designs, this unit features integral side mounting lugs on a 3.00-inch center-to-center spacing with no traditional mounting flange, further maximizing its ability to fit in confined spaces.

Key Specifications:

• Bore Size: 7/8 in. (0.875 in.)
• Piston Area: 0.600 in²
• Piston Stroke: 1.12 in. — meets or exceeds most full-size master cylinder stroke capacity
• Fluid Volume: 0.67 cu. in.
• Fluid Outlet: 3/8-24 Banjo fitting
• Fluid Inlet Threads: 11/16-20 internal threads for custom reservoir configurations
• Outlet Quantity: 1
• Mounting: Integral side lugs, 3.00 in. center-to-center spacing
• Usage: Brake and clutch applications
• Power Brake Compatible: No
• UPC: 889545067286

Key Features:

• High-pressure die-cast premium aluminum alloy body for strength and light weight
• Banjo-style fluid outlet positioned at the top radius of the cylinder bore to minimize trapped air
• Enhanced fluid inlet port accepts the included reservoir directly on the body or a remotely mounted reservoir via flexible hose
• 11/16-20 internal inlet threads allow custom aftermarket reservoir arrangements
• Black E-coat anodized finish resists corrosion and provides a durable, long-lasting appearance
• Compatible with both brake and clutch hydraulic systems

The 260-13616 is suited for club sport racers, open-wheel builds, street rods, off-road vehicles, and any custom application where space is limited. The kit includes both a standard direct-mount reservoir and provisions for remote reservoir installation, making it one of the most versatile compact master cylinders in the Wilwood lineup.
