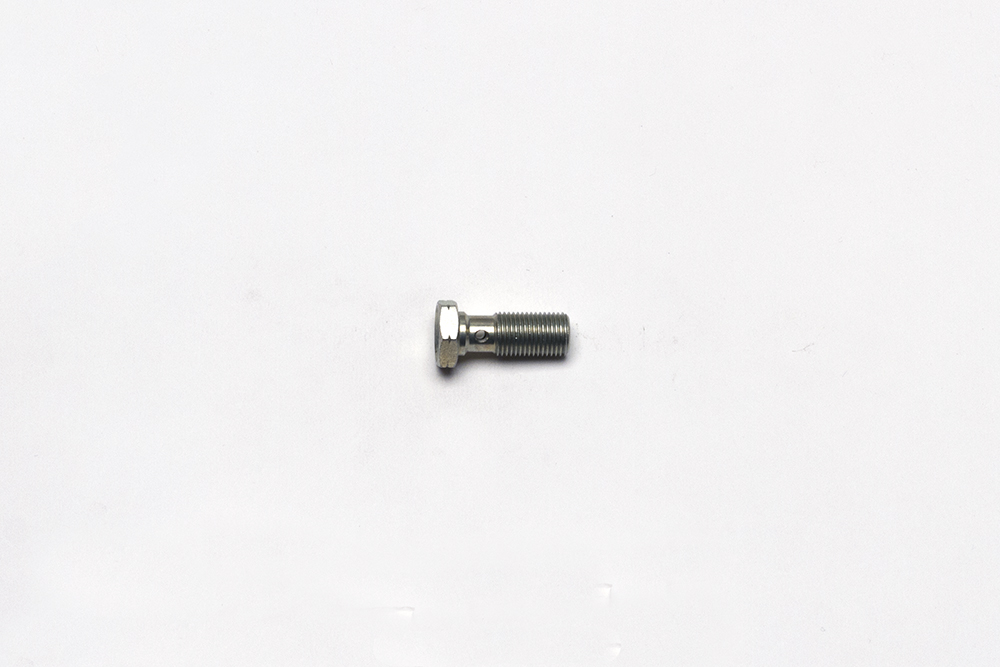

Wilwood 230-8229 Banjo Bolt M10-1.00 x 24mm High-Strength Alloy Steel

The Wilwood 230-8229 is a high-performance banjo bolt designed for use in Wilwood disc brake hydraulic systems. Sized at M10-1.00 x 24mm, this bolt provides a reliable, leak-free connection between brake hose banjo fittings and brake calipers or master cylinders.

Key Features:

• Constructed from high-strength alloy steel for maximum durability under braking loads
• Plated anti-corrosion finish resists rust and degradation in harsh environments
• Thread specification: M10 x 1.00 (fine thread pitch)
• Length: 24mm
• Designed for use with two crush washers (sold separately, see P/N 240-5227)

Installation Notes:

• Do not lubricate the bolt prior to installation
• Always install with two new crush washers
• Torque to 96–120 in-lbs; do not exceed 144 in-lbs
• Check for leakage after torquing; replace crush washers and bolt whenever re-assembly is required

Compatible replacement crush washer: Wilwood P/N 240-5227 (.406" I.D. x .625" O.D.). This banjo bolt is a direct Wilwood replacement part, engineered to maintain the integrity and safety of your high-performance brake system.
