Wilwood 140-13582-R AERO6 Front Big Brake Kit Red 6-Piston Slotted Rotors

The Wilwood 140-13582-R is a front AERO6 big brake kit featuring red powder-coated 6-piston calipers and directional slotted two-piece rotors. Engineered by Wilwood for high-demand braking applications, this bolt-on kit delivers a dramatic upgrade in stopping power, thermal management, and visual appeal over factory brake systems.

The AERO6 caliper is Wilwood's highest-capacity street and track caliper design, built for large-diameter rotor pairings. The forged aluminum billet construction uses Wilwood's stress-flow forging process for maximum strength and clamping force with reduced unsprung weight. Each caliper features a 6-piston staggered bore layout — two outer pistons at 1.62" bore and four inner pistons at 1.12" bore — delivering balanced, progressive pedal feel and exceptional clamp force across the full rotor face.

Key Features:

• AERO6 6-piston forged aluminum billet calipers in red powder coat finish
• Directional staggered vane two-piece slotted rotors (356mm / 14.00" diameter)
• GT-series asymmetrical face slot pattern for gas and debris evacuation
• Individually dynamically balanced rotors for vibration-free braking
• Black E-coat rotor finish for corrosion resistance
• Wilwood BP-20 Smartpad brake pads included
• Brake line kit included
• Fully compatible with OE master cylinder output and factory ABS function
• Engineered to bolt on using common hand tools

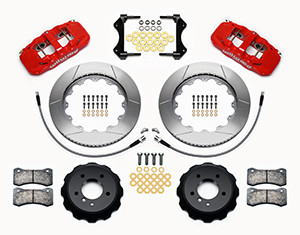

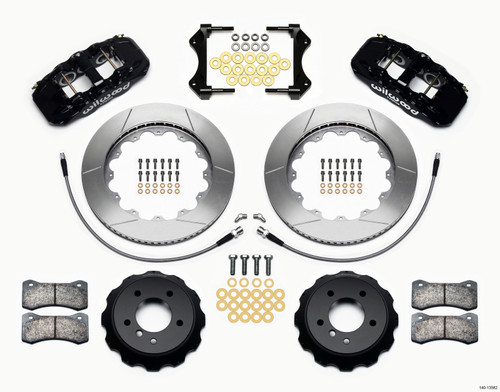

The directional staggered-vane rotor design maximizes airflow through the rotor for sustained high-heat durability — critical for street/track, towing, and high-performance driving scenarios. This kit includes calipers, rotors, BP-20 brake pads, and a brake line kit. Wilwood's AERO6 big brake kits are ISO 9000-compliant and manufactured at Wilwood's Camarillo, California facility.
