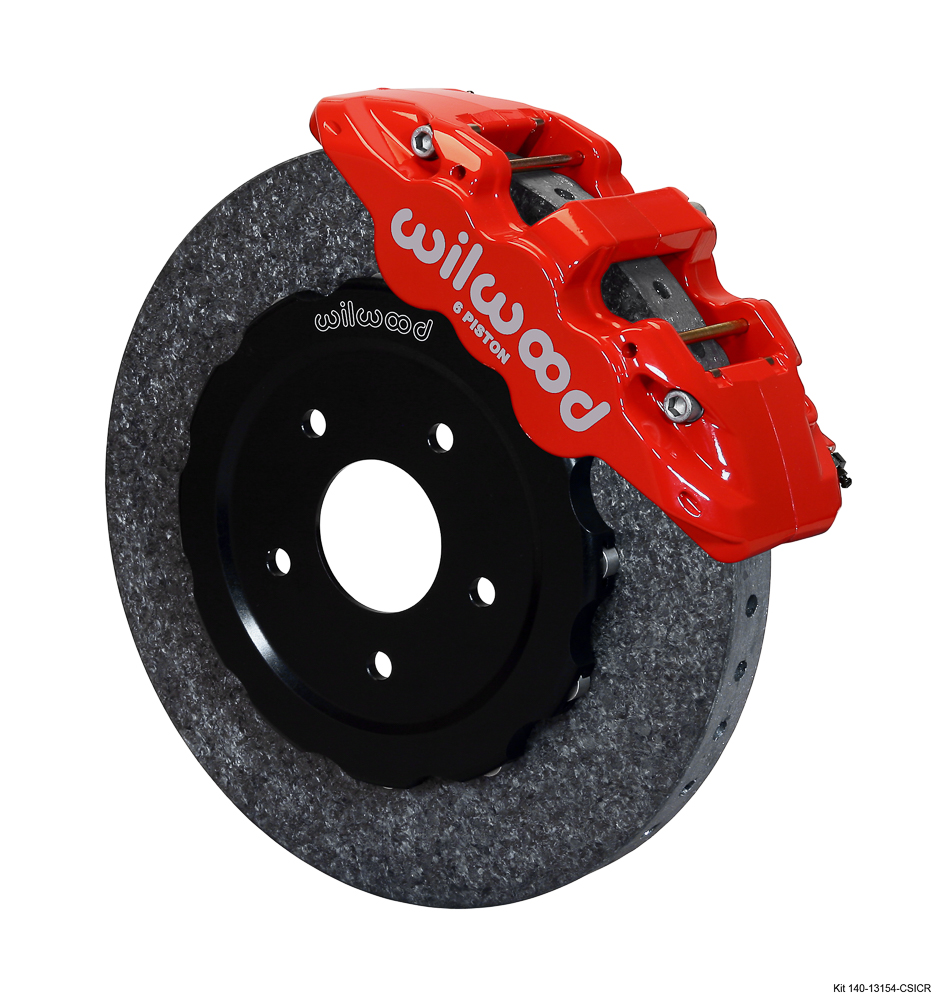

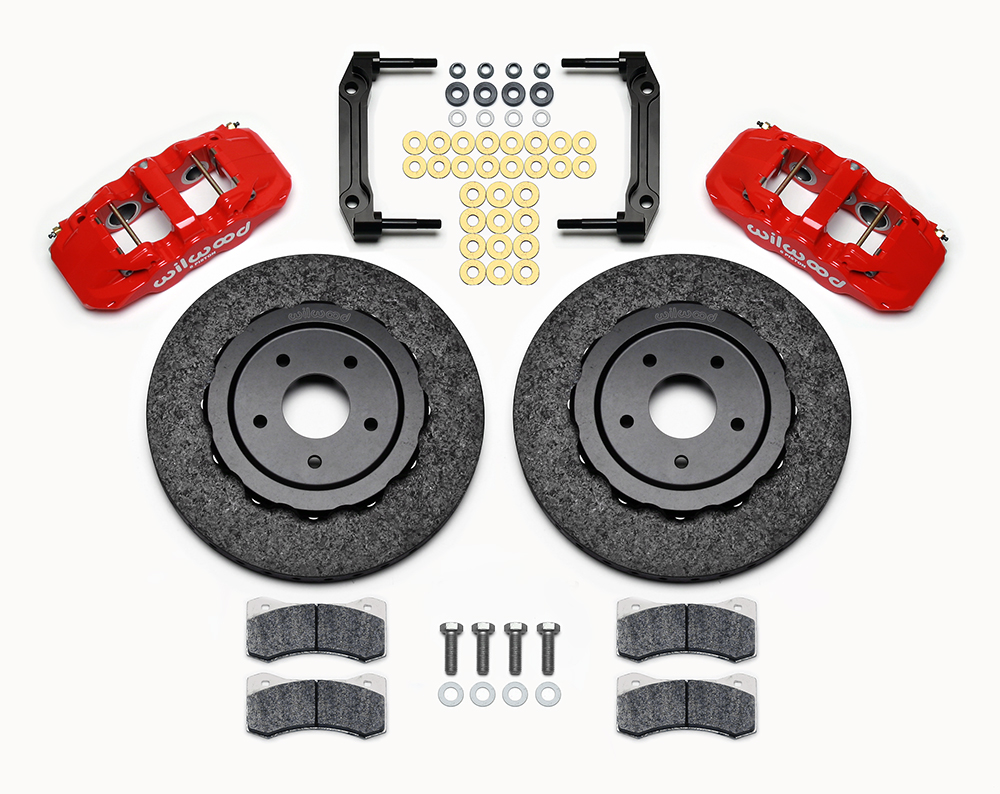

Wilwood 140-13154-CSICR AERO6 WCCB Carbon-Ceramic Big Brake Front Kit with Red Calipers

The Wilwood AERO6 WCCB Carbon-Ceramic Big Brake Front Kit delivers an extreme performance upgrade for high-demand street and competition applications. At the heart of this kit are 14.00" WCCB Carbon-Ceramic Dynamic Mount Rotors paired with Wilwood's exclusive Bobbin Mounting System — an integrated, proprietary design that eliminates rotor rattle while allowing for dynamic thermal expansion.

The AERO6 six-piston calipers feature fully detail-machined forged caliper bodies for exceptional strength and resistance to deflection and separation under extreme braking loads. This kit ships with Red powder coat calipers — a bold, high-visibility finish suited for performance builds. The AERO6 platform is engineered to maximize braking capacity inside custom wheels, making it an ideal upgrade for builds running 18" or larger wheels.

Key Features:

• 14.00" WCCB Carbon-Ceramic rotors — manufactured from a proprietary ceramic matrix composite (C/SiC) blend for superior thermal performance
• Higher thermal conductivity and heat capacity compared to conventional iron or titanium rotors of similar or greater weight
• Wilwood Bobbin Mounting System — proprietary integrated anti-rattle dynamic mount design
• 6-piston AERO6 forged caliper bodies — competition-proven for strength and deflection resistance under high load
• Red powder coat caliper finish (MPN suffix: R) — black powder coat version also available
• Bolt-on installation with minor modifications to the front spindle only
• Fully compatible with ABS and OE master cylinder output
• Includes PCM compound brake pads (pad compound 6617)
• Optional brake lines available separately (PN 220-8176 / 220-9100)
• Requires 18" or larger wheels for proper clearance

WCCB rotors are engineered to withstand extreme braking temperatures with maximum resistance against distortion, warping, cracking, and wear — making this kit an ideal choice for high-performance builds that demand consistent, fade-resistant stopping power on track or street.
