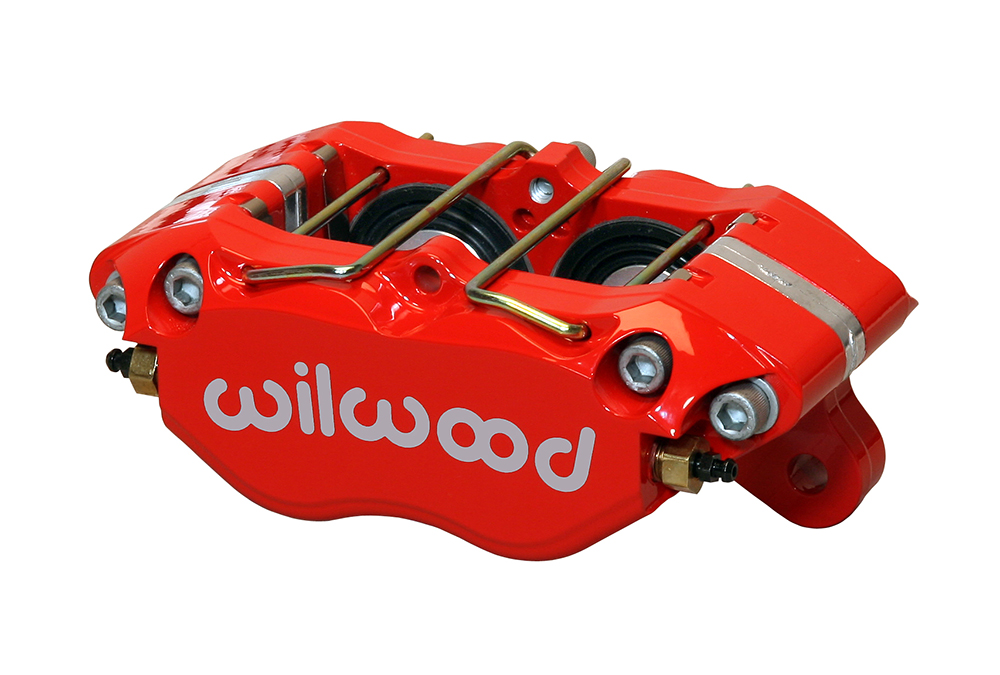

Wilwood 120-11482-RD Dynapro Dust-Boot Lug Mount Brake Caliper - Red

The Wilwood Dynapro Dust-Boot (DP-DB) lug mount brake caliper is engineered for applications requiring enhanced protection against environmental contaminants. Featuring dust-booted aluminum pistons, this caliper delivers reliable performance in low to intermediate temperature ranges while providing exceptional resistance to road and track debris in harsh operating conditions.

Advanced Stress-Flow Forged Construction:

The Dynapro caliper body is stress-flow forged from premium grade billet aluminum, a process that realigns the metal's grain structure to follow the contour of the body design. This manufacturing technique produces substantially greater strength compared to conventionally machined billet components. The FEA-optimized body design features a fortified radial transition between piston housings and bridges, eliminating stress-concentrating steps and shoulders. This radius geometry significantly increases resistance to deflection and body separation under high brake loads, resulting in reduced fluid volume displacement and minimized pedal travel for a firm, responsive feel with superior stopping power.

Key Performance Features:

• Dust-booted heavy wall aluminum pistons resist corrosion and provide excellent protection against contaminants
• Quick-E-Clip pad retainers support 7812 type brake pads from the top for fast service without caliper removal
• Slim profile design with eliminated bottom pad supports for improved fitment in tight clearance applications
• Heavy wall piston construction resists backside deflection for efficient clamping even at high boost pressures
• Optional bridge bolt kit (P/N 230-10118) available for extreme high-pressure, high-load applications
• Lug mount design for versatile installation options
• Red anodized finish for corrosion resistance and distinctive appearance

Compatible with 7812 type brake pads. Ideal for street performance, road racing, and applications operating in demanding environmental conditions where dust boot protection is essential.
