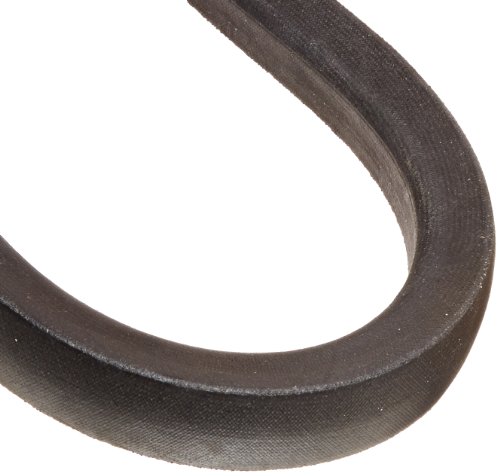

Gates C85 Hi-Power II Classical V-Belt

The Gates C85 Hi-Power II is a wrapped classical section V-belt with a long reputation for reliability on agricultural and industrial applications. This C-section belt features an 89-inch outside circumference, 7/8-inch top width, and 0.53-inch overall height. Constructed from EPDM (ethylene propylene diene monomer) rubber for resistance to weathering, oils, water, and some solvents.

Key Features:

• Vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads
• Flex-Weave oil and heat resistant cover protects the belt core from the toughest environments
• Arched top provides superior strength to prevent dishing and distortion of the tensile section
• Meets Gates V80 system matching tolerances for use in multi-belt drives
• EPDM belt material is engineered to combat self-igniting and won't catch fire from heat build-up, even with severe slippage
• Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements
• Operating temperature range: -30°C to +60°C (-22°F to +140°F)
• REACH and RoHS 2 compliant

Gates Hi-Power II C85 v-belts are high quality, heavy duty belts suitable for a variety of industrial and agricultural power transmission applications including HVAC systems, conveyor systems, centrifugal pumps, air compressors, and crushers. Can be used individually in a single v-belt drive or in sets of 2 or more belts for higher horsepower applications.
