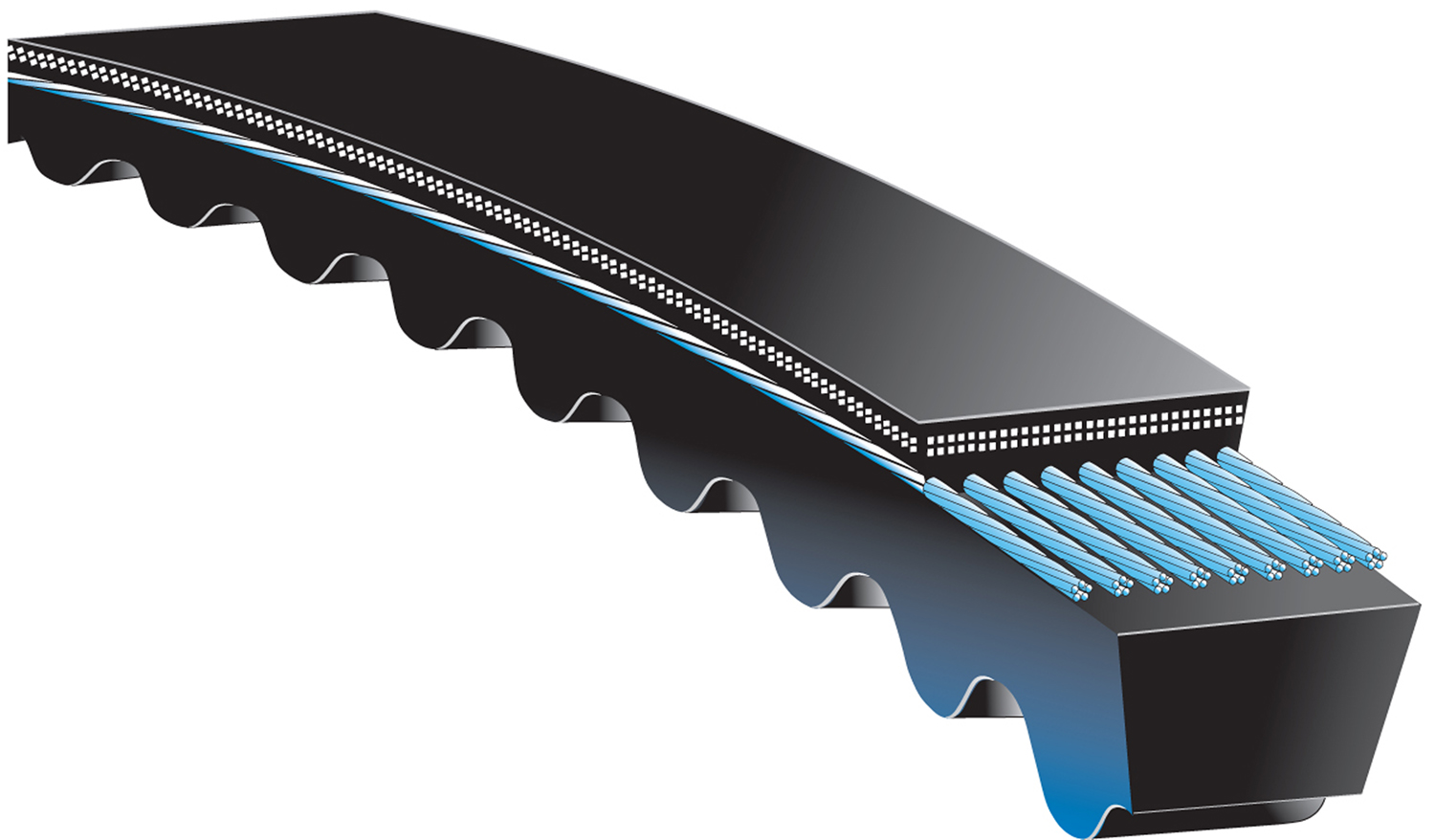

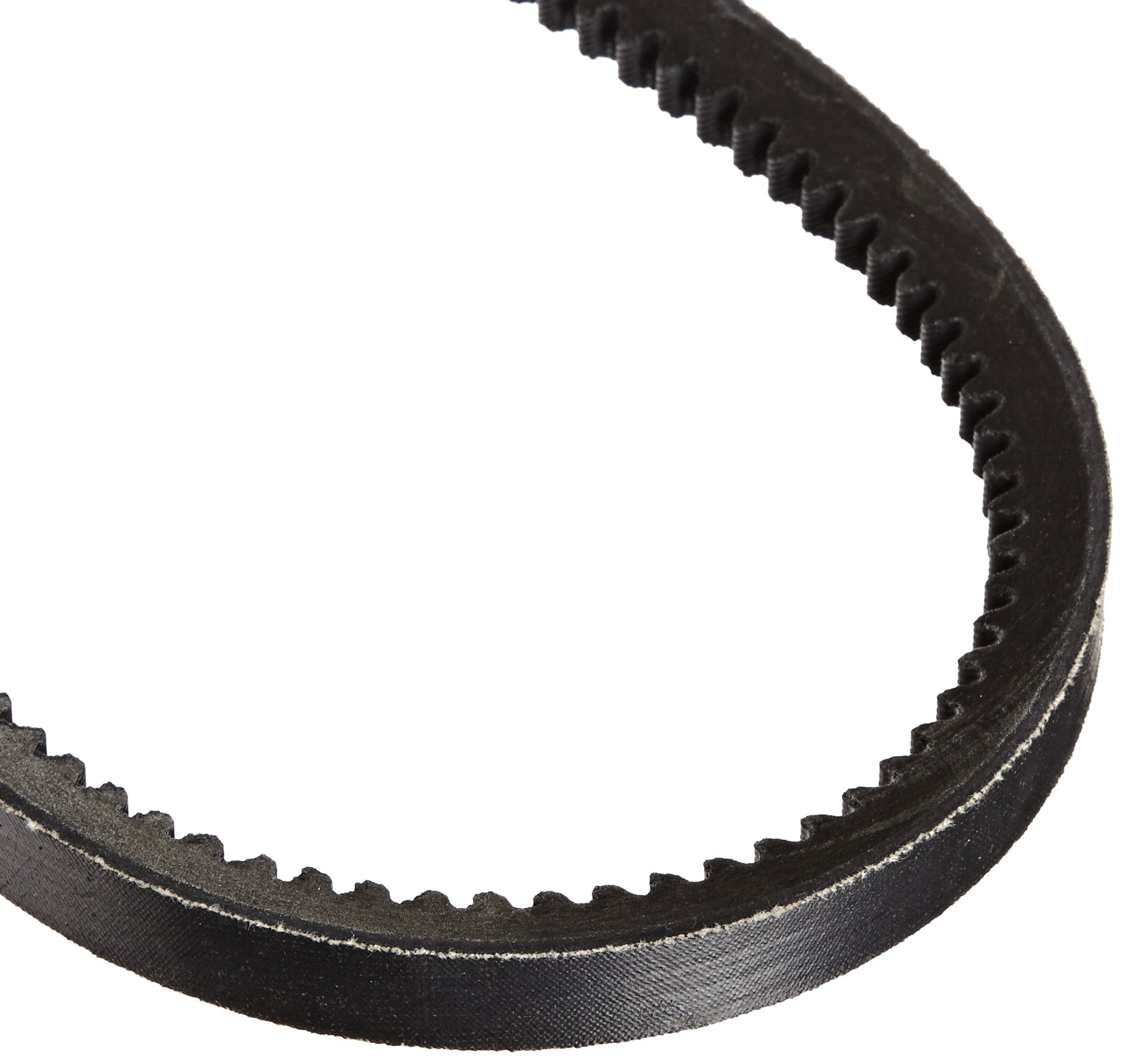

Gates 5VX450 Super HC Molded Notch V-Belt 5/8" x 45"

Manufacturer

Part Number

5VX450
Sale Price

$43.34

1 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Gates 5VX450 Super HC Molded Notch V-Belt delivers high horsepower power transmission in space-constrained applications, transmitting up to three times the horsepower versus comparably sized belts. This 5VX section belt measures 5/8" in width and 45" in outside circumference length, making it ideal for industrial drives where weight, space, and horsepower capacity are critical factors.

Key Features:

  • Patented ethylene material construction provides high-temperature tolerance and exceptional strength for versatile manufacturing and power transmission applications
  • Flex-bonded tensile cords vulcanized as one solid unit for high resistance to tensile forces, fatigue, and shock loads
  • Molded notches reduce and evenly distribute thermal and bending stresses
  • Precision-ground straight sidewalls ensure uniform wedging action and correct pulley groove fit
  • Proprietary Flex-Weave cover protects belt interior from oil, contaminants, and heat
  • Operating temperature range of -65°F to +250°F
  • Meets ARPM/RMA IP-3-2 oil and heat resistance standards and IP-3-3 static conductivity requirements

The compact design compared to classical section V-belts provides cost and space savings by reducing the size of pulleys, bearings, guards, and mounts. All sizes meet Gates UNISET tolerances and can be installed without matching, simplifying multi-belt drive installations.

Products specifications

Outside Circumference (in)

45

Outside Circumference (mm)

1143

Section

5VX

Top Width (in)

.62

Top Width (mm)

16

Outside Circumference (frac. in.)

45

Top Width (frac. in.)

5/8
