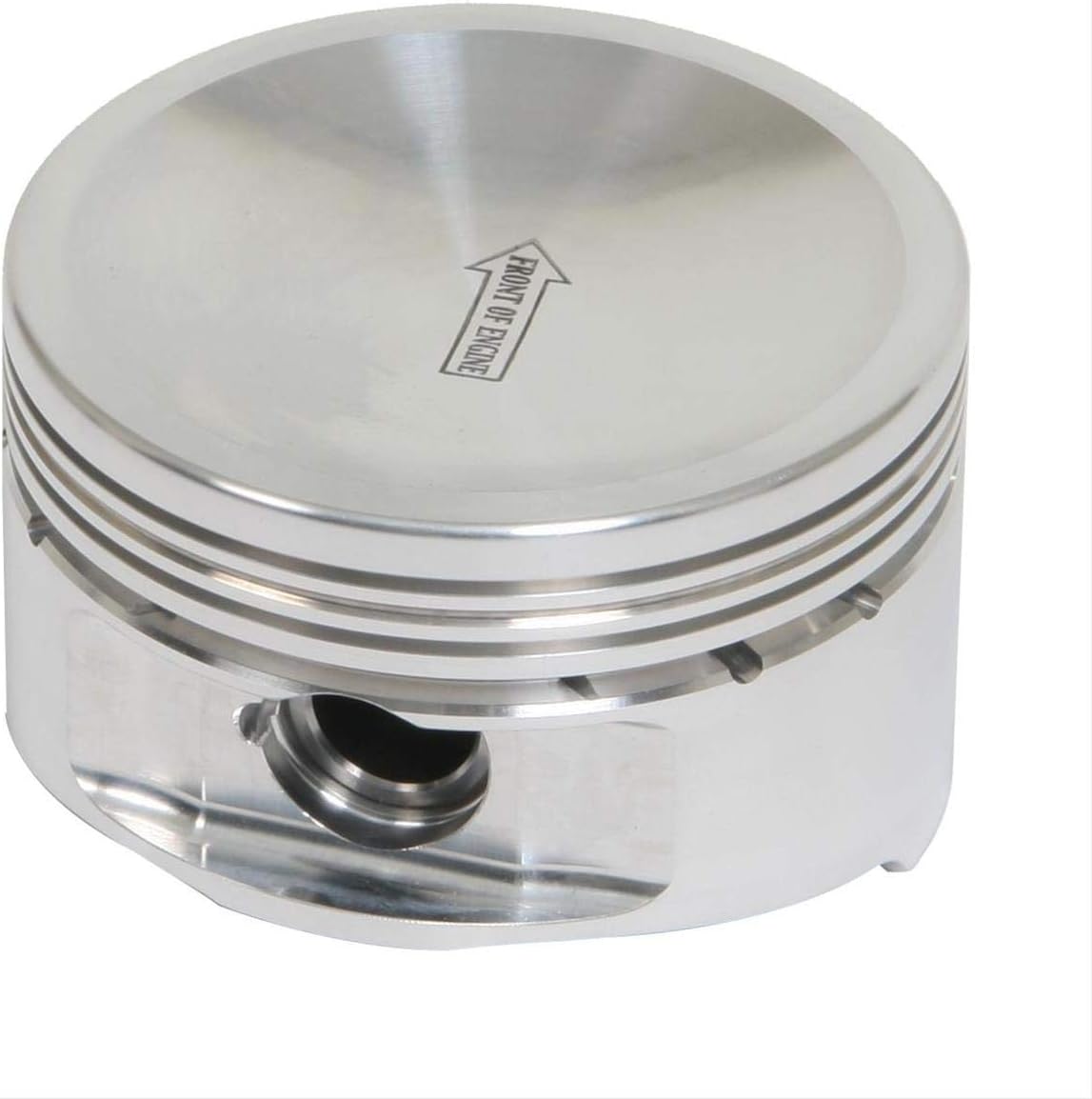

Manley 494200-8 Forged Piston Set 2618 Alloy 3.552" Bore 18cc Spherical Dish

(1996-2004 Ford Mustang)

Manufacturer

Part Number

494200-8
Black Friday Price

$735.26

In Stock (5)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 494200-8 forged piston set is precision-engineered from high-strength 2618 alloy for maximum high-temperature strength and fatigue resistance. Featuring an 18cc spherical dish design with a 3.552" bore, these pistons deliver optimum performance for serious engine builds requiring durability and power.

Key Specifications:

  • Bore: 3.552 inches
  • Compression Distance: 1.220 inches
  • Stroke: 3.543 inches
  • Rod Length: 5.933 inches
  • Piston Weight: 369 grams (457 grams with pin)
  • Compression Ratios: 9.54:1 @ 42cc chamber, 8.53:1 @ 51cc chamber, 8.44:1 @ 52cc chamber
  • Ring Package: 1.5mm, 1.5mm, 3mm Total Seal configuration

Performance Features:

  • Contour forged design balances maximum strength with lightweight construction without grain-interrupting internal milling
  • Single-fixturing manufacturing method ensures perfect ring groove to skirt squareness for maximum horsepower and ring seal
  • Offset wrist pin design reduces piston slap noise during cold starts and improves performance efficiency
  • Moly-coated skirts reduce friction and wear for extended service life
  • Pressure balance groove included as standard to equalize pressure behind the rings
  • Proprietary multi-step top ring groove machining delivers optimal groove size, geometry, flatness and finish
  • Federal Form-Scan gauging validates ideal skirt indexing to pinhole and skirt-to-skirt polarity

What's Included:

  • Forged 2618 alloy pistons
  • Tool steel wrist pins
  • Roundwire locks
  • Pressure balance grooves (no additional charge)

Note: Compression ratios calculated at 0.00" deck clearance, 9.240" deck height, and 0.042" thick compressed head gasket. Rod length specification provided for reference in selecting compatible connecting rods.

Products specifications

Fits

1996-2004 Ford Mustang

Bore (in)

3.552 in.

Bore (mm)

90.221mm

Calculator

Compression Calculator

Compression Distance (in)

1.220 in.

Pin Diameter (in)

0.866 in.

Piston Head Volume (cc)

+18.00cc

Piston Material

Forged aluminum

Piston Ring Thickness

1.5mm x 1.5mm x 3.0mm

Piston Style

Dish, with no valve reliefs

Quantity

Sold as a set of 8.

Tool

Stroker Combinations

Wrist Pin Style

Press-fit or floating

Piston Quantity

8

Weight

369

Make

Ford

Bore Diameter

3.552

Compression Height

1.220

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-18.00

Title

Manley Piston Set, PIST-3.552/1.220 CD/D

Add-On

46600-8

Piston Series

Street Master
