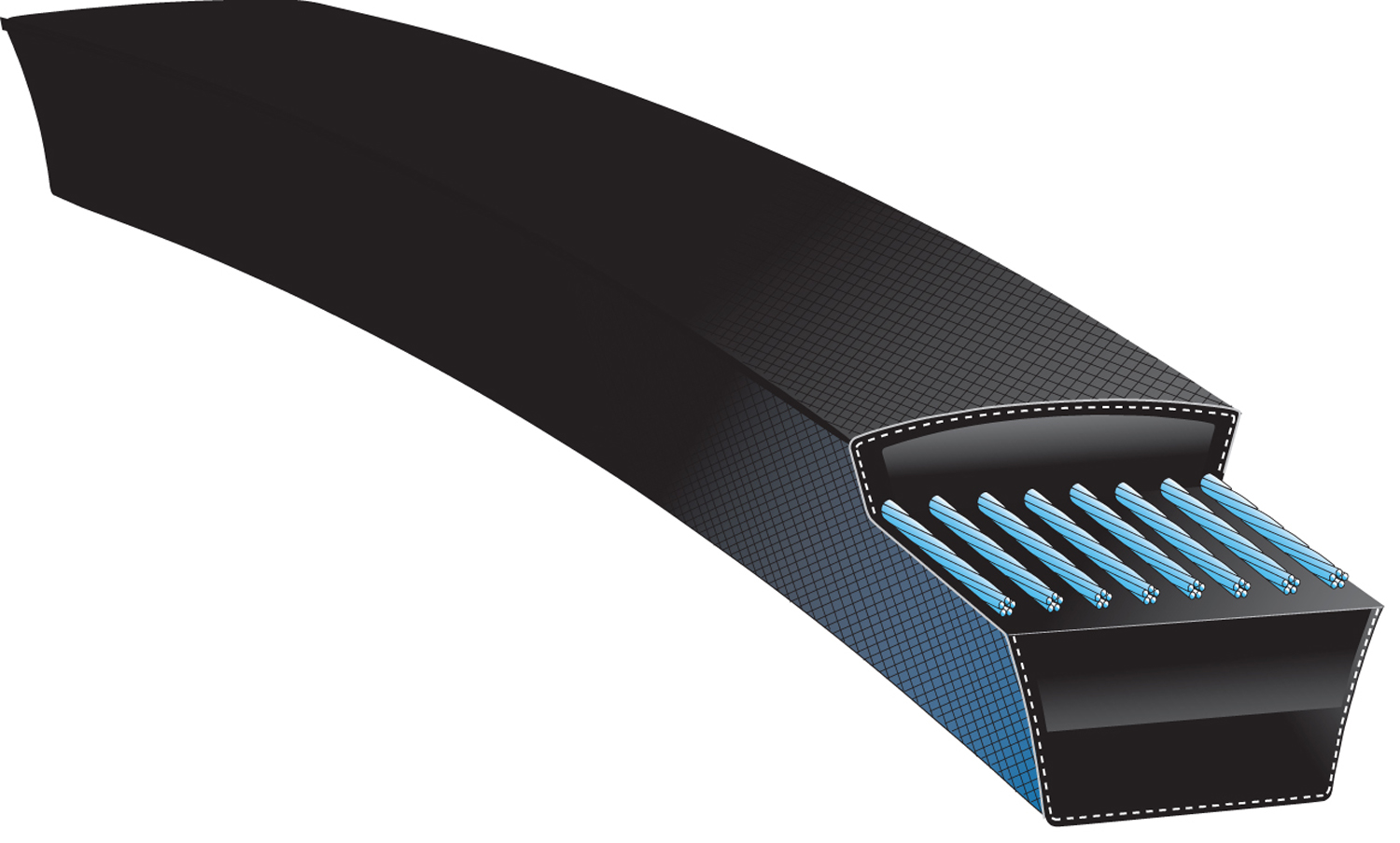

Gates B188 Hi-Power II Classical V-Belt Accessory Drive Belt - 191 Inch

The Gates B188 Hi-Power II Belt is a classical wrapped V-belt designed for reliable performance in demanding agricultural and industrial applications. This B-section belt features a 191-inch outside circumference with a top width of 0.66 inch and nominal thickness of 0.41 inch, delivering dependable power transmission across a wide range of industrial drives.

Advanced Construction Features:

• Flex-Weave Cover: Patented fabric construction provides longer cover life with extended protection to the belt core from oil, dirt, and heat
• Flex-Bonded Cords: Strongly bound to the belt body for equal load distribution and absorption of bending stress without cord deterioration
• Gates Curves Design: Provides proper cord support and full contact with the sheave-groove for uniform loading, uniform wear, and increased belt life
• Arched Top Construction: Provides superior strength to prevent dishing and distortion of the tensile section

Superior Environmental Resistance:

• Resists oil, heat, ozone, sunlight, weather, and aging
• EPDM belt material combats self-igniting, meaning the belt won't catch fire from heat build-up, even with severe slippage
• Operating temperature range: -22°F to +140°F (-30°C to +60°C)
• Static conductive per ISO 1813 and compliant with Directive 2014/34/EU-ATEX

Performance Standards:

• Meets Gates V80 system matching tolerances and ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements
• REACH and RoHS 2 compliant
• Suitable for all industrial applications, including v-flat drives
• Recommended for Multi-Duty Sheaves

The Gates B188 Hi-Power II Belt delivers exceptional durability and reliability for heavy-duty power transmission applications. Gates Product Number 9003-2188.
