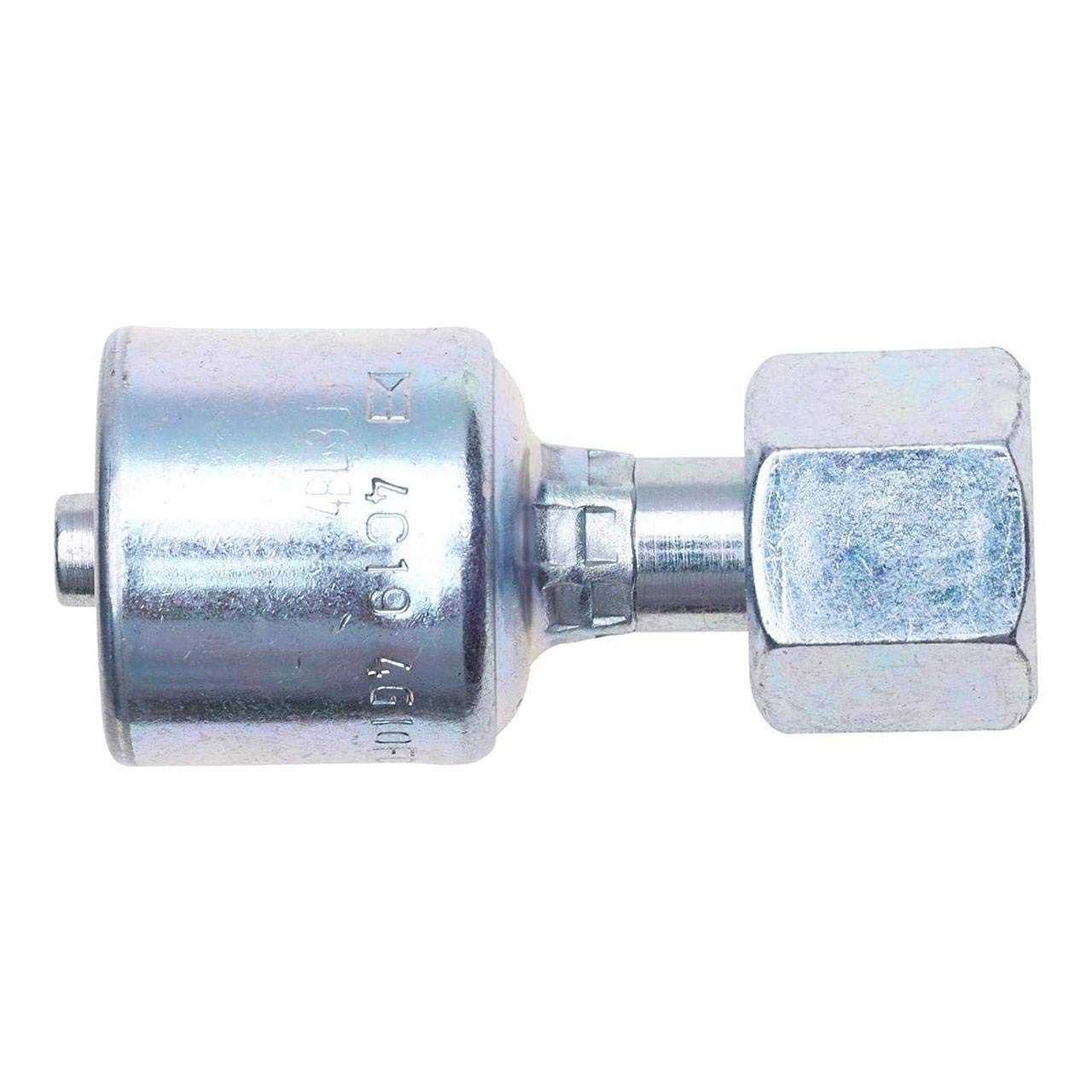

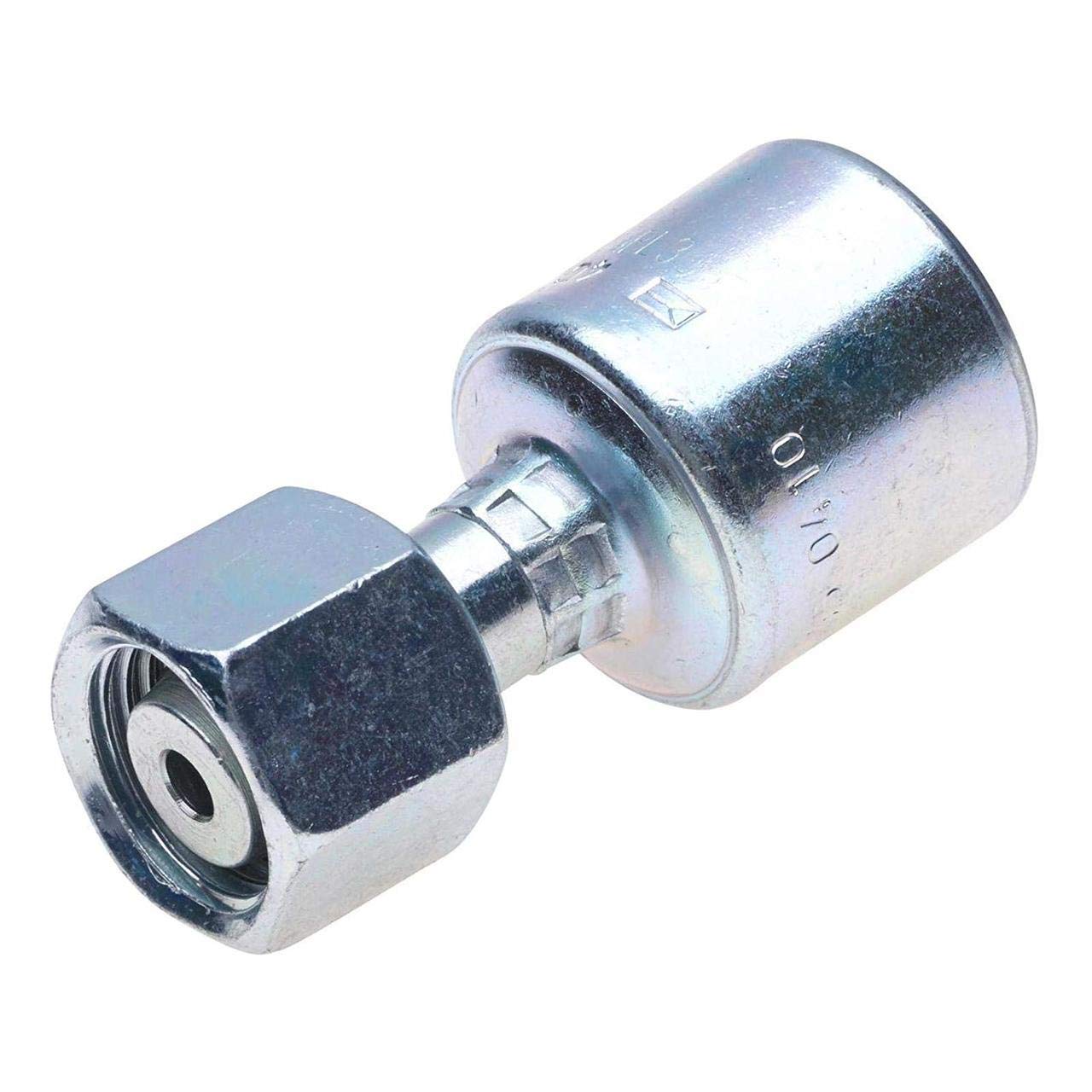

Gates G25645-0412 MegaCrimp Hydraulic Hose Coupling Female DIN 24° Cone Swivel

The Gates G25645-0412 (also known as 4G-12FDLORX) is a MegaCrimp hydraulic hose coupling designed for professional hydraulic applications. This coupling features a Female DIN 24° Cone Swivel configuration in the Light Series with an integrated O-Ring for straight connections, delivering reliable, leak-proof performance in demanding hydraulic systems.

MegaCrimp Technology:

The patented "C" insert design pre-assembled into this MegaCrimp coupling provides world-class, leak-proof performance. The innovative "C" insert is attached to the ferrule and accommodates hoses of different constructions and wall thicknesses, while ensuring crimping forces are evenly distributed to form a concentric seal. This design simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters on both one-wire and two-wire braid hydraulic hoses.

Key Specifications:

• Thread Size: M18 x 1.5
• Female Thread ID: 0.65 inches
• Male Thread OD: 0.709 inches
• Configuration: Female DIN 24° Cone Swivel - Light Series with O-Ring, Straight
• Weight: 0.18 lbs
• Material: Steel with TuffCoat plating

Features and Benefits:

• Robust "bite-the-wire" crimp design for superior hose retention
• Tested to an industry-leading 1 million impulse cycles
• TuffCoat plating provides 347% better corrosion resistance than SAE standard
• Full-Torque Nut design is stronger and more durable than traditional staked nut fittings
• Qualified for SAE, EN, and ISO performance standards
• Simplifies inventory management by working with multiple hose types

This coupling is compatible with Gates wire-braid hydraulic hoses and provides professional-grade reliability for hydraulic systems in automotive, industrial, construction, and mobile equipment applications. Alternate Gates part number: 4G-12FDLORX. Product ID: 710025395.
