Gates G60140-2020 Male NPTF to Female Swivel NPSM Hydraulic Adapter 1-1/4" SAE to SAE

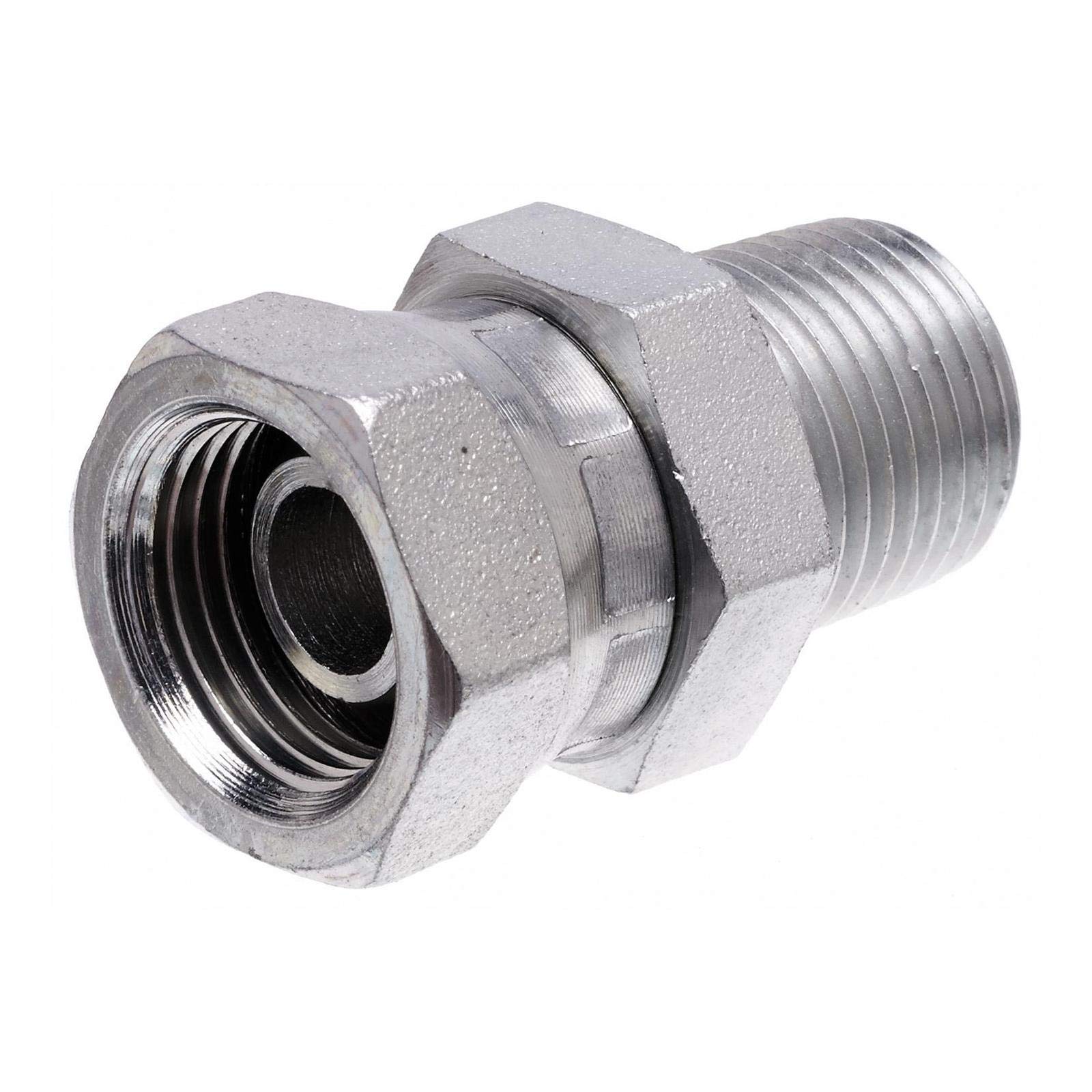

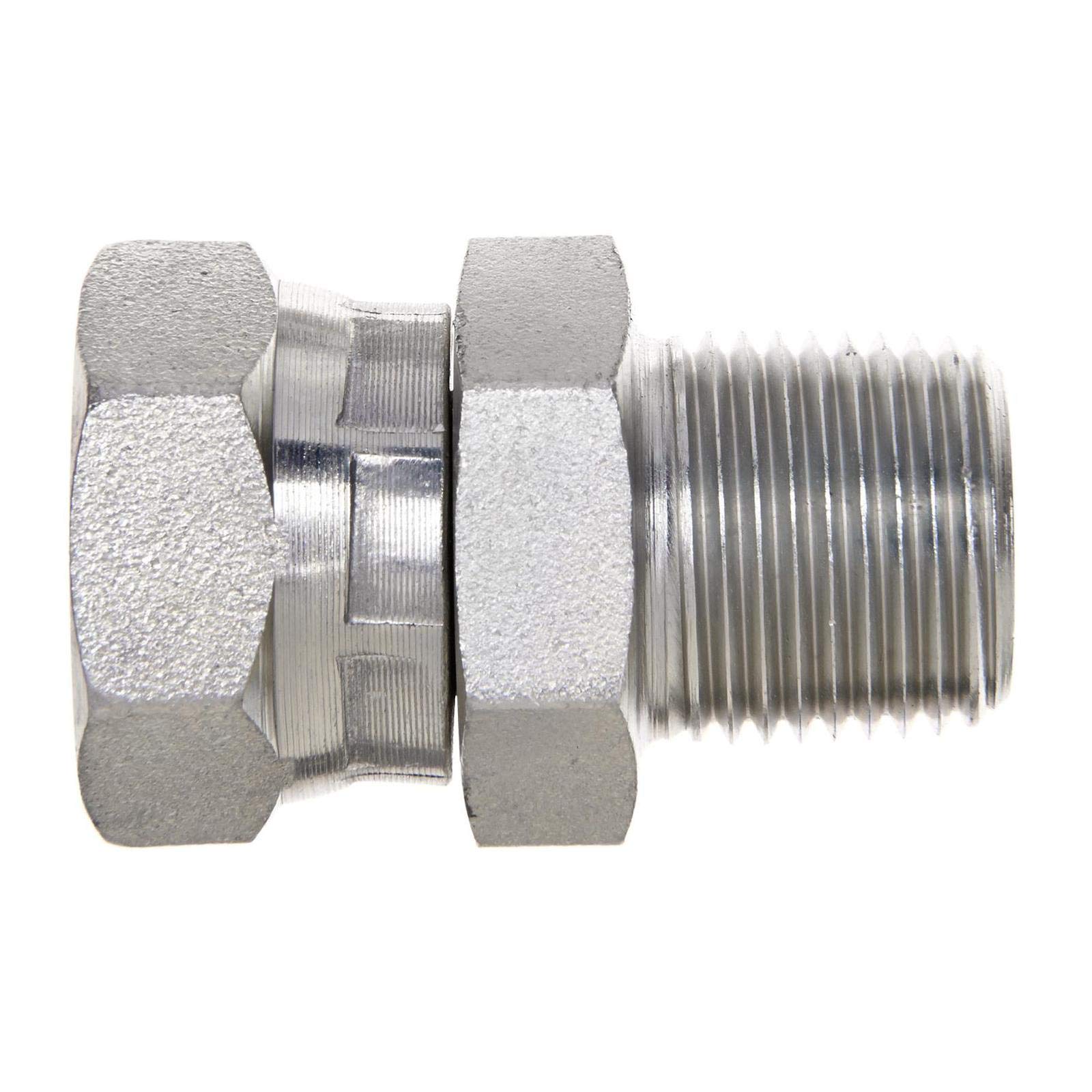

The Gates G60140-2020 is a straight hydraulic hose adapter featuring a 1-1/4" Male Pipe NPTF (20MP) to 1-1/4" Female Pipe Swivel NPSM (20FPX) configuration. Part of the Gates SAE to SAE Adapter series, this fitting provides a reliable, leak-free connection between hydraulic hose assemblies and components that use National Pipe Taper Fuel (NPTF) and National Pipe Straight Mechanical (NPSM) thread standards.

Key Features:

• Thread Configuration: 1-1/4" Male NPTF x 1-1/4" Female Pipe Swivel NPSM (SAE to SAE)
• Size Designation: 20MP-20FPX
• Pressure Rating: Rated for use up to SAE 100R2 maximum working pressure
• Swivel Design: Female swivel end allows for easy installation and helps prevent hose twist during assembly
• Forged Construction: Engineered for long service life and durability in demanding hydraulic environments
• Broad Compatibility: Suitable for use across a wide range of hydraulic fluid types and pressure hose assemblies
• Standards Compliance: Manufactured to meet SAE hydraulic fitting standards

The Gates G60140-2020 is an ideal solution when required coupling thread styles are not directly available, bridging NPTF male threads to NPSM female swivel ports without the need for custom fabrication. Gates hydraulic products are recognized against more than 20 international standards and quality certifications, making this adapter a trusted choice for industrial, mobile, and off-highway hydraulic system maintenance and repair.
