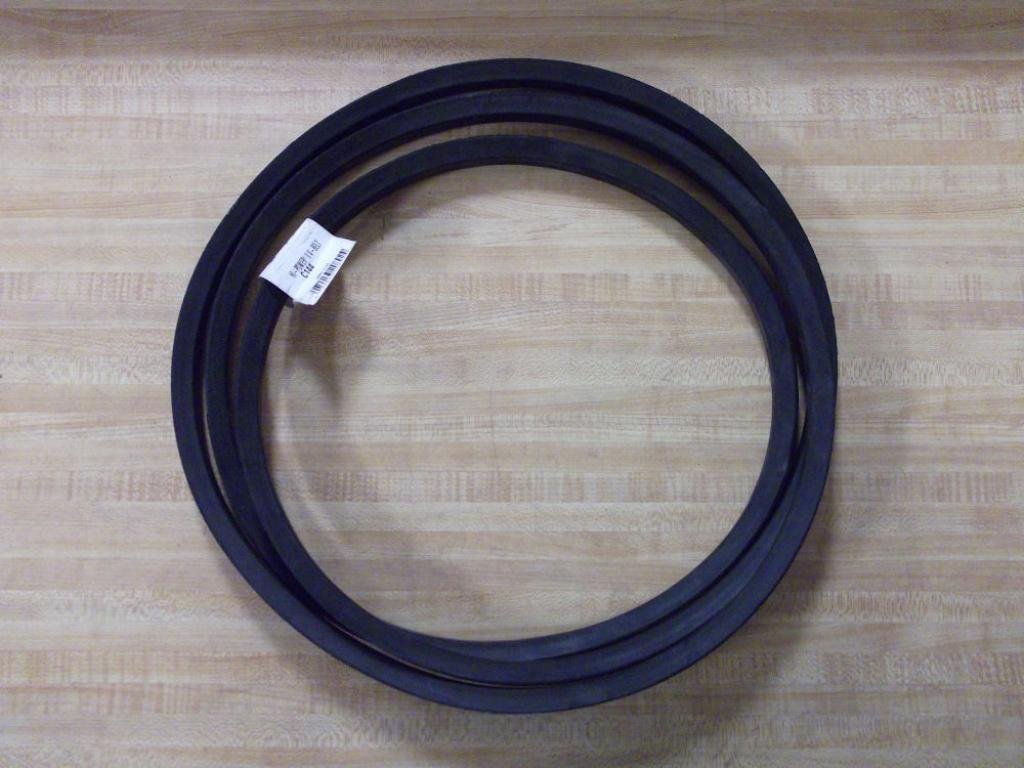

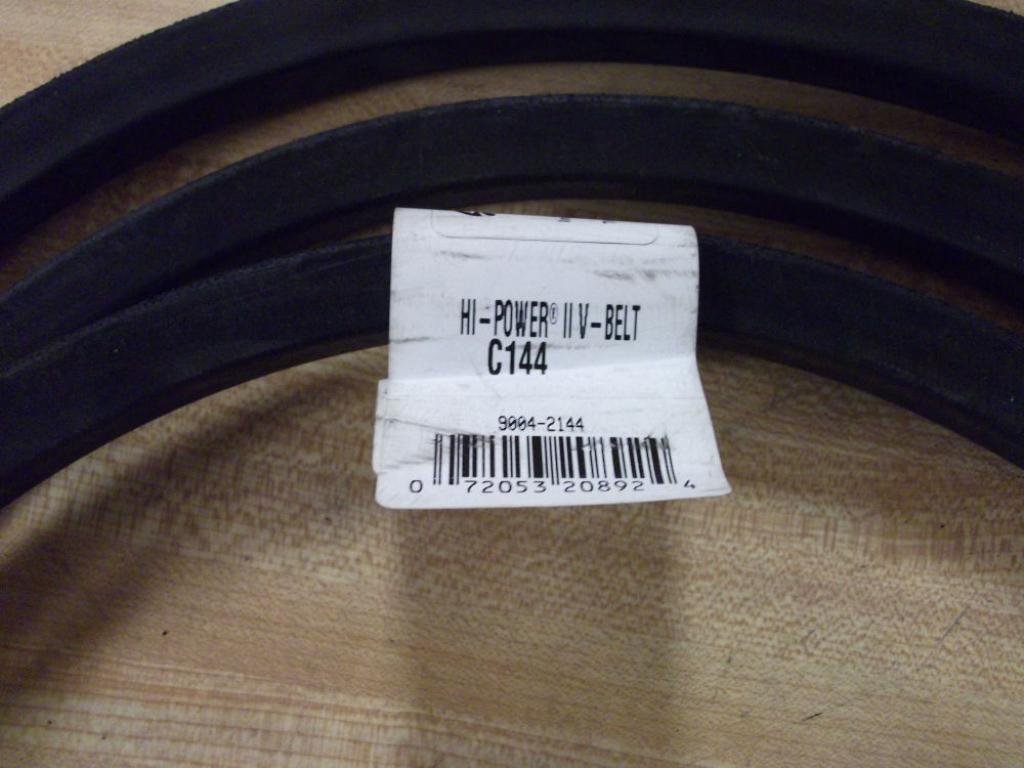

Gates C144 Hi-Power II Classical V-Belt Accessory Drive Belt - 148 Inch

The Gates C144 Hi-Power II V-Belt is a premium classical C-section belt engineered for reliable performance in demanding agricultural and industrial power transmission applications. With an effective length of 148.18 inches and a top width of 7/8 inch, this heavy-duty belt delivers consistent power transmission in a wide range of operating conditions.

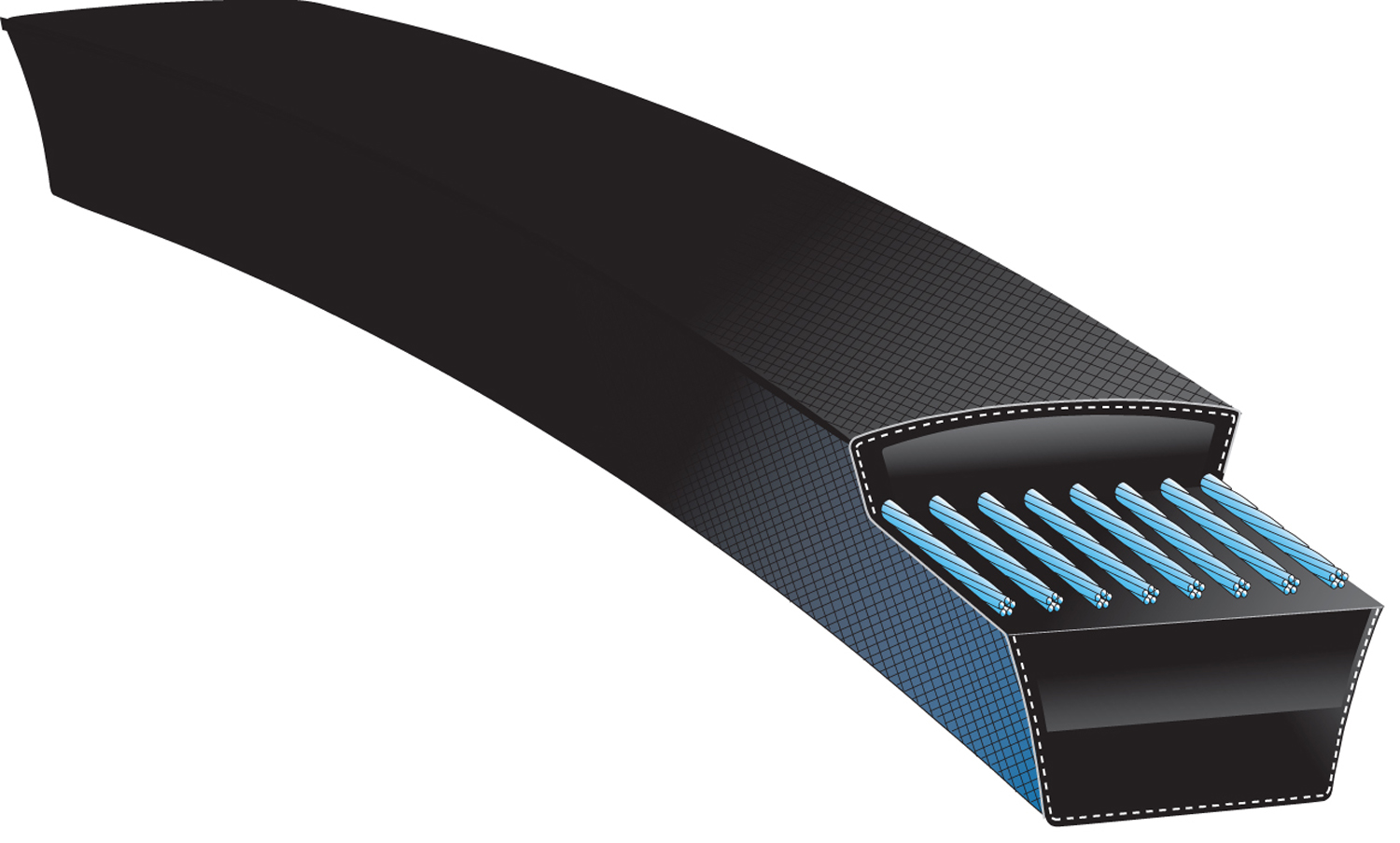

Advanced Construction Features:

• Flex-Bonded Polyester Cords: Strongly bound to the body of the belt, resulting in equal load distribution and absorption of bending stress without cord deterioration
• Flex-Weave Cover: Oil and heat resistant cover protects the belt core from the toughest environments
• Arched Top Design: Provides superior strength to prevent "dishing" and distortion of the tensile section
• Gates Curves: Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear
• V80 Matching System: Ensures that every C144 belt can be used in a matched set, regardless of batch or lot

Performance Specifications:

• Material: SBR rubber compound
• Temperature Range: -30°C to +60°C (-22°F to +140°F)
• Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements
• EPDM belt material combats self-igniting, meaning your belt won't catch fire from heat build-up, even with severe slippage
• REACH and RoHS 2 compliant
• Static conductive (ISO 1813)

Featuring a composite, multi-purpose construction, Gates Hi-Power II Belts resist oil, heat, ozone, sunlight, weather, and aging. This belt can be used individually in single belt drives or in matched sets of two or more belts for higher horsepower applications. Ideal for industrial machinery, agricultural equipment, and general power transmission systems.
