Gates 85683 C5D High-Temp Multi-Fluid Hydraulic Hose 50 Foot

The Gates 85683 is a premium C5D high-temperature multi-fluid hydraulic hose designed for demanding commercial and heavy-duty applications. This versatile 3/8-inch inside diameter hose comes in a 50-foot length and features a distinctive green cover for easy identification in the field.

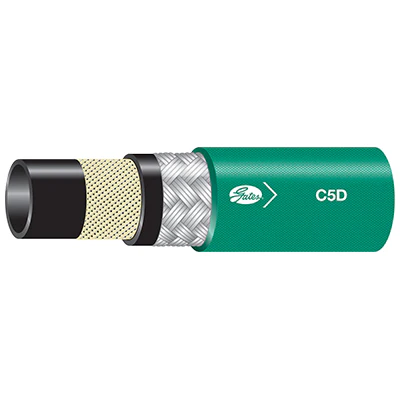

Construction and Materials:

• Black chlorinated polyethylene rubber (CPE) tube for superior oil and heat resistance
• One braid of high-tensile steel wire over one braid of polyester reinforcement
• Green polyester braid impregnated synthetic rubber cover with oil and mildew resistance
• 3/8-inch (10mm) inside diameter, 3/4-inch (19mm) outside diameter
• 2-inch minimum bend radius for flexible routing

Performance Specifications:

• Maximum working pressure: 1,250 PSI
• Minimum burst pressure: 5,000 PSI
• Temperature range: -40°F to +300°F (-40°C to +149°C)
• Air applications: up to +250°F (+121°C)
• Phosphate ester fluids: up to +212°F (+100°C)

Applications:

• Petroleum-based and phosphate ester hydraulic fluids
• Diesel fuel and filtration lines
• Transmission coolant lines and hot lube oil lines
• Turbocharger oil supplies and tilt cab cylinders
• Air brake systems and gasoline lines
• Heavy-duty commercial vehicle power steering (commercial use only)

Certifications and Compliance: Meets or exceeds DOT FMVSS 106-74 Type AII, SAE J1402 Type AII, SAE J1405, and fuel resistance of SAE J30R2 (-4 to -12). Note: Not approved for biodiesel above B5. Compatible with Gates C5 and C5X Field Attachable Couplings (G34 Series).

Backed by Gates' century of engineering excellence and a 1-year limited warranty, this hose delivers reliable performance in the most challenging hydraulic applications.
