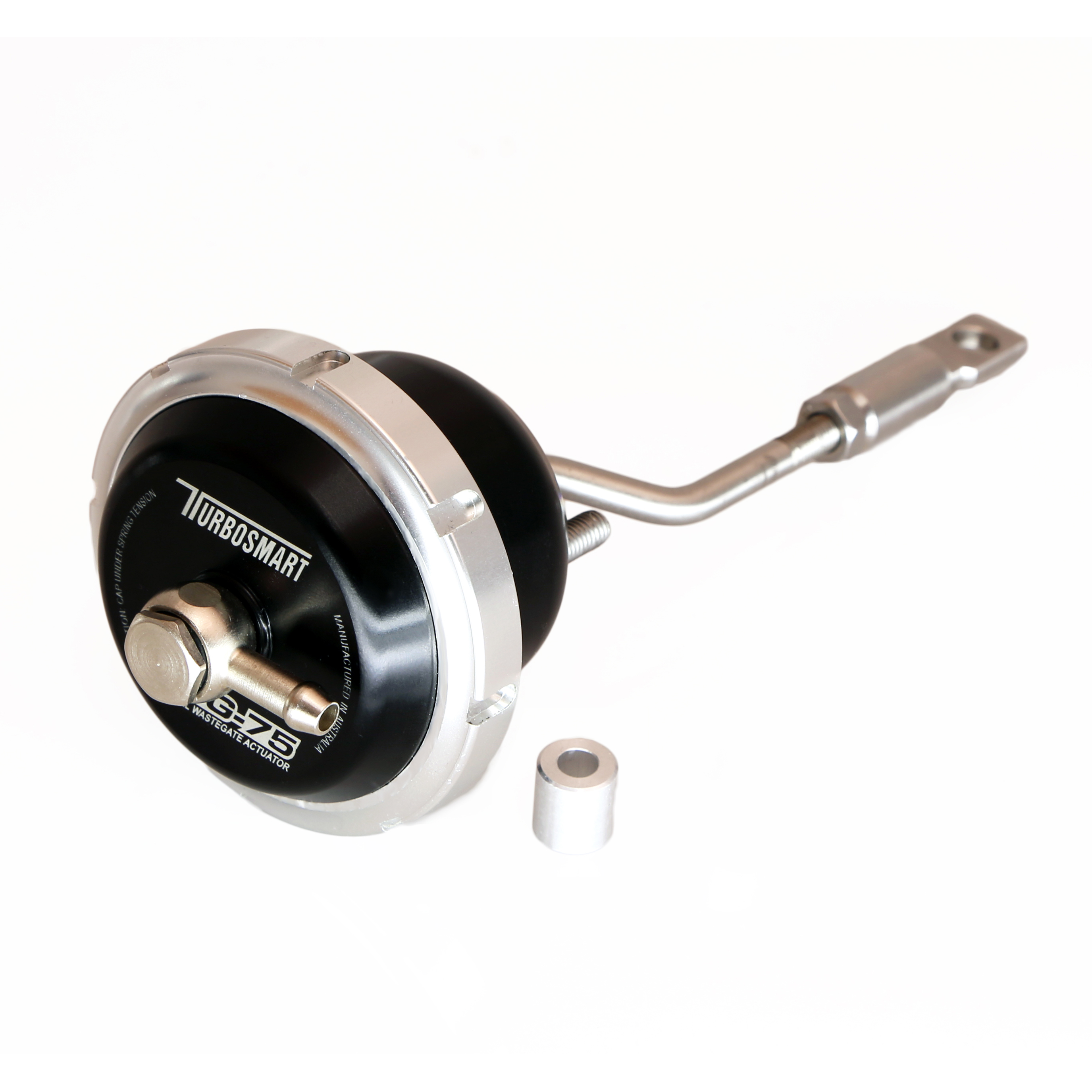

The Turbosmart IWG75 (TS-0605-3072) is a high-performance internal wastegate actuator engineered as a direct bolt-on upgrade over the factory unit. Featuring an enlarged 75mm diaphragm working area, this actuator delivers more precise control over exhaust gas flow to the turbocharger, resulting in a flatter, more stable boost curve and reduced boost drop-off at the top of the rev range.
The IWG75 series benefits from an increased working ratio compared to stock equipment — achieved through a larger effective diaphragm surface area and revised spring geometry — giving greater leverage against boost and backpressure forces while maintaining excellent responsiveness. The result is earlier peak boost onset, a broader torque curve, and improved power delivery throughout the RPM range.
Key Features:
- Proprietary silicone diaphragm with Nomex reinforcement for superior high-temperature resistance
- High-grade billet aluminum construction for strength and reduced weight
- Stainless steel rods and connecting clevis for long-term corrosion resistance
- Turbosmart locking collar design allows fast, tool-free spring swaps
- 7 PSI base spring pre-installed; compatible with optional springs ranging from 3 to 26 PSI
- 3AN fitting pre-fitted with swivel bolt and 6mm hose barb
- Fully compatible with any Turbosmart boost controller for precise boost management
- Fully serviceable and rebuildable
What's Included:
- IWG75 Wastegate Actuator
- Fasteners and swivel hose barb
- 7 PSI spring (pre-installed)
- PDF installation guide
The Turbosmart IWG75 takes motorsport-proven technology from Turbosmart's external wastegate program and applies it to the internal wastegate actuator format. Designed and manufactured in Sydney, Australia, it is built to withstand the demands of sustained high-boost and high-temperature applications.
