GFB 3006 D-Force Diesel Electronic Boost Controller for Non-VNT Turbos

The GFB D-Force 3006 is a dedicated diesel-specific electronic boost controller designed for turbocharged diesel engines equipped with pneumatic wastegates. This advanced controller uses a modified closed-loop boost control algorithm specifically tailored to the unique behavior of diesel engines, delivering precise boost control at your fingertips.

Key Features:

• 50 PSI (3.5 bar) maximum boost capacity with closed-loop control for consistent performance
• 6 individually programmable boost presets for customized tuning in different driving conditions
• Scramble boost feature with remote switching capability for instant boost adjustments
• Adjustable peak boost, rise rate, and closed-loop correction settings
• Multi-unit display options: boost pressure in PSI, BAR, or kPa
• EGT (Exhaust Gas Temperature) display capability when used with optional GFB 3830 EGT kit
• Capacitive touch screen interface with intuitive menu navigation
• Peak boost recall function to monitor maximum boost achieved
• User-adjustable over-boost warning and cut for engine protection

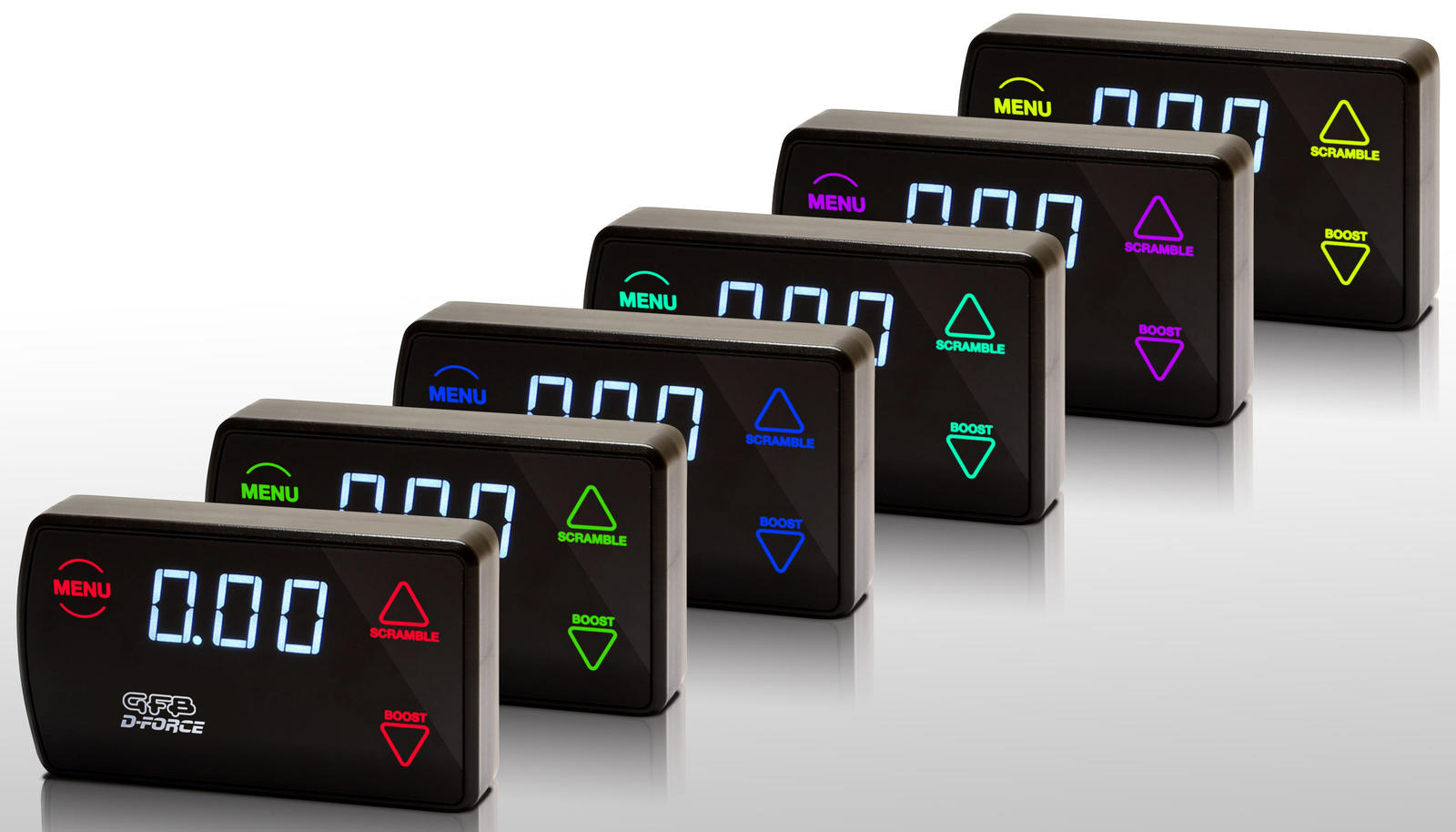

• Customizable button lighting to match vehicle dashboard
• Remote input trigger for switching presets via button, switch, or ECU output

The D-Force 3006 allows you to tailor boost characteristics for various driving conditions including overtaking, towing, economy mode, racing, or engine protection. The optional EGT kit enables toggling between boost and exhaust gas temperature displays with user-settable high temperature warnings to prevent costly engine damage. Designed for non-VNT (Variable Vane) turbos with traditional pneumatic wastegates only—not compatible with VNT/VGT or electronic actuators.
