Wiseco PK1654 Top End Rebuild Kit 93mm Polaris 500 ATV 1996-2008

(2001-2006, 2008 Polaris Sportsman 500 HO; 1996-2000 Polaris Sportsman 500 4x4; 2008-2012 Polaris Scrambler 500 4x4; 2004-2005 Polaris ATP 500 + 2 more models)

Manufacturer

Part Number

PK1654
Black Friday Price

$283.99

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco PK1654 is a complete top end kit designed for 1996–2008 Polaris 500 ATV engines. This kit supplies everything needed to perform a professional-quality top end rebuild or overbore, featuring a 93mm (4677M) bore diameter forged piston and all associated hardware.

Wiseco forged pistons are manufactured to tighter tolerances than OEM cast pistons, delivering superior strength, improved heat dissipation, and longer service life under demanding off-road conditions. This kit simplifies the rebuild process by bundling all critical components into a single purchase.

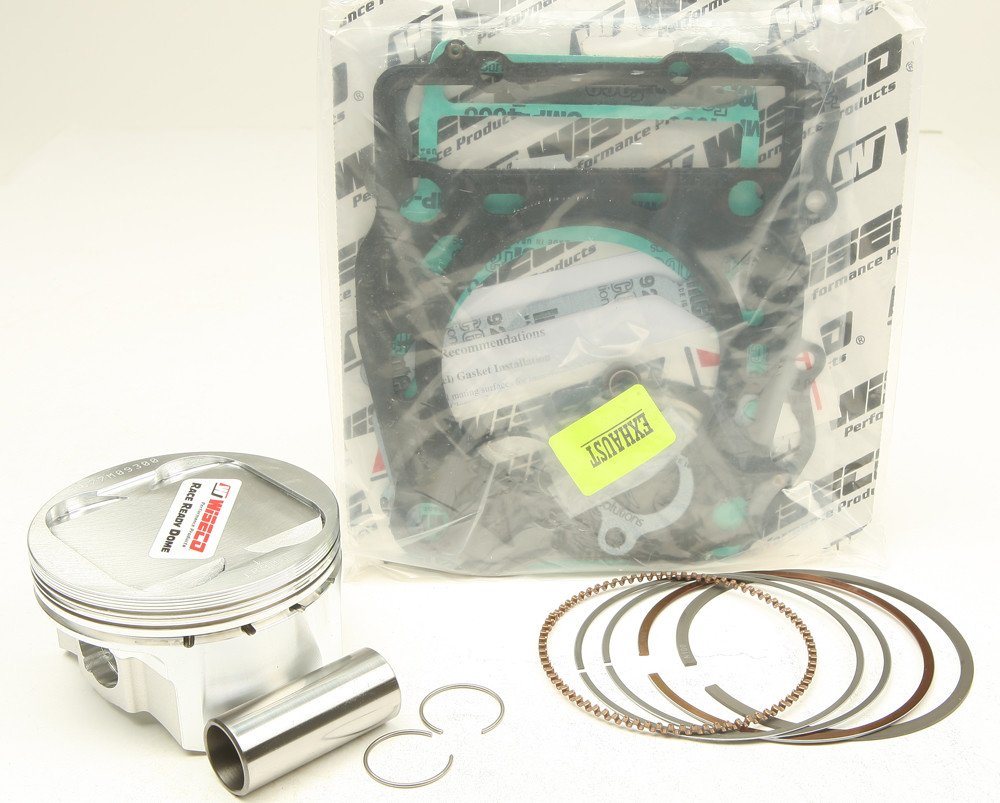

Kit Includes:

  • Forged Wiseco piston – 93mm bore diameter (4677M)
  • Piston rings – precision-fit for proper seal and compression
  • Wrist pin – hardened for durability under load
  • Circlips – secure wrist pin retention
  • Top end gasket set – complete sealing gaskets for the top end assembly

Wiseco is a trusted OEM supplier and aftermarket manufacturer with decades of experience producing high-performance pistons for powersports, motorsports, and marine applications. The PK1654 kit is engineered to meet or exceed original equipment specifications for a reliable, long-lasting rebuild.

Products specifications

Fits

2001-2006, 2008 Polaris Sportsman 500 HO; 1996-2000 Polaris Sportsman 500 4x4; 2008-2012 Polaris Scrambler 500 4x4; 2004-2005 Polaris ATP 500; 1999-2003 Polaris Magnum 500 4x4; 1997 Polaris Xplorer 500 4x4

Piston Material

2618

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

93.00

Engine Type

ICE

Industry

Powersports

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Product Series

4 Stroke Forged Series

Product Type

Top End Kits

Product Market

ATV/UTV

EBAY Category ID

180159

Skirt Coating

No

Piston oversize

1.00

Compression Ratio Actual

10.2:1

Piston Diameter

92.95

Title

Wiseco 4 Stroke Forged Series Piston Kit, 93.00 MM Bore, 10.2:1 CR

Included Components

Piston #4677M09300, Ring Set #3661XC, Wrist Pin #S591, CirClip #CW23, Gasket #W5747

Title - Web

Polaris Wiseco Top End Kit - 93.00 mm Bore
