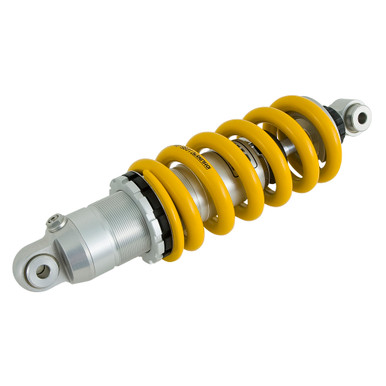

Ohlins YA009 STX Street Rear Shock Absorber - 46 S46DR1 320mm

The Öhlins YA009 (S46DR1) is a precision-engineered rear shock absorber from Öhlins' well-proven STX 46 Street series — a purpose-built performance upgrade for naked sports bikes and street performance motorcycles. Designed as a direct replacement for the factory unit, the YA009 delivers a significant improvement in ride quality, handling precision, and overall suspension performance.

At the heart of this shock is a 46 mm main piston housed in a monotube, high-pressure gas configuration with an internal reservoir integrated into the main shock body. The S46DR1 type code breaks down as follows: S = Single tube design, 46 = 46 mm piston diameter, D = Monotube high-pressure gas with internal reservoir, R1 = Adjustable rebound damping with adjuster wheel positioned above the end eye.

Key Features:

• 46 mm main piston diameter for superior damping control and feel
• Monotube high-pressure gas design with internal reservoir for consistent, fade-free performance
• 320 mm eye-to-eye length with 66 mm stroke for precise fitment
• Adjustable rebound damping via adjuster wheel above the end eye for tunable ride characteristics
• Mechanical spring preload adjustment for personalized ride height and sag settings
• 100% rebuildable construction — reshimmable and overhaulable for long-term serviceability
• Developed using knowledge and experience from Öhlins' top factory race programs worldwide

The Öhlins YA009 STX 46 Street rear shock absorber is an ideal choice for riders seeking a direct-fit, high-performance suspension upgrade with real-world tunability. Manufacturer Part Number: YA009. Type Code: S46DR1.
