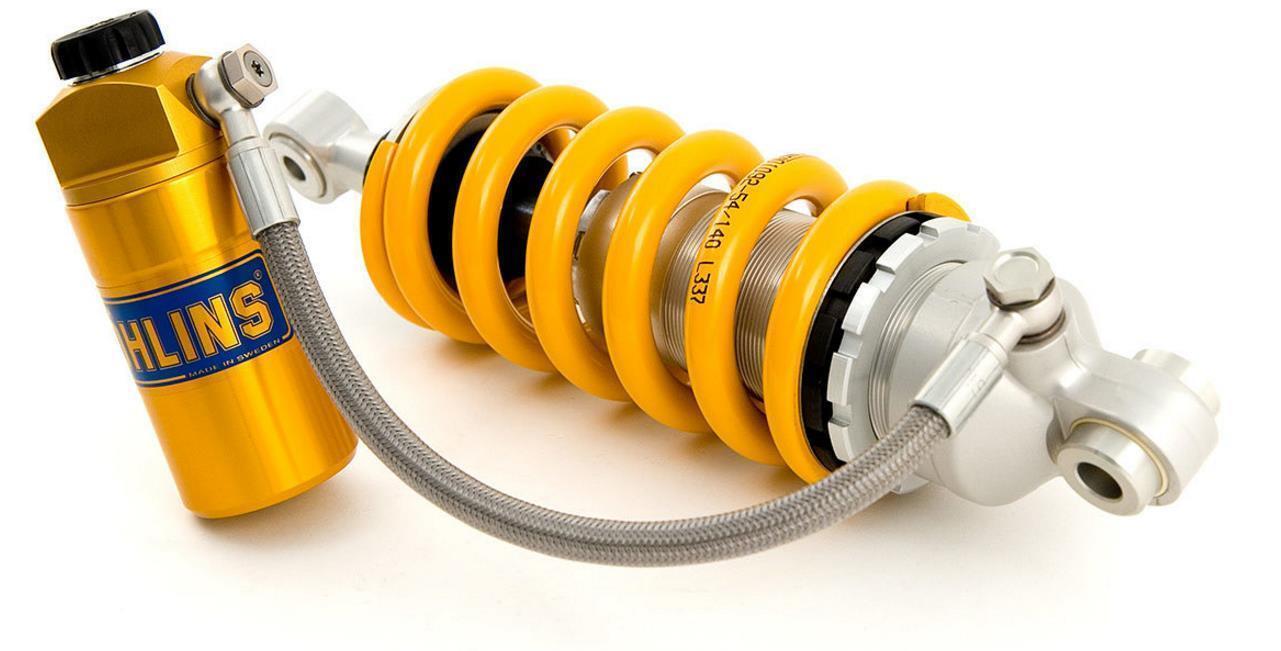

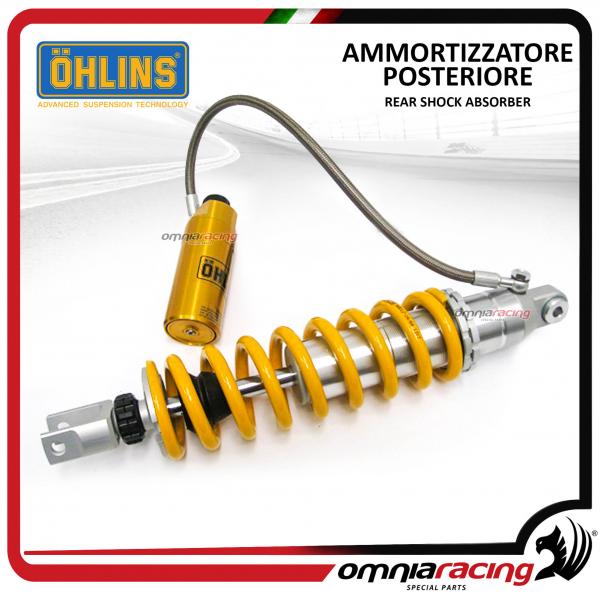

Ohlins BM941 Street Rear Shock Absorber - STX46 S46HR1C1

The Ohlins BM941 is a high-performance STX46 Street series rear shock absorber (type code S46HR1C1) engineered specifically for the BMW R100RS and R100RT (1985–1993). Also fits the BMW R80RS and R80RT of the same generation. With a total length of 409mm and a 72mm stroke, this unit is a precision-engineered upgrade over the stock rear suspension, delivering the handling precision and ride quality that Öhlins is renowned for worldwide.

Key Features:

• STX46 Platform: Single-tube (monotube) high-pressure gas shock absorber with a large 46mm piston diameter for superior damping consistency
• External Hose-Mounted Reservoir: Separates gas from oil for improved thermal performance and fade resistance under sustained riding
• Adjustable Rebound Damping (R1): Adjuster wheel positioned above the end eye for convenient, on-the-fly tuning
• Adjustable Compression Damping (C1): Adjuster wheel or slot located on the reservoir for precise control over bump absorption
• Fitted Spring: Includes Öhlins spring 01096-21 (Y) matched to the application
• Length: 409mm overall | Stroke: 72mm
• Type Code: S46HR1C1 | MPN: BM 941 / BM941

The Öhlins STX46 Street series is built on race-derived technology, developed in partnership with top factory race teams around the world. The shock body features precision construction and is fully rebuildable, allowing riders to re-shim, readjust, and overhaul the unit for long-term peak performance. Chrome silicon springs and high-grade internal components ensure lasting durability under demanding street conditions.
