Weld Racing Wheels 90-510354 Draglite Polished Aluminum Wheel - 15x10

Part of: Weld Racing Wheels Draglite Polished Aluminum Wheel

Other options in this family: Weld Racing Wheels 90-58350 Weld Racing Wheels 90-510348 Weld Racing Wheels 90-510350 Weld Racing Wheels 90-57348 Weld Racing Wheels 90-514354

Manufacturer

Picture for manufacturer Weld Racing Wheels

Part Number

90-510354
4 reviews
Sale Price

$465.00

4 left at this price

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Show details for Weld Racing Wheels 90-510354 Draglite Polished Aluminum Wheel - 15x10

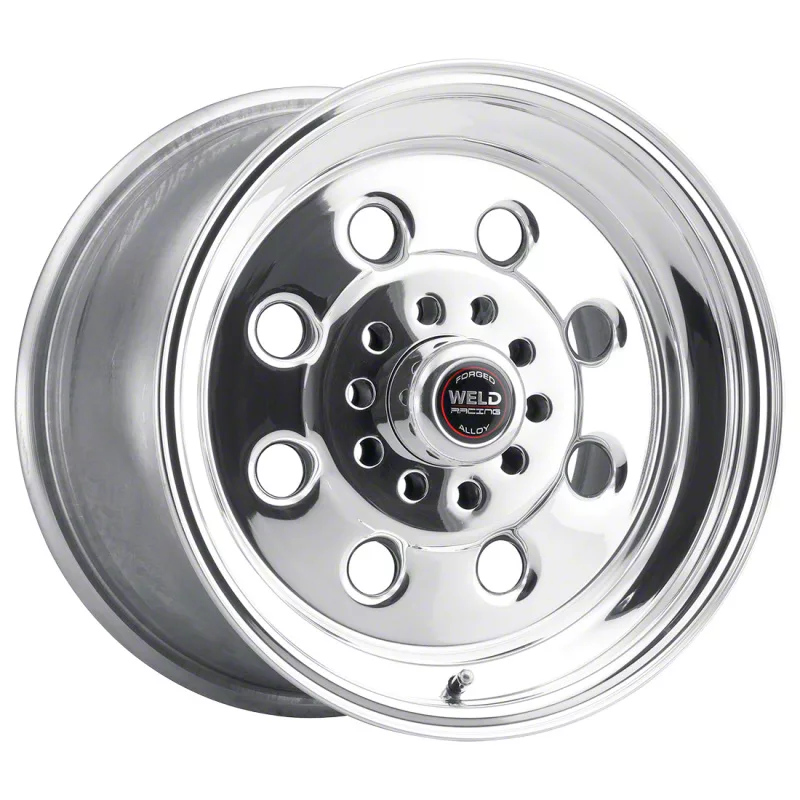

Picture of Weld Racing Wheels 90-510354 Draglite Polished Aluminum Wheel - 15x10
Picture of Weld Racing Wheels 90-510354 Draglite Polished Aluminum Wheel - 15x10

Wheels and Tires sold separately

Weld Racing Wheels 90-510354 Draglite Polished Aluminum Wheel - 15x10 — image 1
Weld Racing Wheels 90-510354 Draglite Polished Aluminum Wheel - 15x10 — image 2
Weld Racing Wheels 90-510354 Draglite Polished Aluminum Wheel - 15x10 — image 3
Product Details

The Weld Racing Draglite 90-510354 is a classic polished aluminum wheel that delivers proven performance for street and strip applications. This 15x10 inch wheel features a timeless two-piece design that has been a cornerstone of the performance wheel market for over 30 years.

Key Features:

  • Cold-forged aluminum construction with two-piece welded design for superior strength-to-weight ratio
  • Up to 40 percent lighter than comparable cast race wheels
  • 15 inch diameter x 10 inch width with 7.5 inch backspace
  • Dual bolt pattern: 5x4.5 and 5x4.75 inch for versatile fitment
  • Brilliant polished finish for classic hot rod styling
  • Push-through center cap and valve stem included
  • Made in Kansas City, Missouri USA

The Draglite wheel uses revolutionary cold-forged and welded construction that delivers the best strength-to-weight ratio and lowest rotational moment of inertia in its class. This proven design can handle the abuse of street driving while reducing unsprung weight to help lower ETs and improve handling performance. Rated for drag racing applications up to 8 seconds at 160 mph.

Note: Factory warranty is void if used for road racing, off-road use, 4WD applications, towing, vehicles exceeding 4,800 GVW, or with tires 31 inches or taller. Some aftermarket brake kits may require modification for proper clearance.

Products specifications

Backspacing (in)

7.500 in.

Beadlock Functional

No

Beadlock Included

No

Center Bore Diameter (in)

3.180 in.

Center Cap Included

Yes

Hub Centric

No

Lug Nut Seat Style

Shank

Lug Nut Shank Diameter (in)

0.679-0.687 in.

Lug Nut Shank Length (in)

1.300-1.380 in.

Manufacturers Wheel Series

Weld Racing Draglite Series

Notes

The factory warranty will become void if used on any type of sports racing, road race, solo, 4WD, off-road, towing, vehicles exceeding 4,800 GVW, or the use of 31 in. or taller tires.

Offset

+51.00mm

Offset (mm)

+51.00mm

Primary Wheel Color

Polished

Quantity

Sold individually.

Valve Stems Included

Yes

Washer Outside Diameter (in)

1.250 in.

Wheel Construction

2-piece

Wheel Diameter

15 in.

Wheel Finish

Polished

Wheel Material

Aluminum

Wheel Width (in)

10.00 in.
