Wiseco Pistons 4752M05450 High-Performance Forged Piston Kit Bore Compression - 54.50mm 11 1

(2000-2021 Yamaha TTR125; 2003-2009, 2011-2020 Yamaha TTR125LE; 2000-2009, 2011 Yamaha TTR125L; 2003-2009 Yamaha TTR125E)

Manufacturer

Part Number

4752M05450
Black Friday Price

$144.99

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco 4752M05450 is a high-performance forged piston kit designed for Yamaha TTR125 dirt bikes. This 0.50mm oversize piston features a 54.50mm bore diameter and delivers an 11:1 compression ratio for enhanced power and performance. Engineered and manufactured in the USA, this piston kit represents over 70 years of racing heritage and cutting-edge technology.

Key Features:

  • Forged from high-silicon aerospace-grade aluminum alloy for superior strength and durability
  • 54.50mm bore diameter (0.50mm oversize) with 11:1 compression ratio
  • Complete kit includes piston, rings (2146XE ring set), wrist pin (15mm x 1.752"), and circlips
  • CNC machined with diamond-turned finish for precise tolerances and perfect surface quality
  • 126cc displacement designed specifically for 4-stroke powersports engines
  • Optimized forging process increases tensile strength and improves heat transfer
  • Reduced weight compared to cast pistons while maintaining superior durability

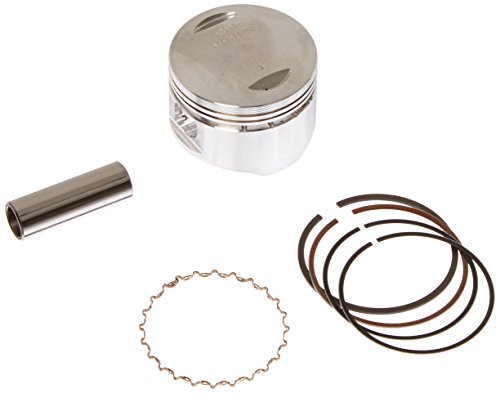

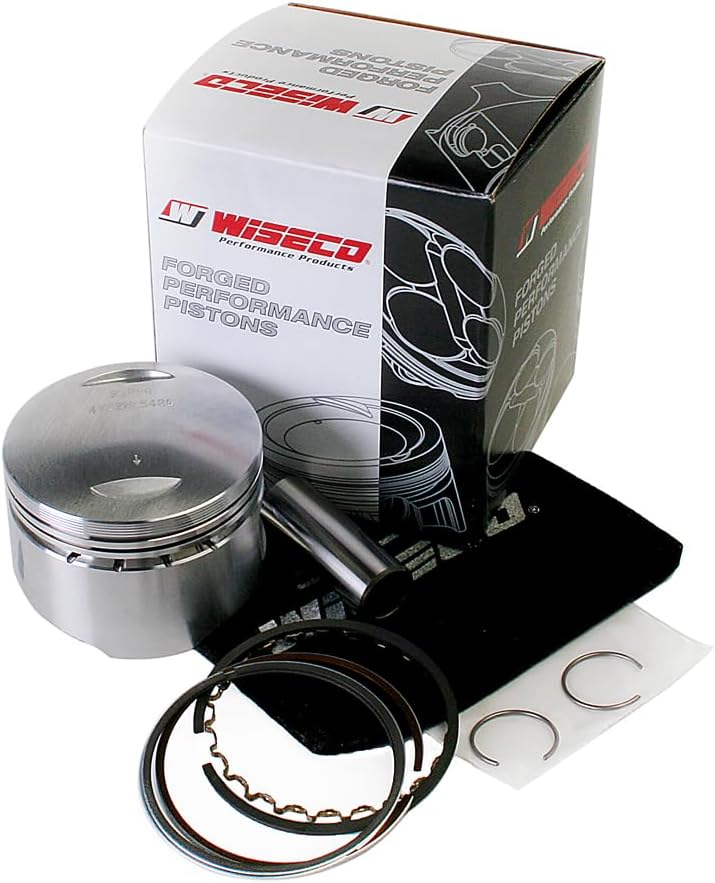

What's Included:

  • One forged piston
  • 2146XE piston ring set (54.50mm)
  • S571 wrist pin (15mm diameter x 1.752" length, non-chromed)
  • CW15 round wire pin locks (15mm pair)

Wiseco's forged pistons are engineered to withstand the demanding conditions of high-performance motorsport applications. The forging process compresses the aluminum's molecular structure, creating a denser material with aligned grain flow that resists impact and fatigue better than cast alternatives. Each piston is designed using advanced 3D modeling and finite element analysis to achieve the optimal balance of strength and weight for maximum performance and longevity.

Important Note: This is an oversize piston designed for cylinder boring applications. Only Wiseco replacement rings are compatible with Wiseco pistons. Professional installation and proper cylinder preparation are recommended.

Products specifications

Fits

2000-2021 Yamaha TTR125; 2003-2009, 2011-2020 Yamaha TTR125LE; 2000-2009, 2011 Yamaha TTR125L; 2003-2009 Yamaha TTR125E

Piston Material

4032

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Engine Type

ICE

Product Type

Engine Piston Kit

Industry

Powersports

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

177976

Piston oversize

0.50

Product Series

4 Stroke Forged Series

Skirt Coating

No

Product Market

Dirt Bike

Compression Ratio Actual

11:1

Bore Diameter

54.50

Piston Diameter

54.45

Title

Wiseco 4 Stroke Forged Series Piston Kit, 54.50 MM Bore, 11:1 CR

Included Components

Ring Set #2146XE, Wrist Pin #S571, CirClip #CW15

Title - Web

Yamaha TTR125 Wiseco Piston Kit - 54.50 mm Bore
