Wiseco 809M08300 Forged Piston Kit Bore Oversize - 2-Stroke 83.00mm 3.00mm

The Wiseco 809M08300 is a 2-Stroke Pro-Lite forged piston kit engineered for Kawasaki 750 and 1100 personal watercraft engines, delivering a 3.00mm oversize bore of 83.00mm and a displacement of 1151cc. Designed to handle the demands of high-revving watercraft powerplants, this piston kit is an ideal solution for top-end rebuilds and performance upgrades alike.

Key Features:

• Forged 4032 Aluminum Alloy: All Wiseco pistons are forged from high-silicon, low-expansion aluminum for superior strength, reduced weight, improved heat transfer, and extended service life compared to cast alternatives
• Pro-Lite Series Construction: Lightweight dedicated forging and CNC diamond-turned finish minimize reciprocating mass for quicker throttle response and maximum torque output
• Precision CNC Machining: Computer-controlled turning centers ensure a consistent finish with no size variation, compatible with cast iron, chrome, Nikasil, and boron composite cylinder bore compositions
• Optimized Skirt & Dome Profile: Contoured piston design improves ring sealing, reduces cylinder wall friction, and maintains consistent compression
• Made in the USA: Engineered and manufactured at Wiseco's state-of-the-art facility for quality control at every stage of production

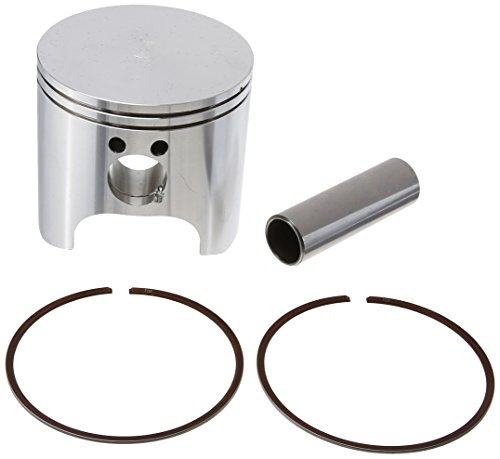

• Complete Kit: Includes forged piston, piston rings, taper-wall wrist pin (22mm), and circlips — everything needed for a full top-end rebuild

The 809M08300 is part of Wiseco's 809M series, which spans multiple oversize options to extend the service life of worn cylinders or support big-bore performance builds. Cross-reference kit number: 3268KD. Wrist pin diameter: 22mm.
