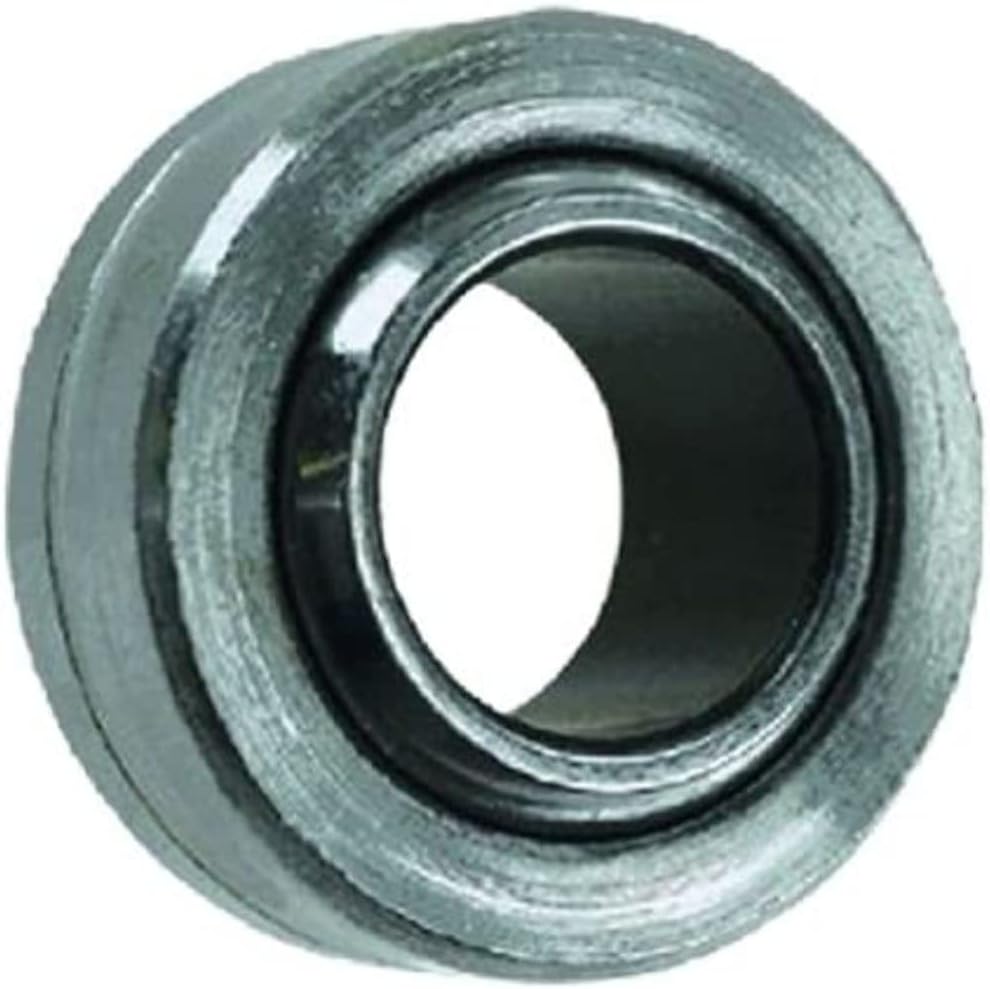

QA1 SIB10 Spherical Rod End Bearing 5/8 Inch Bore Steel

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

SIB10
6 reviews
Sale Price

$20.77

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 SIB10 Spherical Bearing is a premium-grade commercial spherical bearing designed for high-performance suspension systems and industrial applications. Part of QA1's top-of-the-line SIB Series, this bearing offers superior wear characteristics and corrosion resistance compared to traditional carbon steel alternatives.

Construction and Materials:

  • Ball constructed from precision-ground 52100 bearing steel, heat-treated and hard chrome plated for maximum durability
  • Stainless steel race with heat treatment and oil coating for corrosion resistance
  • Metal-to-metal bearing design for high load capacity
  • 0.625 inch (5/8") inner ball diameter

Technical Specifications:

  • Receiver Race Diameter: 1.3125 inches
  • Inner Ball Width: 0.750 inches
  • Race Width: 0.562 inches
  • Rod End Ball Diameter: 1.125 inches
  • Misalignment Angle: 12 degrees
  • Ultimate Static Radial Load: 37,935 lbs

The QA1 SIB10 delivers exceptional strength and reliability for demanding automotive, racing, and industrial applications. Its precision-ground components and corrosion-resistant materials ensure long-lasting performance in harsh environments. Sold individually.

Products specifications

Approx Bearing Weight

0.17

B (+0.0015/-0.005)

0.625

Ball Dia Ref

1.125

Chamfer Reference

0.030 in.

D (+0.0000/-0.0007)

1.3125

Inner Ball Diameter (in.)

0.6250 in.

Inner Ball Width (in.)

0.750 in.

M Cham Ref

0.03

Misalign Angle

12

Notes

The bearing is alloy steel and the race is stainless steel.

O Flat Dia Ref

0.839

Quantity

Sold individually.

Race Width (in.)

0.562 in.

Receiver Race Diameter (in.)

1.3125 in.

Rod End Ball Diameter (in.)

1.125 in.

Rod End Bearing Material

Steel

Rod End Misalign Angle (degrees)

12 degrees

T (+/-0.005)

0.562

ULT. Static Radial Load (lbs.)

37,935 lbs.

UTL Radical Static

37935

W (+0.000/-0.005)

0.75

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
