BD Diesel 1062114-2 Stage Master Rebuild Kit Ford Power Stroke - E4OD 4 7.3L 1995-1997 2WD

The BD Diesel 1062114-2 Stage 4 E4OD Transmission Build-It Kit is designed for experienced builders looking to rebuild the E4OD transmission in their 1995-1997 Ford 7.3L Power Stroke 2WD trucks using the same high-performance parts BD uses in their own performance transmissions. This Stage 4 Master Rebuild Kit is engineered for high-performance applications and situations where maximum durability is essential.

Comprehensive Rebuild Solution:

The kit includes all basic rebuild parts and gaskets with added performance touches that mirror what BD installs in their complete transmission rebuilds. This master kit provides seasoned transmission builders with everything needed to restore and upgrade their E4OD transmission to handle increased power and demanding applications.

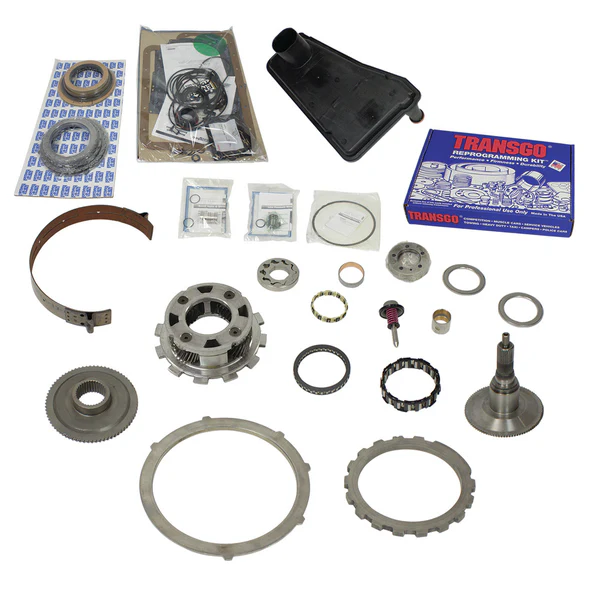

Included Components:

• Bronze bearings and snap rings
• Steel overdrive roller clutch
• Complete friction and steel plate sets (coast clutch, direct, forward, intermediate, low/reverse, and overdrive)
• Intermediate piston and intermediate sprag
• Reprogramming kit for improved shift characteristics
• Boost valve and boost valve/sleeve kit
• One-piece case bushing
• BD machined center support
• Overrun roller clutch
• Gear pump and inner race
• Intermediate band and servo piston
• Output shaft
• BD machined low/reverse pressure plate
• Rear planet and BD machined rear ring gear hub
• BD machined steel components
• Filter and complete overhaul gasket kit

Professional Builder Notes:

BD Diesel recommends pairing this kit with their heavy-duty transmission pan for increased fluid capacity and cooling. An upgraded BD valve body is also suggested for optimized shift quality and clutch holding capacity. The machined components included in this Stage 4 kit provide enhanced strength and durability compared to stock parts.

Important: Transmission Build-It Kits are not covered by warranty, as components are guaranteed to be defect-free upon receipt, but the build and function of the transmission is the sole responsibility of the builder/installer.

This product does not require an EO in California and by nature of its design, is legal for sale and use in all 50 states as replacement parts.
