Fabtech K1071DL Uniball Upper Control Arm Lift System GM - 3 14-18 1500

The Fabtech K1071DL is a premium 3-inch lift system engineered for 2014-2018 GM C/K1500 pickups equipped with factory aluminum or stamped steel upper control arms. This complete suspension system provides the clearance needed for 33-inch tires while maintaining excellent on-road manners and aggressive off-road capability.

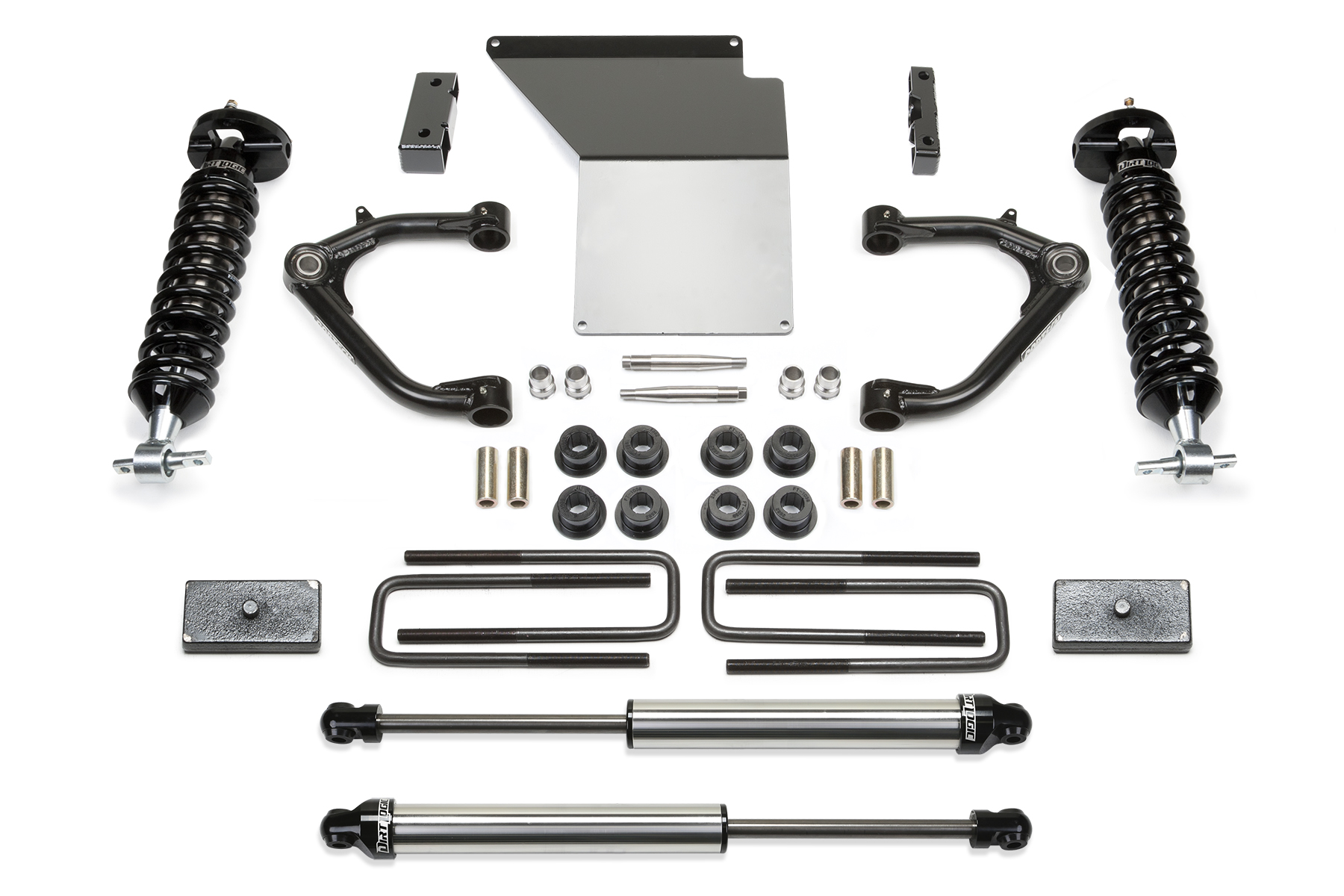

Front Suspension Components:

• Dirt Logic 2.5 coilover shocks deliver superior damping performance for both highway comfort and extreme off-road conditions
• High-strength tubular uniball upper control arms replace factory units with unrestricted articulation throughout the full suspension travel range
• Upper control arms feature .120-inch wall 4130 chromoly tubing (1.50-inch OD) with 1-inch FK stainless steel PTFE-lined uniballs for maximum durability
• Front differential drop bracket maintains proper CV axle angles at lifted ride height
• 1/4-inch thick steel skid plate protects relocated differential from trail obstacles

Rear Suspension Components:

• 1.5-inch rear lift blocks level the vehicle stance
• Dirt Logic 2.25 rear shock absorbers provide enhanced damping control over stock units
• Heavy-duty U-bolts secure the rear axle assembly

Key Benefits:

• Increased ground clearance and fender space for 33-inch tires
• Best-in-class performance for aggressive off-road use with comfortable highway ride quality
• American-made FK uniballs with PTFE lining for ultimate strength and longevity in harsh conditions
• Reversible to stock suspension configuration if needed
• Straightforward installation compared to more complex lift systems

This system represents the ideal balance between lift height, off-road capability, and daily drivability for late-model GM half-ton trucks.
