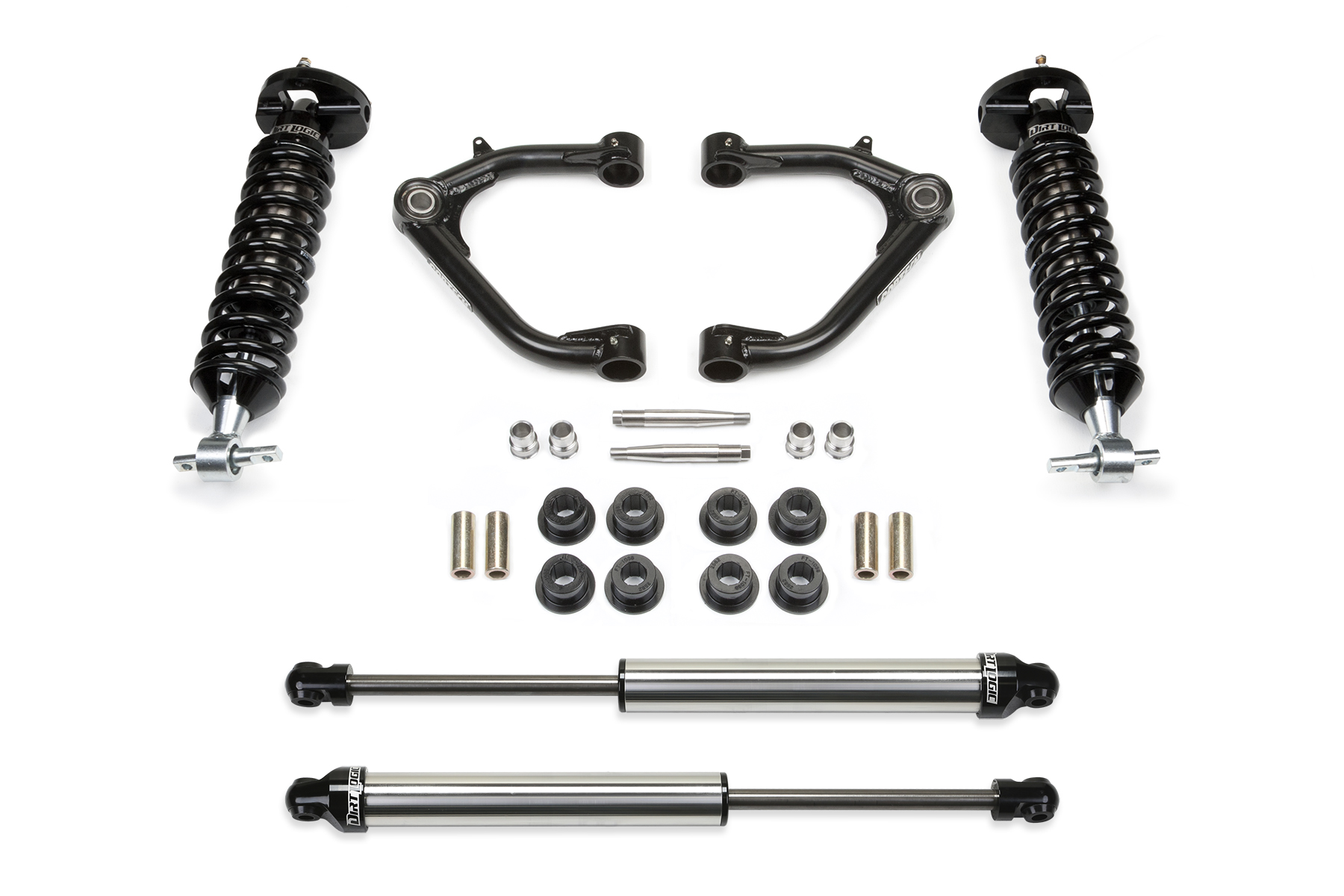

Fabtech K1069DL Upper Control Arm Lift Kit with Dirt Logic Coilovers GM - 2 2014-2018 1500

The Fabtech K1069DL is a complete 2-inch upper control arm lift kit engineered for 2014-2018 GM C/K1500 pickups equipped with factory aluminum or stamped steel upper control arms. This performance suspension system combines heavy-duty chromoly upper control arms with Dirt Logic 2.5 and 2.25 coilover shocks for enhanced off-road capability and improved alignment characteristics.

Upper Control Arm Features:

• Eliminates factory upper ball joint with super-strong 1-inch ID stainless steel American uniball for increased durability
• Built-in additional caster improves alignability and corrects problematic leveling kit alignment issues
• Constructed from .120-inch wall 4130 chromoly tubing (1.50-inch OD) with .250-inch wall DOM bushing barrels—the same materials used in Trophy Truck construction
• 17-4 stainless steel heat-treated uniball pins fit factory ball joint taper without spindle modification, allowing easy return to stock
• Chromoly construction reduces flex compared to stock arms for more positive road feel and precise handling
• 17-4 stainless steel misalignments provide long-lasting durability in harsh conditions

Dirt Logic Coilover Shocks:

• Includes Dirt Logic 2.5 and 2.25 coilover shocks for optimized damping performance
• Allows for increased wheel travel compared to factory suspension
• Provides superior control both on and off-road

This direct replacement kit is designed for suspensions requiring additional strength and alignability. The uniball design offers greater articulation than ball joints while maintaining factory mounting points for straightforward installation.
